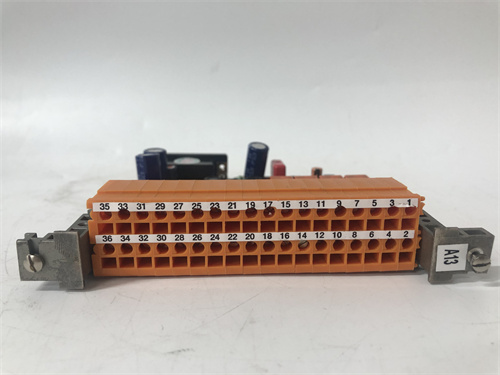

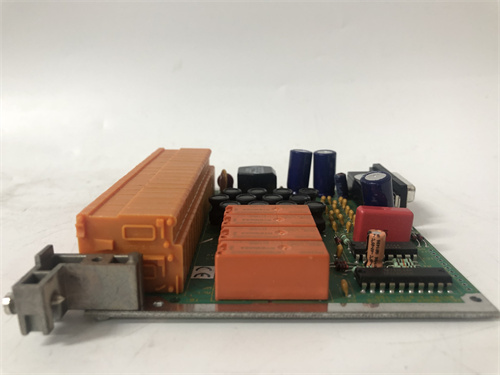

HONEYWELL 05701-A-0284

Description

Product Description

Product Parameters

• Brand/Model: HONEYWELL 05701-A-0284
• Core Input Parameters
  • Number of Channels: 8 isolated single-ended analog input channels
  • Input Signal: 0-10V DC (unipolar), -10V to +10V DC (bipolar, configurable)
  • Resolution: 16-bit (0.0015% of full scale)
  • Accuracy: ±0.02% of full scale (20°C), ±0.05% of full scale (-20°C to +60°C)
  • Input Impedance: 10MΩ (high impedance to minimize signal loading)
  • Isolation: Channel-to-channel isolation (1500V AC), channel-to-ground isolation (2500V AC)
• System & Diagnostic Parameters
  • Compatible Systems: Honeywell Experion PKS, ControlEdge PLC, Series 9000 RTU, third-party PLC/DCS (Modbus RTU/TC)
  • Diagnostic Functions: Overrange/underrange alerts, short circuit detection, sensor power loss monitoring, self-test
  • Configuration: DIP switches (range selection) + software calibration (Honeywell Engineering Tools)
• Environmental & Physical Parameters
  • Operating Temperature: -40°C ~ +70°C
  • Storage Temperature: -40°C ~ +85°C
  • Vibration Resistance: 5g (10-2000Hz, IEC 60068-2-6 standard)
  • Shock Resistance: 30g (11ms half-sine wave)
  • Power Supply: 24V DC (18-32V) ±10%, power consumption ≤ 10W
  • Protection Grade: IP20 (cabinet installation)
  • Installation Method: DIN 35mm rail mounting (panel-mount optional)
  • Dimensions: 120mm × 70mm × 30mm (compact DIN-rail form factor)

Advantages & Features

1. High-Accuracy Voltage Measurement: With 16-bit resolution and ±0.02% full-scale accuracy, HONEYWELL 05701-A-0284 delivers precise 0-10V/-10V to +10V signal acquisition—critical for applications requiring tight process control (e.g., HVAC temperature regulation, water level monitoring).
2. High Input Impedance & Isolation: 10MΩ input impedance prevents signal loading from sensors, while full channel-to-channel/ground isolation (1500V AC/2500V AC) eliminates cross-talk and fault propagation in noisy industrial environments.
3. Wide Compatibility & Hot-Swap Support: The module integrates with Honeywell’s control systems and third-party platforms via Modbus, and hot-swappable installation allows replacement without system shutdown—reducing maintenance downtime.
4. Surge Protection & Diagnostics: Built-in surge protection (up to 2kV) safeguards against electrical transients, while overrange/short circuit detection enables proactive maintenance to prevent process disruptions.

Application Fields & Cases

1. Water/Wastewater Treatment Plant: A municipal wastewater treatment plant deployed HONEYWELL 05701-A-0284 modules to measure 0-10V signals from level transmitters (clarifier tanks) and pH sensors (aeration basins). The module’s high input impedance ensured accurate readings from low-power sensors, while diagnostics detected a short circuit in a pH sensor cable.
2. HVAC Building Automation: A commercial office building integrated HONEYWELL 05701-A-0284 into its ControlEdge PLC system to monitor 0-10V signals from temperature/humidity sensors and damper position controllers. The module’s accuracy enabled precise HVAC regulation, reducing energy consumption by 15%.
3. Food/Beverage Processing Line: A beverage manufacturer used HONEYWELL 05701-A-0284 to acquire 0-10V signals from flow meters (syrup dosing) and pressure sensors (bottling lines). The module’s isolation and surge protection prevented signal interference from nearby motors, ensuring consistent product quality.

Competitor Comparison

Selection Suggestions & Precautions

1. Selection Suggestions: HONEYWELL 05701-A-0284 is ideal for users requiring high-accuracy 0-10V/-10V to +10V input with channel isolation (e.g., water treatment, HVAC, food processing). For Siemens TIA users, SM 331 AI Module is preferred; Allen-Bradley 1734-IE4V suits Rockwell systems (note: 4 channels only).
2. Precautions:
   • Configure input range (unipolar/bipolar) via DIP switches and software to match connected sensors—incorrect range settings will cause measurement errors or overrange alerts.
   • Use shielded twisted-pair cables for 0-10V wiring to minimize EMI interference, especially in areas with high electrical noise (e.g., near VFDs or switchgear).
   • Ensure proper grounding of the module and sensors to prevent ground loops, which can corrupt voltage signals and trigger false diagnostics.
   • Perform annual calibration (per Honeywell recommendations) to maintain accuracy, especially in applications with strict process control requirements (e.g., food dosing systems).
   • Verify the module’s IP20 rating—install only in enclosed control cabinets to protect against dust and moisture.
