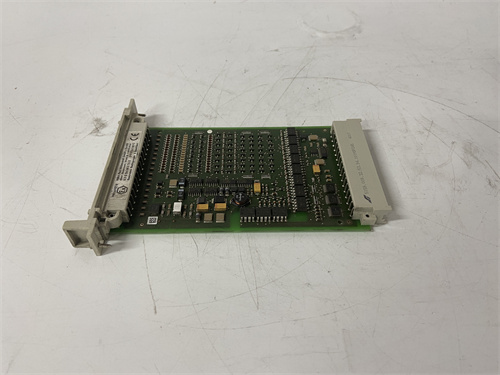

HIMA F3422

Description

1. Product Overview

2. Product Parameters

2.1 Core Output Specifications

• Output Channels: 4 isolated analog output channels (1 channel per group, galvanic isolation between channels)
• Output Type: 4-20mA (loop-powered or source-powered), configurable 0-20mA/0-10V DC (optional)
• Output Range Accuracy: ±0.1% of full scale (4-20mA), ±0.05% linearity
• Output Resolution: 16-bit (0.39µA step for 4-20mA)
• Load Capacity: Up to 1000Ω (4-20mA at 24V DC supply), short-circuit protected
• Isolation Rating: 1000V AC between channels, 2500V AC between module and backplane

2.2 Electrical & Communication Parameters

• Power Supply: 24V DC (supplied by HIMA SIS rack), power consumption ≤8W
• Backplane Interface: HIMA SafetyBUS p (HIMax) or Ethernet (HIMatrix), 100Mbps full-duplex
• Diagnostic Features: Open-loop detection, short-circuit detection, overrange/underrange alerts, module self-test (BIT), fault status feedback to host system
• Update Rate: ≤1ms per channel (signal refresh time)
• Calibration: Automatic self-calibration (every 24 hours) or manual calibration via Safety Workbench software

2.3 Environmental & Mechanical Parameters

• Operating Temperature: -20°C to +60°C (industrial-grade range)
• Storage Temperature: -40°C to +85°C
• Relative Humidity: 5% to 95% (non-condensing), IP20 protection
• Vibration Resistance: 5-2000Hz, 2g (IEC 60068-2-6, X/Y/Z axes)
• Shock Resistance: 15g (11ms half-sine wave, IEC 60068-2-27)
• Mounting: HIMA HIMax/HIMatrix rack-mounted, hot-swappable (plug-in module)
• Dimensions: 48mm (W) × 220mm (H) × 180mm (D), standard rack compatibility

2.4 Certifications & Compatibility

• Safety Certifications: SIL 3 (IEC 61508/61511), TÜV Rheinland, ATEX Zone 2 (Ex nA IIC T4)
• Industry Certifications: CE, UL/cUL Class 1 Div 2, FCC Class A, RoHS
• Compatibility: HIMA HIMax H51q/H81 controllers, HIMatrix F65/F75 modules, HIMA SafetyBUS p networks, 4-20mA/0-10V field devices
• MTBF: ≥1,000,000 hours (per Telcordia SR-332 standards)

3. Advantages & Features

1. SIL 3 Precision Control: HIMA F3422 delivers ±0.1% full-scale accuracy and 16-bit resolution, ensuring precise analog signal output for critical process control (e.g., valve positioning, fuel flow regulation) in safety-critical systems.
2. Channel-to-Channel Isolation: 1000V AC isolation between channels prevents cross-talk and electrical interference, ensuring reliable signal transmission even in noisy industrial environments (e.g., near high-voltage equipment or VFDs).
3. Comprehensive Diagnostics: Open-loop/short-circuit detection and self-calibration features provide real-time visibility into module health, enabling predictive maintenance and reducing the risk of process disruptions caused by faulty analog outputs.
4. Hot-Swappable & Redundancy-Ready: HIMA F3422 supports hot-swapping in live SIS systems and integrates with HIMA’s 1oo2/2oo3 fault-tolerant architectures, minimizing downtime for maintenance and eliminating single points of failure.
5. Flexible Output Configuration: The module’s ability to switch between 4-20mA, 0-20mA, and 0-10V DC outputs makes HIMA F3422 compatible with a wide range of field devices, reducing the need for multiple module types and simplifying system design.

4. Application Fields & Cases

4.1 Application Fields

• Oil & Gas: Pipeline flow control valve actuation, wellhead pressure regulation, LNG plant cryogenic pump speed control
• Petrochemical: Refinery distillation column temperature/pressure control, reactor feed rate modulation, storage tank level control
• Power Generation: Gas turbine fuel flow regulation, boiler steam pressure control, wind turbine pitch control
• Chemical: Batch reactor temperature control, mixing speed regulation, hazardous material dosing pump control

4.2 Typical Cases

1. Refinery Distillation Column Control: A European refinery deployed HIMA F3422 modules in its HIMax SIS to control 16 flow control valves across 4 distillation columns. The module’s ±0.1% accuracy ensured precise pressure regulation, reducing product waste by 5% and improving column efficiency by 8%.
2. Gas Turbine Fuel System Regulation: A U.S. power plant integrated HIMA F3422 into its HIMatrix SIS to modulate fuel supply to gas turbines. The module’s fast update rate (≤1ms) and fault detection features prevented fuel flow anomalies, reducing turbine downtime by 20% and extending maintenance intervals.
3. Chemical Reactor Temperature Control: A German chemical plant used HIMA F3422 to regulate heating systems in batch reactors. The module’s open-loop detection identified a faulty temperature control valve, triggering an automatic shutdown and preventing a potential reactor overheating incident that could have cost $2M in equipment damage.

5. Competitive Comparison

6. Selection Suggestions & Precautions

6.1 Selection Suggestions

1. Safety Level & Precision Needs: Choose HIMA F3422 for SIL 3 applications requiring high-precision analog control (e.g., turbine fuel systems, reactor temperature control); for SIL 2 applications, consider HIMA’s F3420 module or competitor SIL 2 products.
2. Isolation & Environment Requirements: Select HIMA F3422 for noisy industrial environments or systems requiring channel-to-channel isolation; standard AO modules lack this protection and may suffer from signal interference.
3. System Compatibility: Opt for HIMA F3422 if integrating with HIMA HIMax/HIMatrix SIS to ensure seamless communication and redundancy support; third-party AO modules may not be SIL 3-certified or compatible with HIMA’s fault-tolerant architectures.

6.2 Precautions

1. Installation Guidelines:
   • Install HIMA F3422 in HIMA-certified racks only; use shielded twisted-pair cables (24 AWG) for analog outputs, with shielding grounded at the rack end to minimize EMI.
   • Ensure load resistance does not exceed 1000Ω (for 4-20mA outputs) to avoid signal degradation or module damage.
2. Configuration Notes:
   • Configure output range (4-20mA/0-10V) and fault responses (e.g., hold last value, safe state) via HIMA Safety Workbench software to match field device requirements.
   • Enable automatic self-calibration to maintain accuracy over time—disable only for manual calibration procedures.
3. Troubleshooting:
   • For signal drift: Check cable shielding, verify load resistance, and trigger manual calibration via Safety Workbench; replace the module if drift exceeds ±0.2% full scale.
   • For open-loop/short-circuit alerts: Inspect field device wiring, test valve/actuator functionality, and verify module power supply.
   • Hot-swapping: Follow HIMA procedures (deactivate the module via software) to avoid signal spikes during replacement in redundant systems.
4. Maintenance:
   • Perform manual calibration every 2 years (in addition to automatic self-calibration) using a calibrated signal generator to ensure compliance with safety requirements.
   • Inspect connector pins and backplane contacts annually for corrosion; clean with HIMA-approved contact cleaner to preserve signal integrity.
   • Stock spare HIMA F3422 modules for critical applications—lead times for SIL 3-certified analog modules may exceed 6 weeks.
