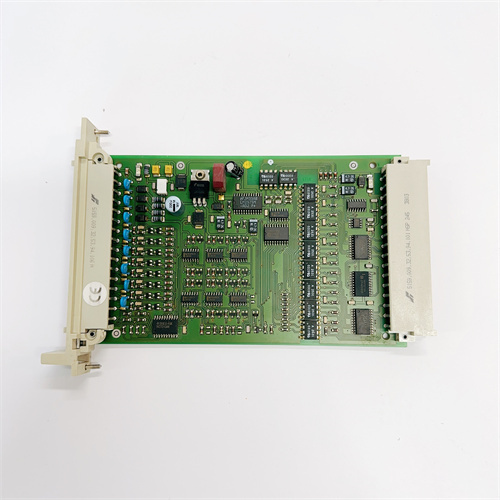

HIMA F3211

Description

1. Product Overview

2. Product Parameters

2.1 Core Input Specifications

• Input Channels: 16 isolated digital input channels (2 channels per group, galvanic isolation between groups)
• Input Type: Dry contact (NO/NC), wet contact (24V DC), TTL-compatible signals (0-5V DC)
• Input Voltage Range: 18-30V DC (wet contact), 0-5V DC (TTL)
• Response Time: ≤2ms (signal detection to backplane transmission)
• Isolation Rating: 500V AC between channels (group-to-group), 2500V AC between module and backplane

2.2 Electrical & Communication Parameters

• Power Supply: 24V DC (supplied by HIMA SIS rack), power consumption ≤8W
• Backplane Interface: HIMA SafetyBUS p (for HIMax) or Ethernet (for HIMatrix), 100Mbps
• Diagnostic Features: Open-circuit detection, short-circuit detection, channel fault status feedback, module self-test (BIT), LED status indicators
• Input Logic: Configurable (normally open/normally closed, positive/negative logic)
• Redundancy Support: Compatible with HIMA’s 1oo2 (one-out-of-two) and 2oo3 (two-out-of-three) fault-tolerant architectures

2.3 Environmental & Mechanical Parameters

• Operating Temperature: -20°C to +60°C (industrial-grade range)
• Storage Temperature: -40°C to +85°C
• Relative Humidity: 5% to 95% (non-condensing), IP20 protection
• Vibration Resistance: 5-2000Hz, 2g (IEC 60068-2-6, X/Y/Z axes)
• Shock Resistance: 15g (11ms half-sine wave, IEC 60068-2-27)
• Mounting: HIMA HIMax/HIMatrix rack-mounted, hot-swappable (plug-in module)
• Dimensions: 48mm (W) × 220mm (H) × 180mm (D), standard rack compatibility

2.4 Certifications & Compatibility

• Safety Certifications: SIL 3 (IEC 61508/61511), TÜV Rheinland, ATEX Zone 2 (Ex nA IIC T4)
• Industry Certifications: CE, UL/cUL Class 1 Div 2, FCC Class A, RoHS
• Compatibility: HIMA HIMax H51q/H81 controllers, HIMatrix F65/F75 modules, HIMA SafetyBUS p networks
• MTBF: ≥1,000,000 hours (per Telcordia SR-332 standards)

3. Advantages & Features

1. SIL 3 Fault Tolerance: HIMA F3211 is certified for SIL 3 applications, supporting HIMA’s redundant SIS architectures to eliminate single points of failure—critical for safety-critical systems where signal detection errors could lead to catastrophic incidents.
2. Isolated Channel Design: Galvanic isolation between channel groups prevents cross-channel interference and protects against electrical faults, ensuring reliable operation in noisy industrial environments (e.g., refineries, chemical plants).
3. Fast Response Time: With ≤2ms signal detection and transmission, HIMA F3211 enables immediate safety actions (e.g., ESD activation) in response to hazardous process conditions, minimizing the risk of equipment damage or human harm.
4. Hot-Swappable & Easy to Maintain: HIMA F3211 is hot-swappable in HIMA SIS racks, allowing module replacement without shutting down the safety system. Front-panel LED indicators simplify troubleshooting, reducing maintenance time and costs.
5. Wide Environmental Compatibility: The -20°C to +60°C operating temperature range and robust vibration/shock resistance make HIMA F3211 suitable for deployment in harsh environments, from offshore platforms to desert refineries.

4. Application Fields & Cases

4.1 Application Fields

• Oil & Gas: ESD system sensor input (pressure/level switches), pipeline leak detection, offshore platform emergency stop monitoring
• Petrochemical: Refinery fire/gas detection systems, burner management system (BMS) input, reactor safety interlock monitoring
• Power Generation: Nuclear power plant safety switch input, fossil fuel power plant boiler interlocks, wind turbine emergency stop detection
• Chemical: Hazardous material processing safety interlocks, batch reactor limit switch monitoring, fire suppression system trigger detection

4.2 Typical Cases

1. Refinery ESD System: A major European refinery deployed HIMA F3211 modules in its HIMax SIS to monitor 128 safety switches (pressure, level, emergency stop) across 4 process units. The modules’ fast response time (≤2ms) ensured immediate detection of a pressure switch trip in a hydrocracking unit, triggering an emergency shutdown and preventing a catastrophic release of hydrocarbons.
2. LNG Plant Fire/Gas Detection: An Australian LNG plant integrated HIMA F3211 into its HIMatrix SIS to process signals from 64 flame and gas sensors. The modules’ isolation and diagnostic features identified a faulty gas sensor wiring short, allowing maintenance crews to repair the issue before it caused a false alarm or missed detection. Over 2 years of operation, the system achieved 100% reliability in hazard detection.
3. Nuclear Power Plant Safety Loops: A North American nuclear power plant used HIMA F3211 to monitor safety interlocks in auxiliary cooling systems. The modules’ SIL 3 certification and compatibility with HIMA’s 2oo3 architecture met strict regulatory requirements, ensuring reliable operation in the plant’s harsh environment.

5. Competitive Comparison

6. Selection Suggestions & Precautions

6.1 Selection Suggestions

1. Safety Level & Redundancy: Choose HIMA F3211 for SIL 3 applications requiring fault-tolerant signal detection (e.g., refinery ESD, nuclear safety loops); for SIL 2 applications, consider HIMA’s F3210 module or competitor SIL 2 products.
2. Environmental & Response Needs: Select HIMA F3211 for extreme temperature environments or applications requiring fast response times (≤2ms); standard modules suffice for controlled indoor settings with non-critical response requirements.
3. System Compatibility: Opt for HIMA F3211 if integrating with HIMA HIMax/HIMatrix SIS systems to ensure seamless communication and diagnostics; third-party modules may require additional interface hardware.

6.2 Precautions

1. Installation Guidelines:
   • Install HIMA F3211 in HIMA HIMax/HIMatrix racks only; ensure proper grounding (≤4Ω) to minimize electromagnetic interference (EMI).
   • Use shielded twisted-pair cables for wet contact inputs, with shielding grounded at the sensor end to reduce noise.
2. Configuration Notes:
   • Configure input logic (NO/NC, positive/negative) via HIMA’s Safety Workbench software to match field device specifications (e.g., NC for emergency stop buttons).
   • Enable diagnostic features (open/short-circuit detection) during setup to ensure early fault identification.
3. Troubleshooting:
   • For missing inputs: Check sensor wiring, input voltage, and module LED status; use Safety Workbench to verify backplane bus communication.
   • For false inputs: Inspect for EMI (reposition cables away from power lines) or faulty sensors; replace degraded components.
   • Hot-swapping: Follow HIMA procedures (deactivate the module via Safety Workbench) to avoid disrupting redundant systems.
4. Maintenance:
   • Inspect connector pins and backplane contacts annually for corrosion or wear; clean with approved contact cleaner if needed.
   • Test input channels with a calibrated signal generator every 2 years to verify response time and accuracy.
   • Stock spare HIMA F3211 modules for critical applications to minimize downtime in case of failure.
