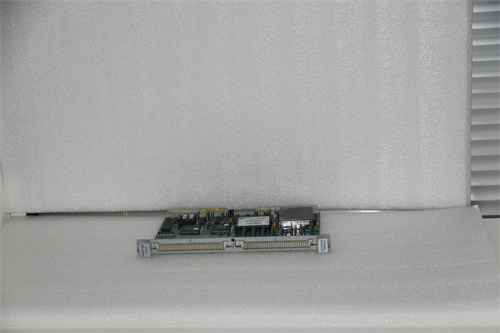

GE VMIVME-3122-020

Description

Parameters and Specifications

• Brand: GE (General Electric)
• Model: VMIVME-3122-020
• A/D Converter Range: ±2.5 V, ±5 V, ±10 V, 0 to +5 V, 0 to +10 V
• Programmable Channel Gain: x1 or x1
• Data Buffer: 16 to 1,024 word dual-port data buffer
• Data Space: Supports short I/O (A16), standard (A24), or extended (A32) data space operation
• Scan Rate: 381 Hz to 100 kHz (high-performance option), 381 Hz to 50 kHz (standard performance option)

Series

• VMIVME-3122-020 is a part of the VMIVME series of products from GE.

Features

• High-Performance: Provides 16-bit digital resolution for excellent dynamic range and analog input channel density
• Flexible Configuration: Supports various operation modes, including automatic scanning, data burst, and external synchronization
• Multiple Input Ranges: Supports multiple A/D converter ranges to meet different measurement needs
• Programmable Gain: Allows for adjusting the gain of individual channels to optimize signal measurement
• Data Buffer: Large dual-port data buffer for efficient data handling
• Compatibility: Designed to directly connect with VMIC signal conditioning boards for digitizing thermocouple, RTD, and strain gauge outputs

Applications

• VMIVME-3122-020 is a high-performance analog-to-digital converter board that is suitable for various industrial automation and measurement applications where precise analog signal digitization is required
