Description

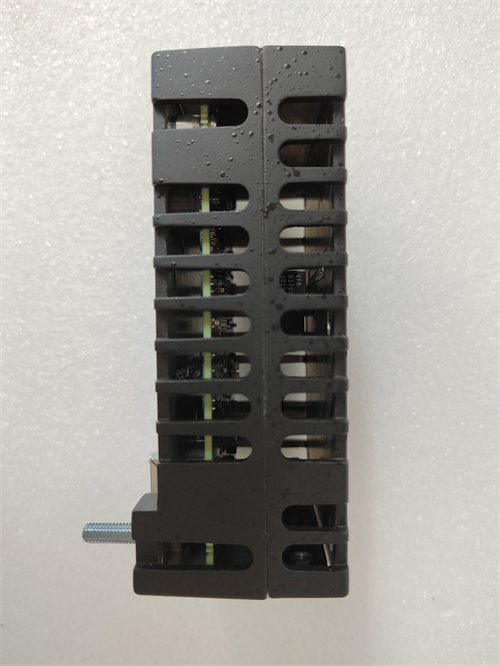

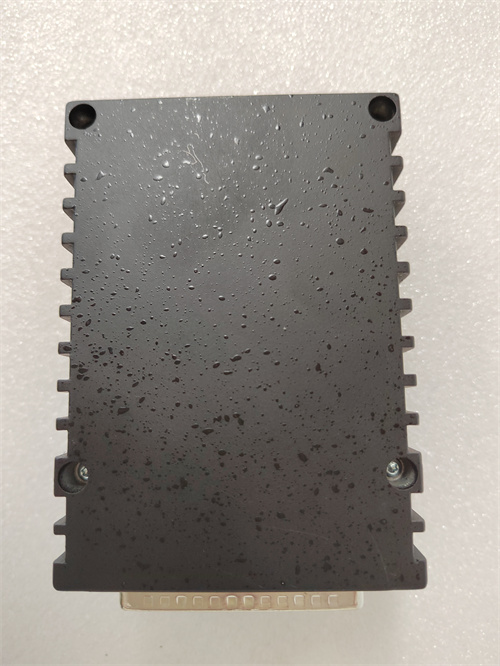

GE IS220PRTDH1BC 336A5026ADP13 is a high-performance RTD input module under GE’s PACSystems RX3i and Mark VIe Speedtronic product lines, specializing in precise temperature signal acquisition and processing for industrial automation systems. GE IS220PRTDH1BC 336A5026ADP13 collects signals from resistance temperature sensors (RTDs) such as Pt100 and Pt1000, converting analog temperature data into digital signals for real-time transmission to upper-level PLC/DCS systems. GE IS220PRTDH1BC 336A5026ADP13 supports seamless integration with GE’s PACSystems RX3i, Mark V, and Mark VIe Speedtronic control platforms, as well as process protection systems in power plants and refineries. GE IS220PRTDH1BC 336A5026ADP13 features built-in digital filtering and self-diagnostic functions, minimizing noise interference and enabling quick fault identification in harsh industrial environments. GE IS220PRTDH1BC 336A5026ADP13 adopts a modular design with plug connections, facilitating easy installation, maintenance, and hot-swapping without system shutdown.
Technical Parameters GE IS220PRTDH1BC 336A5026ADP13
| Parameter | Value |
|---|---|
| Product Model | GE IS220PRTDH1BC 336A5026ADP13 (RTD Input Module for PACSystems RX3i/Mark VIe) |
| Core Function | RTD temperature signal acquisition, analog-to-digital conversion, real-time data transmission |
| Supported Sensors | Pt100, Pt1000, and other standard RTDs |
| Measurement Range | -50°C to +150°C (sensor-dependent) |
| Measurement Accuracy | ±0.5°C |
| Input Channels | Multiple channels (compatible with PACSystems RX3i series specifications) |
| Output Signal | 4-20mA analog signal |
| Power Supply | 24V DC |
| Communication Interface | RS485; compatible with GE CoreBus |
| Operating Temperature | -40°C to +85°C |
| Storage Temperature | -40°C to +125°C |
| Protection Rating | IP65 |
| Installation Method | Flange mounting, 35mm DIN rail mounting (industrial standard) |
| Dimensions | Φ20mm × 100mm (sensor part); modular form factor (control unit) |
| Weight | Approximately 0.5kg (total assembly) |
| Compatibility | GE PACSystems RX3i, Mark V, Mark VIe Speedtronic systems; process protection control systems |
| Certifications | CE, industrial safety compliance |
Advantages and Features GE IS220PRTDH1BC 336A5026ADP13
- High-Precision Temperature Measurement: Equipped with high-accuracy ADC and digital filtering, ensuring stable and reliable data acquisition with ±0.5°C precision for critical industrial processes.
- Native GE System Compatibility: Seamless integration with GE’s mainstream control platforms eliminates configuration conflicts, simplifying system upgrades and expansion.
- Robust Environmental Adaptability: IP65 protection rating and -40°C to +85°C operating temperature range enable stable operation in humid, dusty, or extreme temperature conditions.
- Easy Maintenance & Diagnostics: Self-diagnostic functions and plug-in design allow quick fault detection and module replacement, reducing downtime and maintenance costs.
- Versatile Application Support: Compatible with common RTD types and 4-20mA output, adapting to temperature monitoring needs in power, chemical, metallurgical, and building automation sectors.
Application Cases
- Power Generation Industry: A thermal power plant integrated GE IS220PRTDH1BC 336A5026ADP13 into its boiler temperature monitoring system, collecting data from RTD sensors on steam pipelines. Its high precision and GE Mark VIe compatibility ensured optimal combustion control, improving energy efficiency by 8%.
- Chemical Processing: A petrochemical plant deployed GE IS220PRTDH1BC 336A5026ADP13 to monitor reactor temperature, leveraging its IP65 protection and anti-interference capabilities to withstand corrosive and dusty environments. The module’s reliable signal transmission reduced process fluctuations by 15%.
- Building Automation: A large commercial complex used GE IS220PRTDH1BC 336A5026ADP13 for centralized temperature control across HVAC systems. Its modular design and easy integration with GE control platforms simplified maintenance, cutting operational costs by 12%.
Comparison with Competitors
| Parameter | GE IS220PRTDH1BC 336A5026ADP13 | Siemens SM 331 (RTD Input Module) | Rockwell 1756-IR6I |
|---|---|---|---|
| Module Type | RTD input module | RTD input module | RTD input module |
| Measurement Accuracy | ±0.5°C | ±0.8°C | ±0.6°C |
| Protection Rating | IP65 | IP20 | IP20 |
| Compatibility | GE PACSystems/Mark series | Siemens S7-300/400 series | Rockwell ControlLogix |
| Key Advantage | GE ecosystem integration, IP65 protection, high precision | Siemens system maturity, wide application base | Rockwell platform optimization, multi-channel density |
Selection Recommendations
- Choose GE IS220PRTDH1BC 336A5026ADP13 for existing GE automation systems (PACSystems RX3i, Mark V/VIe) to ensure seamless integration and reduce configuration complexity.
- Prefer GE IS220PRTDH1BC 336A5026ADP13 for harsh environment applications (chemical plants, outdoor power facilities) due to its IP65 protection and wide temperature adaptability.
- Use GE IS220PRTDH1BC 336A5026ADP13 for high-precision temperature monitoring needs in power generation, petrochemical, or metallurgical processes where measurement accuracy is critical.
- Opt for GE IS220PRTDH1BC 336A5026ADP13 if easy maintenance and plug-and-play functionality are priorities, especially for systems requiring minimal downtime during upgrades.
Precautions
- Ensure the power supply matches the 24V DC requirement to avoid damage to GE IS220PRTDH1BC 336A5026ADP13’s internal circuitry.
- Use cables with proper insulation for RTD connections, adhering to local electrical codes to prevent signal interference or short circuits.
- Regularly inspect the module’s sealing and connectors to maintain IP65 protection performance, especially in humid or corrosive environments.
- Calibrate the module periodically according to GE’s recommended procedures to preserve its ±0.5°C measurement accuracy over long-term use.
