GE IS200TBCIH2CAA

Description

Introduction to the GE IS200TBCIH2CAA

Product Description

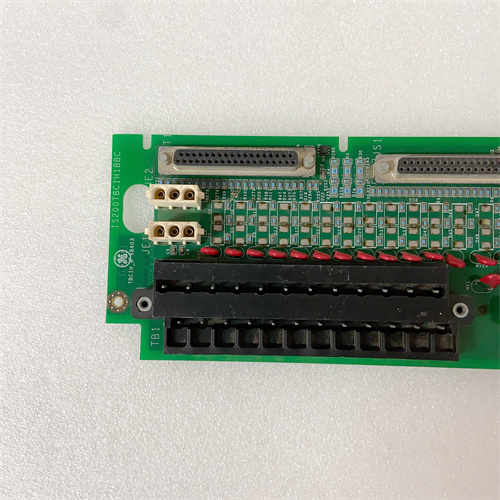

The GE IS200TBCIH2CAA is a critical turbine control I/O module from the Mark VI and Mark VIe series, a cornerstone of GE’s Speedtronic family for gas and steam turbine management. This specific module is a Termination Board or I/O Pack Interface board, designed for the acquisition of Burner Control and Flame Detection signals. The GE IS200TBCIH2CAA serves as the primary interface between flame scanners, burner valves, ignitors, and other combustion-related devices and the central Mark VI/e controller. It provides secure termination, signal conditioning, and isolation for these critical safety and control signals, ensuring reliable data acquisition for the burner management system (BMS). The accurate and timely information processed by the IS200TBCIH2CAA is essential for safe start-up, continuous monitoring, and emergency shutdown of the turbine’s combustion system.

Product Parameters

• Product Series: GE Mark VI / Mark VIe Speedtronic System

• Board Model: IS200TBCIH2CAA

• Module Type: Burner Control & Flame Detection I/O Termination Board

• Function: Interfaces flame scanner signals (UV/IR detectors) and burner/ignitor control outputs.

• Inputs: Accepts signals from flame detectors, typically low-voltage or contact signals indicating flame presence/absence.

• Outputs: Provides conditioned control signals to ignitor transformers and fuel valve solenoids for pilot and main burners.

• Channels: Contains multiple dedicated channels for flame inputs and burner outputs.

• Isolation: Provides electrical isolation to protect the controller from high-voltage transients and noise from the combustion field.

• Connectivity: Features robust screw terminal blocks for field wiring and a multi-pin connector for integration into the TBCI I/O pack or rack backplane.

• Safety Relevance: A critical component of the safety instrumented function (SIF) for flame detection and fuel shutoff.

Advantages and Features

The primary advantage of the GE IS200TBCIH2CAA is its dedicated, system-integrated design for the critical function of combustion monitoring and control. It centralizes and organizes all combustion-related I/O in one location, simplifying wiring, testing, and troubleshooting. The board’s design emphasizes signal integrity and noise immunity, which is crucial for reliable flame detection in an electrically noisy environment near high-voltage ignitors. Its rugged construction ensures reliable operation in the high-temperature and high-vibration area near the turbine combustor. As a genuine GE component, the IS200TBCIH2CAA guarantees compatibility, performance, and diagnostic integration within the Mark VI/e system, which is essential for the certified safety functions of the burner management system.

Application Cases in Industry

This termination board is used exclusively in power generation for the control and safety systems of gas turbines. Its sole application is within the combustion control and burner management system. The GE IS200TBCIH2CAA interfaces with flame scanners in each combustion can to detect the presence of pilot and main flame. It also provides the output circuits that energize the high-voltage ignition transformers and the fuel solenoid valves. A failure or fault in this board can lead to a failure to light off, a false flame loss trip, or, in a worst-case scenario, an unsafe fuel condition.

Comparison with Competing Products

Competing products are burner management I/O interfaces from other turbine control OEMs like Siemens (SPPA-T3000) and Woodward (NetCon). The GE IS200TBCIH2CAA is not a generic I/O card; it is a proprietary, application-specific component of the integrated GE Speedtronic Mark VI/e system. Its design is tailored to the specific flame detection technology, ignition system, and sequencing logic used by GE for its turbine models. Third-party interfaces would lack the precise signal conditioning, form factor, and backplane communication required for this tightly integrated safety function. The TBCIH2CAA is a validated part of a complete, certified combustion control solution.

Selection Suggestions and Precautions

Selection of the GE IS200TBCIH2CAA is strictly for replacement within an existing GE gas turbine’s Mark VI/e control system. The exact part number, including the suffix (H2CAA), must be matched to the unit’s original bill of materials to ensure compatibility with the specific flame scanner models, ignition system, and I/O pack configuration. It is critical to reference the unit’s original combustion control system drawings and manuals.

Precautions:

• Extreme Hazard: Work on combustion system components involves high voltage (ignition circuits) and flammable fuel. Work must only be performed by qualified personnel following strict lockout/tagout (LOTO) procedures for both electrical and fuel systems.

• The turbine must be offline, isolated from fuel, and purged. Ignition system capacitors must be fully discharged.

• Flame scanner alignment and calibration are critical; any work involving scanner wiring should be followed by a functional test of flame detection.

• After any replacement or maintenance on the IS200TBCIH2CAA or associated wiring, a full functional test of the burner management sequence (including ignition and flame detection) must be performed.

• Using an incorrect or non-genuine board can compromise combustion safety, leading to dangerous conditions such as flameouts, explosions, or uncontrolled fuel release.
