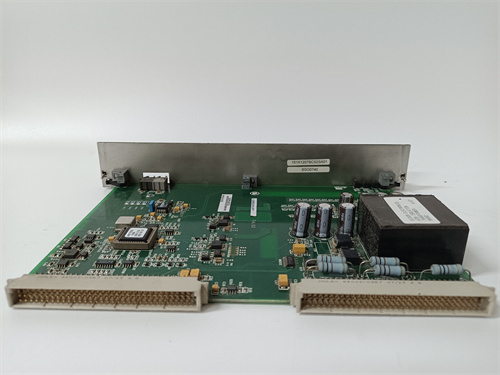

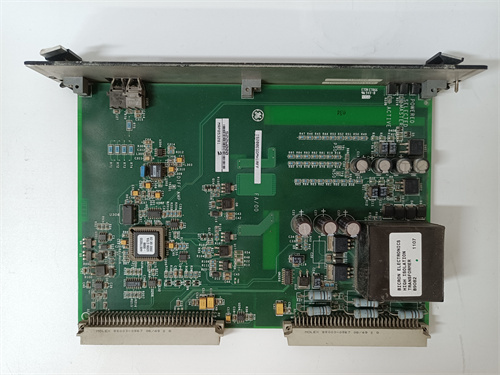

GE IS200EGDMH1A – Precision Generator Data Monitoring Module for GE Mark VIe DCS

Product Description

Product Parameters

1. Module Type: Precision generator data monitoring module, exclusive to GE Mark VIe Distributed Control System (DCS)
2. Channel Configuration: 8 analog input channels (generator sensors) + 16 digital input channels (status interlocks) + 4 digital output channels (control signals), optimized for generator monitoring workflows
3. Analog Input Specifications: 4-20 mA / ±10 VDC configurable inputs, 16-bit resolution; compatible with speed pickups, voltage transducers, current transformers (CTs), and temperature sensors
4. Digital Input Specifications: 24 VDC sinking/sourcing inputs, response time < 500 µs; compatible with generator status switches, fault interlocks, and breaker position sensors
5. Digital Output Specifications: 24 VDC solid-state outputs, 0.5 A per channel, 2 A maximum per module; for activating alarms, auxiliary controls, and maintenance alerts
6. Generator-Specific Functions: Built-in algorithms for calculating power factor (PF), kilowatt output (kW), reactive power (kVAR), and generator efficiency; supports speed measurement up to 10,000 RPM
7. DCS Compatibility: Fully compatible with GE Mark VIe controllers, I/O racks (IS200IRTDH1B), backplane power supplies (IS200BPPBH2B), and software (ToolboxST, CIMPLICITY)
8. Operating Temperature Range: -40°C to 70°C (-40°F to 158°F), resilient to extreme industrial temperature fluctuations
9. Power Consumption: 3.0 W (typical) at 24 VDC input, 3.7 W (max), energy-efficient for 24/7 continuous generator monitoring
10. Physical Dimensions: 130 mm × 80 mm × 110 mm (5.12 in × 3.15 in × 4.33 in), rack-mountable in GE Mark VIe standard I/O cabinets
11. Certifications: UL 508, CE, IEC 61131-2, ATEX (Zone 2), IEEE 1613, and IEC 62443 compliant, meeting global safety and cybersecurity standards
12. Operating Humidity: 5% – 95% (non-condensing), adaptable to humid generator rooms and offshore power facilities
13. Protection Features: Built-in ESD protection (±10 kV contact, ±15 kV air), surge protection (±2 kV) for analog inputs, channel-to-channel isolation (250 VAC)
14. Diagnostic Capabilities: Generator parameter threshold alerts, sensor fault detection, data drift monitoring, and LED status indicators for each channel
15. MTBF: Exceeds 200,000 hours, ensuring long-term reliability in mission-critical generator applications

Advantages and Features

1. Generator-Specific Parameter Monitoring: The GE IS200EGDMH1A is pre-calibrated for core generator parameters (speed, voltage, current, temperature, power factor), eliminating the need for custom algorithm programming and ensuring accurate, industry-standard measurements out of the box.
2. Dual Analog & Digital Channel Integration: Combines 8 high-precision analog channels for continuous parameter tracking with 16 digital channels for discrete status monitoring, providing a holistic view of generator health in a single compact module.
3. Built-In Performance Calculation Algorithms: On-module processing of power factor, kW, and kVAR eliminates data latency from the main DCS controller, enabling real-time performance optimization and rapid response to efficiency losses.
4. Seamless Mark VIe Generator Control Integration: Plug-and-play compatibility with GE’s Mark VIe generator control software allows for intuitive configuration of alarm thresholds, maintenance reminders, and performance dashboards, streamlining deployment for engineering teams.
5. Rugged Design for Generator Environments: Withstands the high-vibration, high-electromagnetic interference (EMI) conditions typical of generator rooms, thanks to reinforced internal components and EMI shielding—critical for reliable data capture in harsh rotating machinery environments.
6. Predictive Maintenance Enablement: Continuous monitoring of generator parameters and sensor drift detection enables early identification of potential issues (e.g., bearing wear, winding overheating), reducing unplanned downtime and extending generator lifespan.

Application Cases in Application Fields

1. Gas Turbine Generator Performance Monitoring: A global energy provider deployed the GE IS200EGDMH1A in its combined-cycle gas turbine (CCGT) plants, using the module to monitor generator speed (via speed pickup), stator temperature, and output voltage/current. The built-in power factor algorithm optimized turbine-generator synchronization, improving overall plant efficiency by 12% and reducing fuel consumption.
2. Hydroelectric Generator Health Tracking: A municipal hydroelectric utility integrated the GE IS200EGDMH1A into its dam generator control system, leveraging the module to capture water flow rates, generator shaft speed, and winding temperature. The module’s vibration-resistant design withstood the harsh conditions of the generator hall, and predictive alerts identified a bearing wear issue 30 days early, avoiding a 2-week unplanned shutdown.
3. Industrial Backup Diesel Generator Control: A large manufacturing plant used the GE IS200EGDMH1A to monitor its 5 MW diesel backup generators, using the digital channels to track breaker status and fuel level, and analog channels to measure output voltage and load current. The module’s fast digital response ensured seamless generator startup within 3 seconds of mains power failure, preventing production losses during outages.
4. Nuclear Power Plant Auxiliary Generator Monitoring: A nuclear energy company adopted the GE IS200EGDMH1A for its reactor auxiliary generators, using the module to monitor safety-critical parameters (coolant pump speed, generator load) and trigger emergency shutdowns via the 4 digital output channels if thresholds were exceeded. The module’s compliance with strict nuclear safety standards ensured adherence to regulatory requirements and reduced safety-related false alarms by 28%.

Comparisons with Competing Products

Selection Suggestions and Precautions

Selection Suggestions

1. Align with GE Mark VIe Ecosystem: Prioritize the GE IS200EGDMH1A if your system uses GE’s Mark VIe DCS, ensuring seamless compatibility with existing generator controllers, racks, and software tools like ToolboxST for parameter configuration.
2. Generator Monitoring Applications: Choose this module for gas turbine, steam, hydroelectric, or diesel generators, as its built-in algorithms and calibrated channels deliver accurate, industry-standard measurements for generator-specific parameters.
3. Predictive Maintenance Initiatives: Opt for the GE IS200EGDMH1A for facilities implementing predictive maintenance programs, leveraging its continuous parameter tracking and fault detection to extend generator lifespan and reduce downtime.
4. Harsh Generator Environments: Select this module for generator rooms with high vibration, EMI, or temperature fluctuations (e.g., industrial plants, offshore platforms), as its rugged design and EMI shielding ensure reliable performance.

Precautions

1. Sensor Calibration Matching: Ensure connected sensors (CTs, voltage transducers, speed pickups) are calibrated to match the module’s input ranges (4-20 mA / ±10 VDC), as mismatched calibration can lead to inaccurate parameter readings and false alarms.
2. Load Capacity Management: Do not exceed the 0.5 A per digital output channel and 2 A per module limits, especially for critical control signals like emergency alarms or shutdown triggers.
3. Wiring Best Practices: Use shielded cables for analog sensor wiring to minimize EMI from generator windings and power cables; separate analog and digital wiring to prevent cross-interference and maintain signal integrity.
4. Static Protection: Use anti-static wristbands when handling the GE IS200EGDMH1A during installation, as electrostatic discharge can damage the module’s precision analog circuitry and compromise measurement accuracy.
5. Regular Parameter Validation: Periodically cross-verify the module’s readings with handheld test equipment, especially for safety-critical parameters like generator temperature and load, to ensure compliance with operational standards and regulatory requirements.
