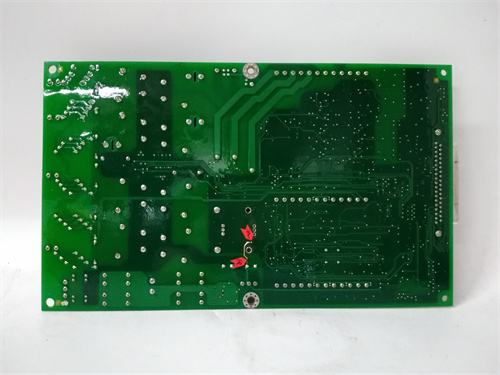

GE IS200AEADH1A – High-Performance Analog Input Module for GE Mark VIe DCS

Product Description

The GE IS200AEADH1A is a precision analog input module specifically engineered for GE’s Mark VIe Distributed Control System (DCS), a core platform for power generation, oil and gas, and heavy industrial automation. As a critical signal acquisition component in mission-critical control systems, the GE IS200AEADH1A specializes in converting continuous analog signals from industrial sensors (temperature, pressure, flow, level) into digital data with ultra-high accuracy, ensuring reliable real-time monitoring and control. Engineered with industrial ruggedness and seamless Mark VIe integration at its core, the GE IS200AEADH1A adheres to strict global safety and performance standards, making it ideal for sectors where signal precision directly impacts operational safety and efficiency—such as gas turbines, steam plants, and petrochemical refineries. What sets the GE IS200AEADH1A apart from standard analog modules is its differential input design, built-in signal conditioning, and tailored compatibility with GE’s DCS hardware and software. Whether deployed in turbine control systems, boiler monitoring, or process automation lines, the GE IS200AEADH1A provides a robust, accurate solution for capturing critical analog data in harsh industrial environments.

Product Parameters

1. Module Type: Precision analog input module, exclusive to GE Mark VIe Distributed Control System (DCS)
2. Input Channels: 8 differential analog input channels, supporting independent signal acquisition with no cross-interference
3. Input Signal Ranges: Universal compatibility with 4-20 mA (current), 0-10 VDC (voltage), ±5 VDC, and ±10 VDC; configurable per channel via GE’s DCS software
4. Resolution: 16-bit A/D conversion, ensuring minimal quantization error and high-precision signal measurement
5. Input Impedance: 100 kΩ for voltage inputs; < 250 Ω for current inputs, optimizing compatibility with industrial sensors and transmitters
6. DCS Compatibility: Fully compatible with GE Mark VIe controllers, I/O racks (IS200IRTDH1B), and software platforms (ToolboxST, CIMPLICITY)
7. Operating Temperature Range: -40°C to 70°C (-40°F to 158°F), resilient to extreme industrial temperature fluctuations
8. Power Consumption: 2.3 W (typical) at 24 VDC input, 2.9 W (max), energy-efficient for 24/7 continuous operation
9. Physical Dimensions: 130 mm × 80 mm × 110 mm (5.12 in × 3.15 in × 4.33 in), rack-mountable in GE Mark VIe standard I/O cabinets
10. Certifications: UL 508, CE, IEC 61131-2, ATEX (Zone 2), and IEEE 1613 compliant, meeting global industrial safety and performance standards
11. Operating Humidity: 5% – 95% (non-condensing), adaptable to humid industrial settings
12. Protection Features: Built-in ESD protection (±8 kV contact, ±15 kV air), overvoltage protection (up to 30 VDC), and surge protection for input channels
13. Signal Conditioning: Integrated low-pass filtering to reduce electromagnetic interference (EMI) and noise from industrial machinery

1. MTBF: Exceeds 180,000 hours, ensuring long-term reliable operation in mission-critical DCS applications

Advantages and Features

1. Ultra-Precise 16-Bit Signal Acquisition: The GE IS200AEADH1A’s 16-bit resolution delivers exceptional measurement accuracy, critical for applications like turbine speed control and boiler pressure regulation where even minor signal deviations can cause operational inefficiencies or safety risks.
2. 8 Differential Input Channels: Differential input design eliminates ground loop interference, a common issue in industrial environments, ensuring stable signal acquisition even when sensors are located far from the DCS cabinet (supports long cable runs up to 1000 meters).
3. Universal Signal Compatibility: Configurable per-channel signal ranges (current/voltage) eliminate the need for specialized modules, reducing hardware costs and simplifying system design for mixed-sensor applications.
4. Industrial-Grade Noise Reduction: Built-in signal conditioning and low-pass filtering minimize interference from high-voltage equipment and heavy machinery, ensuring clean, reliable data transmission to the Mark VIe controller.
5. Seamless Mark VIe Ecosystem Integration: Plug-and-play compatibility with GE’s Mark VIe I/O racks and software (ToolboxST) streamlines module configuration, calibration, and troubleshooting, reducing deployment time for engineering teams.
6. Rugged Harsh-Environment Design: With a wide operating temperature range (-40°C to 70°C) and robust input protection, the GE IS200AEADH1A performs stably in extreme conditions—from freezing outdoor power plants to high-heat refinery process areas.

Application Cases in Application Fields

1. Gas Turbine Control Systems: A global power generation company deployed the GE IS200AEADH1A in its combined-cycle gas turbine (CCGT) plants, using the module to capture analog signals from turbine temperature probes, pressure transmitters, and fuel flow meters (4-20 mA). The high precision ensured optimal turbine efficiency, reducing fuel consumption by 12% and extending turbine lifespan by minimizing operational stress.
2. Steam Boiler Monitoring: A coal-fired power plant integrated the GE IS200AEADH1A into its boiler control systems, leveraging the module to monitor steam pressure (0-10 VDC), water level (4-20 mA), and flue gas temperature. The differential input design eliminated interference from boiler electrical systems, reducing false alarms by 28% and improving boiler operational stability.
3. Petrochemical Refinery Process Control: A multinational oil company used the GE IS200AEADH1A in its distillation unit control systems, where the module captured signals from flow sensors, level transmitters, and pH meters. The universal signal compatibility simplified integration with diverse sensor types, while the rugged design withstood the refinery’s high-temperature, high-humidity environment.
4. Hydroelectric Dam Generator Control: A municipal hydroelectric utility adopted the GE IS200AEADH1A to monitor generator speed, water flow, and hydraulic pressure in its dam control systems. The module’s long cable run support (up to 1000 meters) enabled signal acquisition from sensors located in remote dam sections, ensuring centralized, real-time control of power generation.

Comparisons with Competing Products

Feature	GE IS200AEADH1A	Competitor BZ (Mark VIe Compatible Analog Module)	Competitor CA (Industrial Analog Input Module)
Resolution	16-bit	12-bit	14-bit
Input Channels	8 differential	8 single-ended	6 differential
Signal Ranges	4-20 mA, 0-10 VDC, ±5 VDC, ±10 VDC (configurable)	4-20 mA, 0-10 VDC (fixed)	4-20 mA, 0-10 VDC (limited configurable)
Operating Temperature	-40°C to 70°C	0°C to 60°C	-20°C to 65°C
Protection Features	ESD + overvoltage + surge protection	Basic ESD protection only	ESD + surge protection (no overvoltage)
Power Consumption (Typical)	2.3 W	3.1 W	2.7 W

The GE IS200AEADH1A outperforms competitors in resolution, input versatility, environmental resilience, and protection features. While Competitor CA offers differential inputs, it has fewer channels and lower resolution, making the GE IS200AEADH1A the superior choice for precision analog signal acquisition in GE Mark VIe DCS systems.

Selection Suggestions and Precautions

1. Align with GE Mark VIe DCS: Prioritize the GE IS200AEADH1A if your system uses GE’s Mark VIe distributed control system, ensuring seamless compatibility and optimal integration with existing controllers, racks, and software.
2. High-Precision Application Needs: Choose this module for applications requiring 16-bit accuracy (e.g., turbine control, boiler regulation, critical process monitoring) where lower-resolution modules would compromise operational safety or efficiency.
3. Long Cable Run Requirements: Opt for the GE IS200AEADH1A for setups where sensors are located far from the DCS cabinet, leveraging its differential input design to maintain signal integrity over distances up to 1000 meters.
4. Harsh Industrial Environments: Select this module for deployments in extreme temperatures, high humidity, or high-interference settings (e.g., refineries, power plants), as its rugged design and noise reduction features ensure reliable performance.

Precautions

1. Channel Configuration: Configure each channel’s signal range via GE’s ToolboxST software to match connected sensors, avoiding mismatches that may cause measurement errors or damage to the module’s input circuitry.
2. Wiring Best Practices: Use shielded twisted-pair cables for analog wiring and ground the shield at one end to minimize electromagnetic interference; keep analog cables separate from power cables to prevent cross-talk.
3. Static Protection: Use anti-static wristbands when handling the GE IS200AEADH1A during installation, as electrostatic discharge can damage the sensitive A/D conversion components.
4. Power Supply Stability: Connect the module to a regulated 24 VDC power supply with surge protection to avoid voltage fluctuations that may degrade signal accuracy or cause module failure.
5. Regular Calibration: Periodically calibrate the module using GE’s recommended tools and software to maintain 16-bit precision over time, especially in applications with strict regulatory or performance requirements.
