Description
Product Description

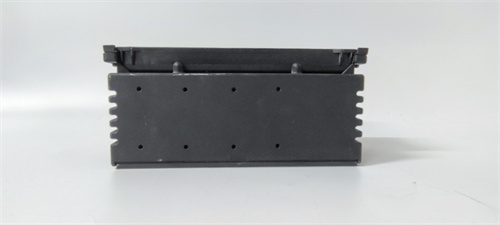

The GE IC660EPM100J, detailed further here, is an Enhanced Power Module designed for GE’s legacy Genius® I/O block system. This specialized module is not an I/O block itself, but a critical power distribution and communication component that serves as a “branch” on the Genius® bus network. The core function of the GE IC660EPM100J is to provide conditioned 24V DC power and communication signal conditioning for a cluster of up to 15 Genius® discrete or analog I/O blocks connected to it locally. It acts as an interface between the high-speed Genius® serial bus and the local blocks, simplifying wiring and improving system reliability. In a distributed Genius® network, strategically placing an IC660EPM100J allows for localized power management and signal integrity, reducing the load on the main controller’s power supply. For engineers maintaining systems built on this robust, albeit older, distributed I/O platform, the IC660EPM100J remains an essential component for ensuring stable operation of remote I/O drops.
Product Parameters
-
Manufacturer: GE (General Electric), part of the Genius® I/O System.
-
Series: Genius® Enhanced Power Module.
-
Part Number: IC660EPM100J
-
Input Voltage: 24V DC (nominal), with a specified operating range (e.g., 18-32V DC).
-
Output Power: Provides a fused and filtered 24V DC power source to connected Genius® I/O blocks.
-
Bus Connection: One Genius® bus input port (to connect upstream to another EPM or the Host Controller).
-
Local Expansion: One Genius® bus output port (to connect downstream to another EPM, creating a daisy chain).
-
Local I/O Capacity: Supports the connection of up to 15 Genius® I/O blocks via its local Genius® port.
-
Diagnostics: Features status LEDs for power (PWR), bus communication (BUS), and fault conditions.
-
Fusing: Includes internal fuses to protect both the bus communication circuit and the local power supply circuit.
Advantages and Features
-
Distributed Power Management: Allows power to be supplied locally to a group of I/O blocks, minimizing voltage drop and improving power quality at the point of use.
-
Noise Immunity and Signal Conditioning: Filters and conditions the Genius® bus signal, extending the reliable communication distance and improving noise immunity for the local I/O blocks.
-
Simplified Wiring and Diagnostics: Reduces the amount of home-run wiring needed for power and communication, creating a cleaner panel layout. Centralized status LEDs simplify troubleshooting for the local I/O group.
-
Flexible Network Expansion: Enables the creation of large, distributed I/O networks by daisy-chaining multiple IC660EPM100J units, supporting complex system architectures.
-
Robust Protection: Integrated fusing protects the sensitive Genius® bus communication and the connected I/O blocks from electrical faults on the local power circuit.
Application Cases in Application Fields
-
Automotive Manufacturing (Legacy Lines): Used in distributed panels along a transfer line or welding station to power and communicate with clusters of Genius® blocks that handle sensor inputs and solenoid outputs for tooling and robots.
-
Material Handling Systems: In large conveyor and sortation systems, an IC660EPM100J might be placed in a remote panel to manage the I/O for a specific zone, such as a merge or diverge, simplifying power distribution over long distances.
-
Food and Beverage Processing: Employed in distributed control panels across a plant floor to group I/O for specific processing units (e.g., a mixer or filler), where the sealed nature of Genius® blocks and reliable power from the EPM are beneficial.
-
Water Treatment Facilities: Used to create remote I/O drops for monitoring and controlling pump stations or chemical dosing skids, allowing for localized control and reduced main control room wiring.
Comparisons with Competing Products
Compared to distributed I/O solutions from contemporary systems like Allen-Bradley’s Remote I/O (1771 series) or Siemens’ ET 200, and modern Ethernet-based I/O, the GE IC660EPM100J and the Genius® system have specific distinctions:
-
Proprietary Bus vs. Open Network: The Genius® bus is a proprietary, high-speed serial network. Competitors often used other proprietary networks (e.g., Remote I/O, Profibus). Modern equivalents are almost exclusively Ethernet-based (EtherNet/IP, Profinet), offering higher speed and openness.
-
Architecture Philosophy: The IC660EPM100J exemplifies a “powered segment” approach within a distributed serial network. Modern Ethernet I/O typically uses unmanaged or managed Ethernet switches and separate, centralized power supplies, offering more flexibility but different design rules.
-
Diagnostics: The Genius® system, facilitated by modules like the IC660EPM100J, offered robust device-level diagnostics for its time. Modern Ethernet I/O provides far more detailed, web-based diagnostic information accessible from the engineering software.
-
Legacy Status: The Genius® platform is a legacy system. Finding new IC660EPM100J modules requires specialized aftermarket suppliers, whereas modern distributed I/O is readily available from primary distributors.
Selection Suggestions and Precautions
-
Verify System Configuration: Confirm the placement of the GE IC660EPM100J in your Genius® network map. Ensure you are not exceeding the maximum number of blocks (15) on its local drop or the total network capacity.
-
Check Power Requirements: Calculate the total 24V DC current draw of all I/O blocks and any sensors powered from the local drop to ensure the IC660EPM100J‘s power supply capacity is not exceeded. Include a safety margin.
-
Inspect Fuses Upon Failure: If a module fails, always check its internal fuses. A blown fuse may indicate a fault in a connected I/O block or field wiring, which must be resolved before replacing the fuse or the entire IC660EPM100J.
-
Use Correct Bus Terminators: Remember that each end of the Genius® bus trunk must be properly terminated. The IC660EPM100J does not provide termination itself; you must use a dedicated terminator module (like IC660TBQ002) at the physical end of the bus.
