Description
Product Description

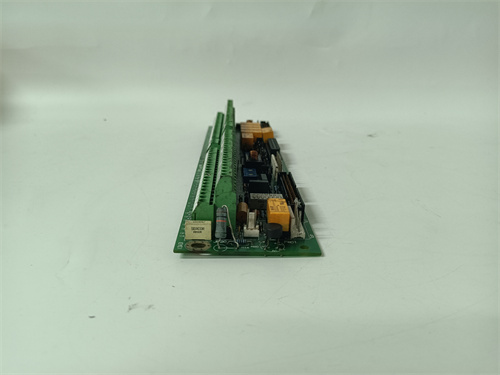

GE 531X305NTBAPG1 is an NTB/3TB terminal board designed for GE EX2000 excitation systems and 531X series drives, acting as a centralized interface for external signal-level I/O, passive interface circuitry, and power distribution. GE 531X305NTBAPG1 integrates 12 general-purpose digital inputs (24 VDC), special-purpose inputs (RESET, CONTROL ON), 7 Form-A/Form-C relay outputs (120 VAC contacts), low-level analog I/O, and encoder interfaces, with hardware jumpers for logic polarity and encoder voltage (5 VDC/15 VDC) configuration. GE 531X305NTBAPG1 supplies regulated (5 VDC, 15 VDC) and unregulated (24 VDC, 120 VAC) power, supporting diverse field devices without external converters. GE 531X305NTBAPG1 features four potentiometers for analog signal scaling and diagnostic LEDs for rapid fault isolation, with a rugged design for excitation cabinet environments. GE 531X305NTBAPG1 is a genuine GE component, ensuring native compatibility with EX2000 and 531X drives, and enabling seamless integration via its passive interface architecture. GE 531X305NTBAPG1 centralizes I/O termination to reduce wiring complexity and enhance system reliability in power generation and industrial drive applications.
Technical Parameters
- Product Type: NTB/3TB Terminal Board (EX2000/531X Series)
- Manufacturer: GE (General Electric) Boards & Turbine Control
- Model Number: GE 531X305NTBAPG1
- Digital Inputs: 12 general-purpose (24 VDC) + special-purpose (RESET, CONTROL ON)
- Relay Outputs: 7 Form-A/Form-C (120 VAC contact rating)
- Analog I/O: Low-level inputs/outputs with 4 scaling potentiometers
- Encoder Interface: Jumper-selectable 5 VDC/15 VDC
- Power Supplies: Regulated (5 VDC, 15 VDC); unregulated (24 VDC, 120 VAC)
- Logic Configuration: Hardware jumpers for positive/negative logic
- Operating Temperature: -25°C to +70°C
- Dimensions: 30.5 cm × 22.9 cm × 5.1 cm (12.0 in × 9.0 in × 2.0 in)
- Weight: 1.1 kg (2.4 lb)
- Mounting: Excitation/drive cabinet backplane compatibility
Advantages and Features
- Integrated I/O & Power: GE 531X305NTBAPG1 combines digital/analog I/O, relays, encoders, and dual power supplies in one board, eliminating external converters.
- Flexible Configuration: Jumpers for logic polarity and encoder voltage, plus potentiometers for analog scaling, adapt to diverse system requirements.
- Simplified Wiring: Centralized termination reduces cabinet clutter and installation time.
- Enhanced Diagnostics: LEDs and clear labeling enable fast fault isolation and reduce downtime.
- Native Compatibility: Seamless integration with EX2000 excitation systems and 531X drives avoids compatibility issues.
- Rugged Design: Built for harsh excitation environments with stable performance under temperature fluctuations.
Application Fields and Cases
GE 531X305NTBAPG1 is widely used in power generation (EX2000 excitation systems) and industrial drives (531X series):
- Generator Excitation Control: Interfaces with voltage regulators, field breakers, and protection relays for stable grid integration.
- Industrial Drive Systems: Controls motor starters, speed sensors, and safety interlocks for pumps, compressors, and fans.
- Power Plant Automation: Centralizes I/O for turbine auxiliary systems, improving control responsiveness and reliability.
Case Example: A Southeast Asian thermal power plant upgraded four EX2000 excitation systems with GE 531X305NTBAPG1 to replace aging terminal boards. GE 531X305NTBAPG1 centralized 12 digital inputs, 7 relay outputs, and encoder signals per unit, cutting wiring time by 35% and reducing I/O-related downtime by 40% via diagnostic LEDs. Post-installation, the plant achieved 99.97% excitation system availability and extended maintenance intervals by 24 months.
Comparison with Competing Products
| Parameter | GE 531X305NTBAPG1 | ABB Excitation Terminal Board | Siemens Drive I/O Terminal Module |
|---|---|---|---|
| I/O Integration | 12 DI, 7 RO, analog I/O, encoder, dual power | 8 DI, 4 RO, limited analog | 16 DI, 8 RO, no integrated power |
| Power Supplies | Regulated (5/15 VDC) + unregulated (24 VDC/120 VAC) | 24 VDC only | External power required |
| Configuration | Jumpers + potentiometers | Software-only | Software + dip switches |
| EX2000/531X Compatibility | Native | Requires adapter | Gateway needed |
| Diagnostics | Onboard LEDs | Basic indicators | Advanced but complex |
| Weight | 1.1 kg | 0.8 kg | 0.9 kg |
Selection Recommendations and Precautions
Selection Recommendations
- Choose GE 531X305NTBAPG1 for EX2000 excitation systems or 531X drives needing integrated I/O, power, and encoder interfaces.
- Match jumper settings to logic polarity (positive/negative) and encoder voltage (5 VDC/15 VDC) for field devices.
- Use shielded cables for analog/encoder signals to minimize noise in excitation environments.
- Deploy redundant GE 531X305NTBAPG1 in critical applications for fault tolerance.
Precautions
- Operate GE 531X305NTBAPG1 within -25°C to +70°C; avoid condensation and vibration to prevent component damage.
- Ensure correct power supply connections (regulated/unregulated) to avoid module or device failure.
- Follow ESD-safe handling during installation to protect passive interface circuitry.
- Use GE documentation for jumper/potentiometer setup; unauthorized changes may cause system malfunctions.
- Inspect LEDs regularly for fault alerts; replace the board if persistent errors occur despite troubleshooting.
