GE 369-HI-0-M-0-E-0

Description

Product Description

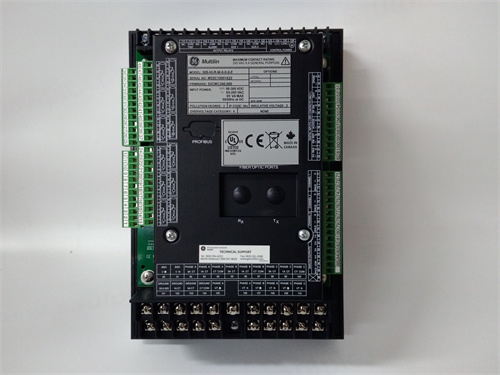

The GE 369-HI-0-M-0-E-0 is a high-performance motor protection relay from GE’s Multilin 369 series, designed specifically for the protection, monitoring, and management of medium and large induction motors in industrial applications. This versatile numerical relay is widely used in industries such as oil and gas, petrochemical, power generation, water treatment, and mining to protect critical motor-driven equipment including pumps, compressors, fans, and conveyors. The core function of the GE 369-HI-0-M-0-E-0 is to continuously monitor motor electrical and thermal parameters, detect fault conditions, and initiate appropriate protective actions to prevent motor damage and ensure reliable operation. The suffix codes in the model number indicate specific configuration options: “HI” for the power supply and housing type, “M” for the communication protocol (Modbus), and “E” for the language and other options. Engineered for the demanding environments of industrial facilities, the GE 369-HI-0-M-0-E-0 features robust construction, comprehensive protection capabilities, and user-friendly operation.

Product Parameters

• Model Number: GE 369-HI-0-M-0-E-0

• Type: Motor Protection Relay

• Series: GE Multilin 369

• Application: Protection and management of medium/large induction motors

• Protection Functions: Thermal overload (49), locked rotor (48/14), short circuit (50/51), ground fault (50N/51N), under/overvoltage (27/59), underpower/overpower (32/37), etc.

• Monitoring: Current, voltage, frequency, power, power factor, thermal capacity, motor diagnostics

• Communication: Modbus RTU (standard, as indicated by “M” option)

• Inputs/Outputs: Multiple digital inputs and output relays

• Display: Front-panel LCD with keypad for local monitoring and configuration

• Event Recording: Comprehensive event and fault logging

• Power Supply: “HI” option indicates specific power supply voltage range

• Mounting: Flush mount in switchgear panels or surface mount in enclosures

• Operating Temperature: -40°C to +60°C

• Certification: CE, UL, CSA, IEC standards

Advantages and Features

The primary advantage of the GE 369-HI-0-M-0-E-0 lies in its comprehensive motor protection capabilities and advanced diagnostic features. Using the GE 369-HI-0-M-0-E-0, plant engineers can implement reliable protection schemes for critical motors, preventing costly failures and unscheduled downtime. The relay’s thermal model accurately tracks motor heating and cooling, providing optimal overload protection even under varying load conditions. Advanced motor start and running diagnostics help identify mechanical problems such as bearing wear, misalignment, or load issues before they cause failures. The GE 369-HI-0-M-0-E-0 features a user-friendly front-panel interface with LCD display and keypad, enabling local monitoring, configuration, and fault analysis. Modbus communication capability allows seamless integration with plant SCADA and DCS systems for remote monitoring and control. Comprehensive event recording and fault logging provide valuable information for post-fault analysis and predictive maintenance planning.

Application Cases in Application Fields

The GE 369-HI-0-M-0-E-0 finds essential application across various industries requiring reliable motor protection.

• Oil and Gas Pipeline Pumping: At a crude oil pipeline pumping station, the GE 369-HI-0-M-0-E-0 protects large motor-driven centrifugal pumps, monitoring motor current, temperature, and vibration to prevent failures that would interrupt pipeline flow.

• Water Treatment Plant: In a municipal water treatment facility, the GE 369-HI-0-M-0-E-0 protects critical raw water intake pumps and high-service pumps, ensuring continuous water supply.

• Petrochemical Compressors: At a petrochemical plant, the GE 369-HI-0-M-0-E-0 protects large motor-driven gas compressors, with thermal overload protection preventing motor damage during process upsets.

• Mining Conveyors: In a mining operation, the GE 369-HI-0-M-0-E-0 protects long overland conveyor motors, with locked rotor protection preventing damage during start-up under full load.

• Power Plant Auxiliaries: In a thermal power plant, the GE 369-HI-0-M-0-E-0 protects critical boiler feed pumps and induced draft fans, ensuring reliable plant operation.

Comparison with Competing Products

When compared to similar motor protection relays from other manufacturers such as Siemens (SIMOCODE) or ABB (UMC), the GE 369-HI-0-M-0-E-0 offers specific advantages for users invested in GE’s Multilin ecosystem. It provides comprehensive motor protection features combined with user-friendly programming and extensive communication options. The 369 series has a long-established reputation in the industry, with an extensive installed base and proven reliability. For facilities with existing GE Multilin equipment, the GE 369-HI-0-M-0-E-0 offers consistent engineering tools and familiar programming paradigms.

Selection Suggestions and Precautions

When selecting the GE 369-HI-0-M-0-E-0 for your application, verify that the specific configuration (power supply, communication protocol, language) matches your requirements. The suffix codes in the model number indicate these options. Confirm that the relay’s current inputs are compatible with your CT secondary ratings (1A or 5A). When installing the GE 369-HI-0-M-0-E-0 in a switchgear environment, follow all applicable safety procedures for working in high-voltage areas. Ensure proper grounding and shielding of CT and VT wiring to maintain measurement accuracy and prevent nuisance trips. Configure the relay using appropriate engineering software, documenting all settings including protection curves, time delays, and alarm thresholds. Test protection functions thoroughly during commissioning using secondary injection testing to verify correct operation. For critical motor applications, maintain documentation of all settings and consider keeping a spare GE 369-HI-0-M-0-E-0 relay on hand to minimize downtime in case of failure.
