FOXBORO FBM204

Description

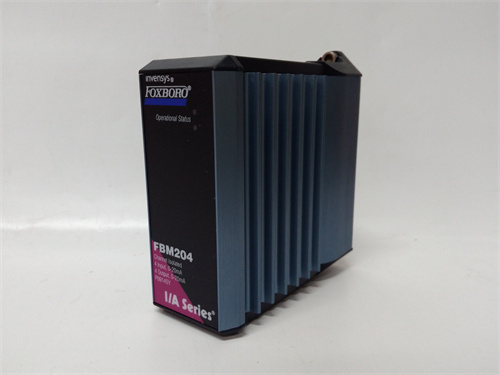

FOXBORO FBM204 Product Overview

FOXBORO FBM204 is a specialized discrete input/output module, designed by Foxboro (now part of Schneider Electric) for their I/A Series distributed control system (DCS). This unit performs the key function of interfacing between the controller and field discrete devices, such as limit switches, pushbuttons, relays, and solenoid valves, providing reliable acquisition of discrete signals and issuance of control commands. The FOXBORO FBM204 is engineered for reliable operation in the harsh industrial environments typical of the oil and gas, chemical, and power generation industries. The FOXBORO FBM204 is recognized in numerous industrial facilities worldwide for its stable performance and seamless integration with the I/A Series system. When expanding or maintaining Foxboro-based control systems, the FOXBORO FBM204 represents an original solution guaranteeing reliable discrete signal acquisition and control.

Product Parameters and Technical Specifications

The technical specifications of the FOXBORO FBM204 reflect its high reliability and performance.

• Model Number: FBM204

• Series: I/A Series

• Product Type: Discrete Input/Output Module

• Number of Channels: Typically 16 channels of discrete input and 16 channels of discrete output

• Input Signal Types: 24V DC discrete signals (optically isolated)

• Output Signal Types: 24V DC discrete signals (transistor or relay outputs)

• Diagnostics: Extensive online self-diagnostics with monitoring of field wiring (open circuit, short circuit) and internal module circuits

• Indication: Front-panel LED indicators for channel status and errors

• Isolation: Galvanic isolation of channels from the I/O bus

• Mounting: Installs into a specialized chassis (rack) of the Foxboro I/A Series control system

• Hot Swappable: Supports module replacement without powering down the system (“hot swap”)

• Power: Receives power from the system chassis via a connector

Advantages and Key Features

The primary advantage of the FOXBORO FBM204 is its high channel density and flexible configuration, allowing multiple discrete devices to be connected in a single module. The module features powerful diagnostic functions, constantly monitoring the status of each channel and communication line, identifying open circuits and short circuits. The “hot swap” capability allows for maintenance without stopping the process, which is critical for continuous processes. The FOXBORO FBM204 integrates tightly with the I/A Series system, ensuring ease of configuration and diagnostics through standard Foxboro tools. Galvanic isolation of channels protects the module and system from field-induced noise and overvoltages. Individual channel LED indicators allow for quick on-site status verification.

Application Cases Across Industries

The FOXBORO FBM204 is widely used in industries requiring reliable discrete signal acquisition and control.

• Oil Refining and Petrochemicals: Monitoring valve limit switches and controlling solenoid valves.

• Chemical Manufacturing: Monitoring pump status and controlling alarms.

• Power Generation: Monitoring breaker and relay status in power plants.

• Pharmaceutical Industry: Monitoring equipment status and controlling actuators.

• Food and Beverage: Monitoring valve positions and controlling actuators on packaging lines.

• Water and Wastewater Treatment: Controlling pumps, valves, and alarms.

Comparison with Competing Products

Compared to discrete I/O modules from other manufacturers, such as ABB (S800 I/O) or Emerson (DeltaV), the FOXBORO FBM204 stands out for its tight integration with the I/A Series ecosystem and extensive diagnostic features. Competitors’ modules also offer high performance, but the FBM204 ensures ideal compatibility with Foxboro controllers and software, simplifying system design and operation. Its “hot swap” capability and channel-level diagnostics make it a preferred choice for critical applications.

Selection Suggestions and Precautions

When selecting and deploying the FOXBORO FBM204, several factors need consideration.

1. Signal Types: Ensure the module supports the required input and output signal types from your field devices (PNP or NPN).

2. Channel Count: Verify that the module’s channel count is sufficient for your application.

3. ESD Precautions: When handling the module, observe precautions to protect against electrostatic discharge.

4. Proper Installation: Ensure the module is correctly and fully installed in the chassis and securely locked in place.

5. Circuit Verification: Before power-up, verify the correct connection of all circuits.

6. Sourcing Genuine Parts: Purchase the FOXBORO FBM204 only from verified and authorized suppliers of industrial spare parts. This guarantees the authenticity of the component and its reliable operation.
