EPRO PR6424/014-040

Description

Product Description

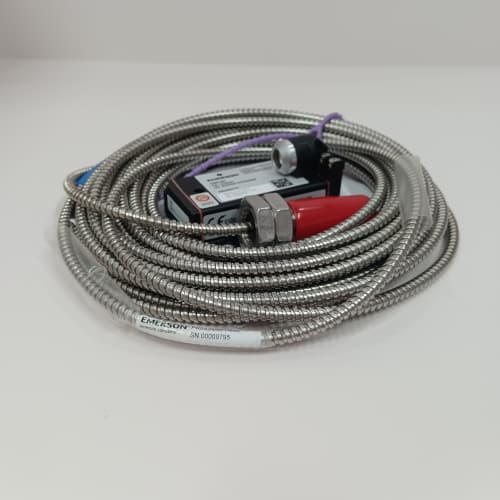

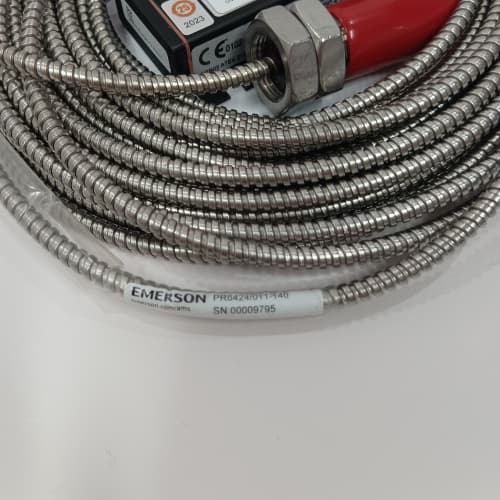

The EPRO PR6424/014-040 is a high-performance, non-contact eddy current proximity transducer system from the renowned EPRO GmbH (now part of Baker Hughes). This specific model is a fundamental component for condition monitoring and protection in critical rotating machinery. The EPRO PR6424/014-040 system consists of a transducer (probe), an extension cable, and a proximitor (driver), working together to measure the relative vibration and axial position of a shaft with exceptional accuracy and reliability. It is engineered to convert the distance between the probe tip and the observed metallic surface (typically a shaft) into a precise, proportional DC voltage signal. This makes the EPRO PR6424/014-040 an indispensable tool for predictive maintenance, avoiding unplanned downtime in industries where machine failure is costly. You can find detailed specifications and support for this product on the official page here: EPRO PR6424/014-040.

Product Parameters

• Measurement Principle: Eddy Current / Inductive

• Measured Variable: Relative Vibration and Position (Displacement)

• Nominal Sensitivity: Typically -8 mV/µm (e.g., 200 mV/mil), system-dependent

• Linear Range: Defined by probe and proximitor combination; standard ranges include 0-2 mm or 0-80 mils.

• Frequency Response: 0 to 10 kHz (-3 dB), suitable for capturing both slow roll and high-frequency vibration events.

• Output Signal: -1 to -21 V DC (linear within measuring range), corresponding to the gap between probe and target.

• Target Material: Electrically conductive materials, typically steel. Requires calibration for other materials.

• Operating Temperature (Probe): Up to 150°C (302°F) for standard versions, with high-temperature models available.

• Power Supply: Typically -24 V DC from the associated proximitor (e.g., CON 010 or PR 6426 series).

• System Compatibility: Designed to interface seamlessly with EPRO’s own monitoring systems (MMS 6000, MMS 3000) and most other PLC or DCS protection subsystems via its standardized voltage output.

Advantages and Features

• Extreme Robustness: The EPRO PR6424/014-040 probe is designed for long-term stability in harsh industrial environments, resistant to oil, pressure, and steam.

• High Reliability and Accuracy: Provides a stable, repeatable measurement signal critical for trustworthy machine protection decisions.

• Intrinsic Safety: The system can be configured for use in hazardous areas with appropriate barriers.

• Temperature Stability: Excellent compensation for temperature drift, ensuring consistent readings despite ambient changes.

• Global Proven Standard: As part of the EPRO PR 64xx series, this model is an industry-standard technology specified by OEMs and end-users worldwide for turbomachinery.

• Integrated System Approach: When used with genuine EPRO cables and proximitors, it guarantees specified performance, eliminating calibration uncertainties from mixed-brand setups.

Application Cases in Application Fields

• Power Generation: Continuous vibration monitoring on steam and gas turbine shafts, generator bearings, and feedwater pumps in nuclear and fossil-fuel plants.

• Oil & Gas: Protection of critical compressors (centrifugal, reciprocating) and gas/steam turbines on offshore platforms and pipelines.

• Petrochemical & Refining: Monitoring large compressor trains in catalytic cracking and other process units to prevent catastrophic failure.

• Marine Industry: Condition monitoring of main propulsion turbines and gearboxes on large vessels.

• Heavy Industry: Protecting motors, fans, and blowers in metallurgy, cement, and paper production.

Comparisons with Competing Products

Compared to other eddy current systems like Bently Nevada 3300 XL series or Vibro-Meter VK-101 systems, the EPRO PR6424/014-040 holds its ground:

• Brand Heritage: EPRO is equally prestigious in the European and global power markets, often specified alongside Bently Nevada.

• Standardization: While Bently Nevada’s 5 mV/mil and 8 mV/mil are common in the Americas, EPRO’s -8 mV/µm is a dominant standard in many international markets and OEM specifications.

• System Philosophy: EPRO systems are often noted for their straightforward calibration and robust construction. The competition may offer wider accessory or form-factor options.

• Interfacing: All major systems provide compatible voltage outputs for PLC/DCS, but the physical connectors and cable types differ, making them non-interchangeable without adapters.

Selection Suggestions and Precautions

1. Confirm System Requirements: Always verify the required sensitivity (mV/µm or mV/mil), linear range, and connector type specified by your machinery OEM or existing monitoring system.

2. Complete System Needed: Remember that the EPRO PR6424/014-040 transducer requires a matching extension cable (e.g., PR 6424/0-0) and a compatible proximitor (e.g., CON 010, PR 6426). Never mix probes and cables from different brands without verifying compatibility.

3. Target Material: Critical. The system is calibrated for standard steel (AISI 4140). If your shaft is made of a different material (e.g., stainless steel, monel), the sensitivity and linear range will change, and recalibration is necessary.

4. Environment: Check the ambient temperature. For installations near high-temperature casings (above 150°C), consider a high-temperature probe version.

5. Installation: Proper probe mounting (gap setting, securing, cable routing) is crucial. Use a digital micrometer for precise initial gap (standoff) setting as per the datasheet. Ensure the measurement area on the shaft is clean, concentric, and free of scratches or magnetism.
