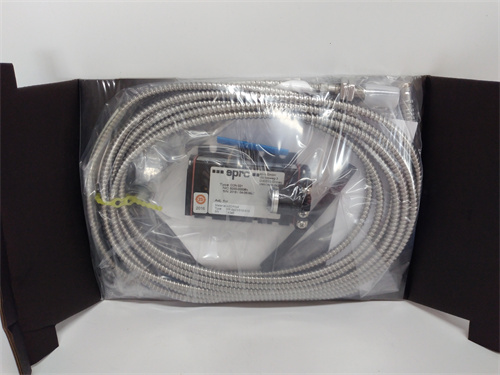

EPRO PR6423/002-001-CN

Description

Introduction and Overview

The EPRO PR6423/002-001-CN is a high-performance eddy current displacement sensor manufactured by EPRO (a brand under Emerson Automation Solutions) for use in machinery protection and condition monitoring systems. This sensor is specifically designed for non-contact measurement of static and dynamic positions of rotating and reciprocating machinery components. The EPRO PR6423/002-001-CN operates on the eddy current principle, providing accurate and reliable measurements of shaft vibration, axial position, eccentricity, and other critical parameters in turbomachinery applications.

As part of the EPRO sensor family, the EPRO PR6423/002-001-CN embodies the precision and reliability required for protection of critical machinery in power generation, oil and gas, and industrial processing industries. This sensor is typically used in conjunction with EPRO CON021 or CON041 converters and monitors such as the MMS6000 or AMS 6500 systems to provide complete machinery protection solutions. The EPRO PR6423/002-001-CN is designed to meet stringent international standards including API 670, ensuring reliable performance in the most demanding applications.

Technical Parameters (Product Parameters)

The EPRO PR6423/002-001-CN is engineered for precise measurement in harsh industrial environments. Its key specifications include:

• Product Type: Eddy Current Displacement Sensor (Proximity Probe)

• Part Number: EPRO PR6423/002-001-CN (complete assembly)

• Measurement Principle: Eddy current (inductive) – non-contact

• Measuring Range: Typically 2 mm (0-2 mm linear range)

• Sensitivity: 8 V/mm (standard, may vary with target material)

• Initial Gap: Factory preset, typically 0.5 mm (adjustable via mounting)

• Frequency Response: 0 to 10 kHz (suitable for vibration and position measurements)

• Temperature Range: -35°C to +180°C (probe tip); electronics up to +85°C

• Probe Diameter: Standard 5 mm or 8 mm tip (verify from specific configuration)

• Probe Length: Various lengths available; 002-001 configuration indicates specific length and cable type

• Cable Type: Integral cable with coaxial connector (typically with CON021/CON041 interface)

• Connector: Standard coaxial connector for connection to extension cable or converter

• Target Material: Ferromagnetic and non-ferromagnetic materials (calibrated for specific target materials)

• Protection Class: Probe tip: IP68; Probe body: IP67

• Mounting Thread: Standard M10 x 1 thread or specified mounting configuration

• Approvals: ATEX, IECEx, CSA for hazardous area installations (depending on specific variant)

• Standards Compliance: API 670, ISO 10817-1

The EPRO PR6423/002-001-CN provides the precise, reliable measurements essential for protecting critical rotating machinery.

Advantages and Features

The primary advantages of the EPRO PR6423/002-001-CN revolve around its measurement accuracy, environmental robustness, and seamless integration with EPRO monitoring systems.

1. Non-Contact Measurement: The EPRO PR6423/002-001-CN uses eddy current technology to measure displacement without physical contact with the rotating shaft. This eliminates wear, provides unlimited mechanical life, and allows measurement in applications where physical contact is impossible or undesirable.

2. High Accuracy and Linearity: The EPRO PR6423/002-001-CN provides exceptional linearity over its full measuring range, with sensitivity typically within ±1% of full scale. This accuracy is essential for detecting small changes in shaft position that could indicate developing machinery problems.

3. Wide Frequency Response: With frequency response from DC to 10 kHz, the EPRO PR6423/002-001-CN captures both static measurements (shaft position, eccentricity) and dynamic measurements (vibration, runout) with a single sensor, simplifying installation and reducing costs.

4. Environmental Robustness: The EPRO PR6423/002-001-CN is designed for the harsh environments typical of turbomachinery. With probe tip ratings up to +180°C and IP68 protection, it withstands high temperatures, oil, moisture, and contaminants commonly found in turbine and compressor applications.

5. Hazardous Area Certification: Available with ATEX, IECEx, and CSA certifications, the EPRO PR6423/002-001-CN can be installed in hazardous areas where explosive atmospheres may be present, making it suitable for oil and gas, petrochemical, and mining applications.

6. System Compatibility: The EPRO PR6423/002-001-CN is specifically designed for use with EPRO signal converters (CON021, CON041) and monitors (MMS6000, AMS 6500), ensuring perfect system integration and optimal performance.

7. API 670 Compliance: Meeting the stringent requirements of API 670 (American Petroleum Institute standard for machinery protection systems), the EPRO PR6423/002-001-CN is qualified for the most demanding turbomachinery protection applications.

Application Fields and Use Cases

The EPRO PR6423/002-001-CN is widely used in critical rotating machinery applications requiring precise displacement measurement.

• Power Generation: Gas turbines, steam turbines, and hydroelectric turbines use the EPRO PR6423/002-001-CN for radial vibration measurement, axial position monitoring, and shaft eccentricity measurement. These measurements are essential for protecting expensive turbine assets from damage.

• Oil and Gas Industry: Compressors, gas turbines, and pumps in upstream, midstream, and downstream applications employ the EPRO PR6423/002-001-CN for continuous machinery condition monitoring and protection against overspeed, surge, and mechanical damage.

• Refineries and Petrochemical Plants: Critical rotating equipment in refining and chemical processes relies on the EPRO PR6423/002-001-CN to provide early warning of developing mechanical problems, allowing planned maintenance rather than unexpected failures.

• Pipeline Compression Stations: Natural gas pipeline compressors use the EPRO PR6423/002-001-CN for vibration and position monitoring, ensuring reliable operation of these critical transportation assets.

• Industrial Fans and Blowers: Large critical fans in mining, cement production, and steel manufacturing benefit from the reliable monitoring provided by the EPRO PR6423/002-001-CN.

• Marine and Offshore Applications: Propulsion turbines and generators on ships and offshore platforms incorporate the EPRO PR6423/002-001-CN for machinery protection in demanding marine environments.

Comparison with Competing Products

The EPRO PR6423/002-001-CN competes with eddy current sensors from other major manufacturers such as Bently Nevada (3300 series 5mm and 8mm probes), Vibro-Meter (IQS 450 series), and GE (Sensonics probes).

• Advantages of EPRO PR6423/002-001-CN: The sensor offers excellent compatibility with EPRO monitoring systems, ensuring optimal performance and simplified system engineering. The EPRO PR6423/002-001-CN is specifically designed to meet API 670 requirements, making it particularly suitable for turbomachinery applications in the oil and gas and power generation industries. The wide temperature range and hazardous area certifications provide flexibility for challenging installations. EPRO’s reputation for quality and reliability in the European market is well-established.

• Disadvantages: As a specialized sensor for EPRO systems, the EPRO PR6423/002-001-CN may require EPRO-specific signal conditioning when used with third-party monitoring systems. The initial cost may be higher than generic proximity sensors, though this reflects the precision and reliability required for critical machinery protection. Availability may vary by region compared to more widely distributed brands.

• Versus Bently Nevada 3300 Series: While Bently Nevada is a dominant player in the North American market, the EPRO PR6423/002-001-CN offers comparable performance with different connector and system integration characteristics. The choice often comes down to existing plant standards, preferred monitoring systems, and regional support availability.

Selection Suggestions and Precautions

When selecting and implementing the EPRO PR6423/002-001-CN, consider the following recommendations:

1. Application Requirements Analysis: Carefully analyze your measurement requirements to select the appropriate EPRO PR6423/002-001-CN configuration. Consider required measuring range, target material, temperature conditions, and environmental factors.

2. Probe Length Selection: The EPRO PR6423/002-001-CN is available with various probe lengths to accommodate different installation requirements. Ensure that the selected length provides proper clearance and allows the probe tip to be positioned at the correct gap from the target.

3. Target Material Considerations: The EPRO PR6423/002-001-CN sensitivity varies with target material characteristics. Ensure that the sensor is calibrated for your specific target material or that appropriate calibration adjustments can be made in the monitoring system.

4. Cable and Connector Compatibility: Verify that the EPRO PR6423/002-001-CN connector type is compatible with your extension cables and signal converters (CON021/CON041). The integral cable length must be appropriate for the installation.

5. Hazardous Area Requirements: If installing in hazardous areas, ensure that the specific EPRO PR6423/002-001-CN variant has the required certifications (ATEX, IECEx, CSA) for your location and classification.

6. Mounting Considerations: Plan the mechanical mounting of the EPRO PR6423/002-001-CN carefully, considering access for installation, proper gap adjustment, and protection from mechanical damage.

7. System Integration: Ensure that your monitoring system (MMS6000, AMS 6500, or third-party) is compatible with the EPRO PR6423/002-001-CN and properly configured for the sensor characteristics.

Safety Precautions: When working with the EPRO PR6423/002-001-CN and associated machinery protection systems, observe these critical safety practices:

• Only qualified personnel familiar with machinery protection systems should perform installation, configuration, and maintenance

• For hazardous area installations, ensure that all work complies with applicable regulations and that the area is declassified before installation or removal

• Do not exceed the specified temperature ratings of the EPRO PR6423/002-001-CN probe or cable

• Handle the probe and cable carefully to avoid damage; the integral cable is sensitive to kinking and crushing

• Ensure proper grounding of the sensor system according to manufacturer specifications

• Verify that the probe tip gap is correctly set during installation using appropriate tools and procedures

• Complete thorough commissioning tests to verify correct sensor operation before placing the protection system into service

• Consult the official EPRO documentation for complete safety instructions and application guidelines

• Regularly verify sensor operation as part of a comprehensive machinery protection maintenance program

• Use appropriate personal protective equipment when working in industrial environments
