EMERSON KJ2003X1-BA2

Description

Product Description

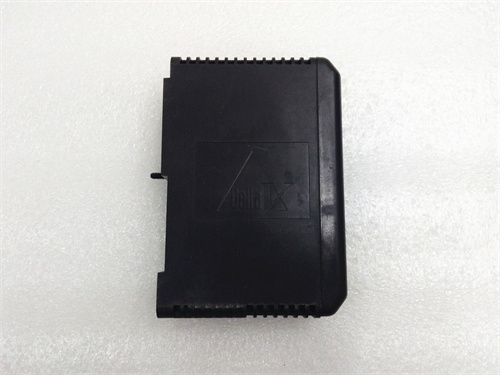

The EMERSON KJ2003X1-BA2 is a high-performance discrete output module designed for the Emerson DeltaV distributed control system. This module is part of the DeltaV Series 2 I/O family and provides reliable digital output control for various field devices such as solenoid valves, motor starters, alarm annunciators, and indicator lights. The KJ2003X1-BA2 serves as the critical interface between the DeltaV control system and field actuators, translating control logic into physical actions in the process plant. As an original Emerson product, this module guarantees high reliability, seamless integration with DeltaV, and full compatibility with the DeltaV I/O subsystem.

Product Parameters and Specifications

The EMERSON KJ2003X1-BA2 is characterized by its robust output capability and comprehensive diagnostic features. Below are the typical specifications for this model:

• Device Type: Discrete Output Module for DeltaV Series 2 I/O.

• Number of Channels: 16 channels of discrete output.

• Output Type: 24 V DC sourcing outputs.

• Output Current: 0.5 A per channel, with total current limits per module.

• Isolation: 500V DC channel-to-backplane isolation.

• Diagnostics: Comprehensive self-diagnostics with open wire detection and output status monitoring.

• Indication: Per-channel LED indicators for visual output status verification.

• Hot Swappable: Supports module replacement without disturbing field wiring or interrupting power to the I/O card.

• Mounting: Plugs directly into DeltaV Series 2 I/O carrier.

Advantages and Features

Integrating the EMERSON KJ2003X1-BA2 into your DeltaV system provides significant operational advantages. Its primary feature is the hot-swappable design, allowing module replacement without disturbing field wiring or interrupting power to the I/O card, thus maintaining continuous process operation. The KJ2003X1-BA2 incorporates comprehensive diagnostic capabilities, including per-channel open wire detection and output status monitoring, which are continuously reported to the DeltaV system for proactive maintenance alerting. Each channel features individual LED indication for immediate visual verification of output status without requiring system access. The module includes configurable failsafe options, allowing outputs to be driven to predefined safe states in the event of communication loss. Its robust design ensures reliable operation in demanding industrial environments, with high immunity to electrical noise and transients.

Application Fields and Use Cases

The EMERSON KJ2003X1-BA2 is extensively deployed across process industries requiring reliable discrete control. Common application fields include:

• Chemical and Petrochemical: Operating solenoid valves for reactant addition, controlling motor starters for pumps and agitators.

• Oil and Gas: Controlling emergency shutdown system solenoids, starting auxiliary equipment on offshore platforms.

• Pharmaceutical Manufacturing: Operating clean-in-place (CIP) system valves, controlling material transfer solenoids.

• Power Generation: Controlling boiler burner management systems, starting auxiliary equipment, and annunciating alarms.

In these environments, the KJ2003X1-BA2 serves as the trusted interface between the DeltaV control system and the final control elements that directly impact process operation.

Comparison with Competiting Products

When compared to discrete output modules from other DCS platforms (e.g., Honeywell, ABB, Siemens), the EMERSON KJ2003X1-BA2 distinguishes itself through its deep integration with the DeltaV ecosystem and advanced diagnostic capabilities. While competing modules may offer similar electrical specifications, the KJ2003X1-BA2 provides seamless integration with DeltaV’s AMS Device Manager, enabling predictive maintenance and asset management without additional components. The module’s comprehensive diagnostics, including per-channel open wire detection, provide maintenance personnel with detailed information about field circuit health, reducing troubleshooting time. The ability to configure outputs to predefined safe states on communication loss is a critical feature for process safety applications. Furthermore, the hot-swappable design makes it ideal for applications where downtime is unacceptable.

Selection Suggestions and Precautions

When selecting the EMERSON KJ2003X1-BA2 for your project, first verify that the output type (24 V DC sourcing) and current ratings match your field device requirements. Consider the total current draw across all channels to ensure it remains within the module’s limits. Verify that the KJ2003X1-BA2 firmware revision is compatible with your DeltaV system version. Before installation, inspect the module for any physical damage to connectors or components. When handling the module, follow proper ESD precautions. Ensure the module is properly seated in the correct I/O carrier per your system documentation. For the EMERSON KJ2003X1-BA2, proper wiring practices are essential; use shielded cables for long runs and maintain segregation from high-power AC lines. Configure output failsafe options based on your process safety requirements, determining whether outputs should go to zero, hold last value, or go to a predefined safe state on communication loss. Always source genuine EMERSON KJ2003X1-BA2 modules from authorized distributors to guarantee authenticity and warranty coverage. Finally, consider stocking spare modules for critical loops to minimize potential downtime in the event of hardware failure.
