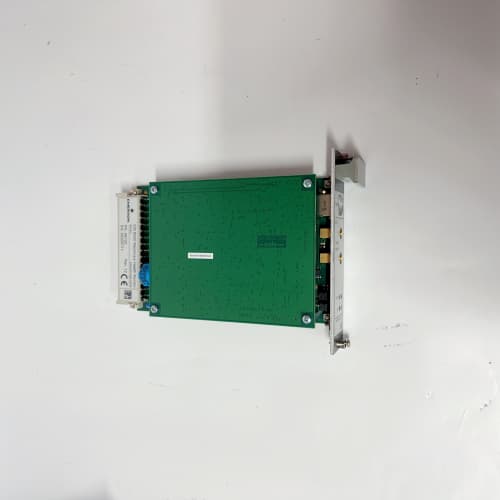

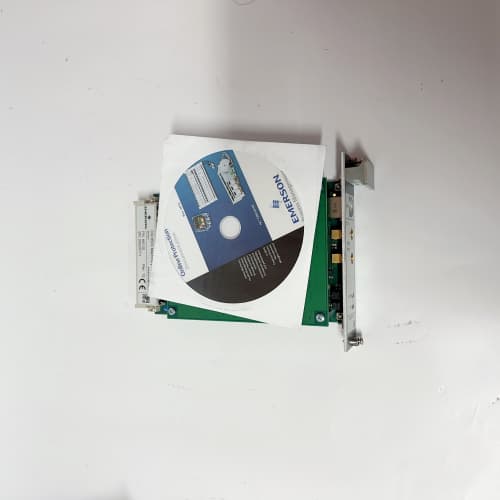

EMERSON 9199-00002 A6120

Description

Product Parameters and Specifications

The EMERSON 9199-00002 A6120 comes with the following technical specifications:

• Product Type: Analog I/O Module (CHARMS-based)

• Part Numbers: 9199-00002 (Main Model) / A6120 (Revision/Configuration Code)

• Series: Emerson DeltaV DCS (Digital Automation System)

• Compatibility: DeltaV v8.4 and later, Series 2 and Series 2+ controllers

• Channel Configuration: 8 channels (individually configurable)

• Input Signal Types: 4-20 mA, 0-20 mA, 1-5V, 0-5V, 0-10V, thermocouple (B,E,J,K,N,R,S,T), RTD (Pt100, Ni120, Cu10)

• Output Signal Types: 4-20 mA, 0-20 mA, 1-5V, 0-5V (per channel)

• Resolution: 16-bit ADC for inputs, 14-bit DAC for outputs

• Accuracy: ±0.1% of span typical (25°C)

• Temperature Drift: ±50 ppm/°C maximum

• Update Rate: 100 ms per channel (typical)

• Isolation: 500V DC channel-to-channel, 1500V DC channel-to-ground

• HART Compatibility: HART pass-through for intelligent device communication

• Diagnostics: Open wire detection, short circuit detection, out-of-range detection

• Field Termination: 16-position terminal block (included)

• Power Requirements: 24 VDC nominal (18-30 VDC range) from carrier

• Power Consumption: 3.5W typical, 5W maximum

• Operating Temperature: -40°C to 70°C (-40°F to 158°F)

• Storage Temperature: -40°C to 85°C (-40°F to 185°F)

• Humidity: 5-95% RH non-condensing

• Vibration Resistance: 3g @ 10-150Hz per IEC 60068-2-6

• MTBF: > 1,000,000 hours at 40°C

• Dimensions: 120mm x 100mm x 70mm (H x W x D)

• Mounting: Plugs into DeltaV CHARM I/O Carrier

• Certifications: CE, UL, CSA, ATEX, IECEx, FM, SIL 3 capable per IEC 61508

Advantages and Key Features

The EMERSON 9199-00002 A6120 offers numerous advantages for process control applications:

Flexible Channel Configuration: The EMERSON 9199-00002 A6120 allows each of its 8 channels to be independently configured for different signal types, enabling a single module to handle mixed I/O requirements. This flexibility of the EMERSON 9199-00002 A6120 reduces the number of spare modules needed and simplifies engineering for applications with diverse instrumentation.

CHARMs Technology: As part of Emerson’s innovative CHARMs architecture, the EMERSON 9199-00002 A6120 leverages the benefits of electronic marshalling, allowing field wiring to be terminated in safe areas while the EMERSON 9199-00002 A6120 communicates with controllers over standard DeltaV networks. This approach significantly reduces engineering time and cabinet complexity compared to traditional marshalling panels.

High Accuracy and Stability: With 16-bit resolution and ±0.1% accuracy, the EMERSON 9199-00002 A6120 delivers precise measurement capability essential for critical control loops, custody transfer applications, and quality-critical processes. The low temperature drift of the EMERSON 9199-00002 A6120 ensures consistent performance across varying environmental conditions.

Comprehensive Diagnostics: The EMERSON 9199-00002 A6120 continuously monitors field wiring integrity, detecting open circuits, shorts, and out-of-range conditions that could indicate sensor failures or wiring problems. These diagnostics from the EMERSON 9199-00002 A6120 are communicated to the DeltaV system for alarming and operator notification, enabling rapid response to field issues.

HART Protocol Support: With integrated HART pass-through capability, the EMERSON 9199-00002 A6120 enables communication with smart field devices without requiring separate HART multiplexers. This feature of the EMERSON 9199-00002 A6120 allows access to device diagnostics, calibration data, and secondary variables directly through the DeltaV system.

SIL 3 Capability: The EMERSON 9199-00002 A6120 is certified for use in safety instrumented functions up to SIL 3, supporting applications where the module monitors safety-critical sensors or controls safety-related final elements. This certification of the EMERSON 9199-00002 A6120 simplifies safety system design and validation.

Wide Temperature Range: With operation specified from -40°C to 70°C, the EMERSON 9199-00002 A6120 performs reliably in harsh environments, including unheated enclosures in cold climates and hot process areas without air conditioning.

Hot-Swappable Design: The EMERSON 9199-00002 A6120 supports replacement without powering down the I/O carrier or controller, minimizing process disruption during maintenance activities. Module insertion and removal of the EMERSON 9199-00002 A6120 are automatically detected by the DeltaV system.

Reduced Spares Inventory: The multi-functional capability of the EMERSON 9199-00002 A6120 allows a single module type to serve multiple I/O requirements, significantly reducing the variety and quantity of spare modules that must be stocked for maintenance coverage.

Application Fields and Use Cases

The EMERSON 9199-00002 A6120 finds widespread application across numerous process industries:

Oil and Gas Production: The EMERSON 9199-00002 A6120 monitors wellhead pressures, flow rates, and separator levels in upstream oil and gas facilities, providing critical data for production optimization and safety system activation. The rugged design of the EMERSON 9199-00002 A6120 withstands the challenging conditions typical of remote production sites.

Refining Operations: Petroleum refineries utilize the EMERSON 9199-00002 A6120 for critical measurements in crude units, catalytic crackers, and hydrotreaters, where accurate process data is essential for product quality and safe operation. The SIL 3 capability of the EMERSON 9199-00002 A6120 supports safety functions in these high-hazard areas.

Chemical Manufacturing: Batch and continuous chemical processes employ the EMERSON 9199-00002 A6120 to monitor reactor temperatures, pressures, and feed rates, ensuring precise control of reaction conditions for consistent product quality and yield optimization.

Pharmaceutical Production: The EMERSON 9199-00002 A6120 supports GMP-compliant manufacturing by providing accurate measurement of critical process parameters with comprehensive audit trail capabilities through integration with DeltaV’s electronic batch recording features.

Power Generation: Thermal power plants use the EMERSON 9199-00002 A6120 for boiler control, turbine monitoring, and emissions control applications, where reliable analog I/O is essential for efficient and environmentally compliant operation.

Pulp and Paper Mills: The EMERSON 9199-00002 A6120 monitors digesters, bleach plants, and paper machine variables, supporting the precise control required for consistent paper quality and efficient chemical usage.

Food and Beverage Processing: Sanitary process applications in food and beverage production utilize the EMERSON 9199-00002 A6120 for temperature control, flow measurement, and batching operations, supporting consistent product quality and food safety requirements.

Water and Wastewater Treatment: Municipal and industrial water treatment facilities employ the EMERSON 9199-00002 A6120 to monitor flows, pressures, chemical dosages, and water quality parameters, enabling automated treatment process control and regulatory compliance reporting.

Comparison with Competing Products

When compared to similar offerings from competitors like Siemens (ET200SP), ABB (S800 I/O), or Honeywell (Series 8 I/O):

vs. Siemens ET200SP Analog Modules: Siemens offers capable distributed I/O, but the EMERSON 9199-00002 A6120 provides superior channel-level configurability, allowing each of its 8 channels to handle different signal types without hardware changes. Siemens typically requires dedicated modules for each signal type, increasing inventory requirements and reducing flexibility.

vs. ABB S800 I/O: ABB’s S800 series provides robust analog I/O, but the EMERSON 9199-00002 A6120 incorporates more comprehensive diagnostics, including individual channel health monitoring and predictive maintenance alerts that ABB requires additional software layers to achieve. The EMERSON 9199-00002 A6120 diagnostics are integrated directly into the DeltaV alarm management system.

vs. Honeywell Series 8 Analog Modules: Honeywell’s Series 8 I/O offers similar functionality within the Experion platform, but the EMERSON 9199-00002 A6120 benefits from Emerson’s CHARMs electronic marshalling technology, which significantly reduces engineering time and termination cabinet complexity compared to Honeywell’s traditional marshalling approach.

vs. Yokogawa STARDOM FCN/FCJ: Yokogawa’s STARDOM controllers provide flexible I/O, but the EMERSON 9199-00002 A6120 offers tighter integration with DeltaV’s advanced control functions, including model predictive control and neural network applications that leverage the EMERSON 9199-00002 A6120 measurement data for optimization.

Key Differentiator: The primary advantage of the EMERSON 9199-00002 A6120 lies in its integration with Emerson’s CHARMs electronic marshalling technology, which dramatically reduces engineering time, cabinet space, and lifecycle costs compared to traditional I/O architectures requiring dedicated marshalling panels and cross-wiring.

Selection Suggestions and Precautions

When selecting the EMERSON 9199-00002 A6120 for your application, consider these important factors:

Signal Type Requirements: Carefully document all signal types to be connected to the EMERSON 9199-00002 A6120. While highly flexible, the module has specific capabilities for each signal type. Verify that thermocouple types, RTD curves, and voltage ranges match the EMERSON 9199-00002 A6120 specifications before finalizing your I/O assignment.

Carrier Compatibility: Ensure the EMERSON 9199-00002 A6120 is compatible with your specific DeltaV I/O carrier. Different carrier generations may require specific mounting hardware or firmware versions for proper operation of the EMERSON 9199-00002 A6120.

System Software Version: Verify that your DeltaV system software version supports the EMERSON 9199-00002 A6120. Newer module revisions may require minimum software versions for full functionality, and older DeltaV systems may need upgrades to recognize the EMERSON 9199-00002 A6120.

HART Device Integration: If using HART-enabled field devices with the EMERSON 9199-00002 A6120, verify that your DeltaV system includes appropriate HART interface licenses and that the AMS Device Manager is configured to communicate with devices through the EMERSON 9199-00002 A6120.

Safety Application Requirements: For SIL-rated applications using the EMERSON 9199-00002 A6120, ensure that your safety requirements specification is compatible with the module’s certified capabilities and that appropriate voting and diagnostic coverage are implemented in the safety logic.

Environmental Conditions: Assess the installation environment for the EMERSON 9199-00002 A6120. While rated for -40°C to 70°C operation, extreme temperatures near the limits may require derating or additional thermal management to ensure long-term reliability of the EMERSON 9199-00002 A6120.

Wiring Practices: Follow Emerson’s recommended wiring practices for the EMERSON 9199-00002 A6120, including proper shielding, grounding, and segregation of power and signal wiring. Incorrect wiring can compromise measurement accuracy and module performance of the EMERSON 9199-00002 A6120.

Spare Parts Strategy: Given the critical nature of process control I/O, maintain appropriate spare EMERSON 9199-00002 A6120 modules on-site to minimize downtime in case of failure. Consider Emerson’s recommended sparing guidelines based on the number of installed modules and required system availability.

Configuration Backup: Maintain current configuration backups for all EMERSON 9199-00002 A6120 modules in your DeltaV system. This documentation is essential for rapid replacement and ensures consistent configuration across redundant or similar modules.

Installation Expertise: Installation and configuration of the EMERSON 9199-00002 A6120 should only be performed by personnel trained on Emerson DeltaV systems. Improper configuration can lead to process upsets, inaccurate measurements, or safety system impairments.

Firmware Version Management: When ordering replacement EMERSON 9199-00002 A6120 modules, verify firmware compatibility with your existing system. Emerson periodically releases firmware updates that may include enhanced features or improved diagnostics for the EMERSON 9199-00002 A6120.

Regulatory Compliance: Verify that your application of the EMERSON 9199-00002 A6120 complies with applicable industry regulations, including safety standards (IEC 61511), environmental regulations, and any specific requirements for your industry sector such as FDA validation in pharmaceutical applications.
