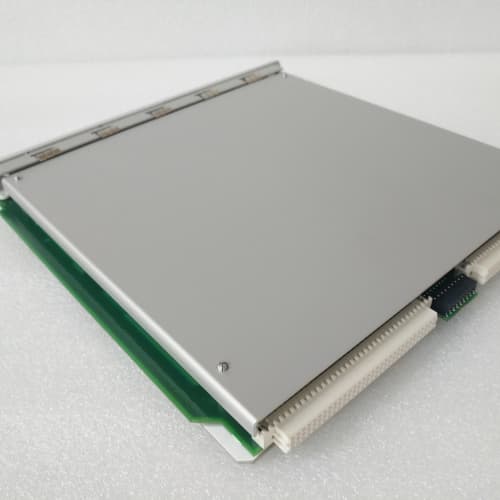

BENTLY 177230-01-01CN – Vibration Monitoring System Module

Product Description

The BENTLY 177230-01-01CN is a specialized monitoring module designed for critical machinery protection within industrial automation and control systems. As a key component of Bently Nevada’s renowned 3500 Series machinery condition monitoring system, the BENTLY 177230-01-01CN serves as a Relay Module. Its primary function is to convert monitored vibration, speed, or position signals into discrete relay outputs for machinery shutdown, alarm initiation, or permissive functions. Integrating a BENTLY 177230-01-01CN into a protection system provides a vital link between continuous monitoring and decisive control actions to prevent catastrophic equipment failure.

Product Parameters

• Function: Quad-Channel Relay Module for the 3500 Rack System.

• Inputs: Accepts signals from other 3500 monitor modules (e.g., Vibration, Position, Speed).

• Relay Outputs: Typically features four (4) Form C (SPDT – Single Pole, Double Throw) relay contacts.

• Relay Ratings: Specific voltage and current ratings for resistive and inductive loads (e.g., 2A @ 30VDC, 0.5A @ 125VAC).

• Configuration: Fully programmable via the 3500 System configuration software; settings include alarm setpoints, latching behavior, delay times, and voting logic (e.g., 1-out-of-2, 2-out-of-2).

• Mounting: Installs in a dedicated slot within a Bently Nevada 3500/40M or 3500/42M rack.

• Communications: Integrates with the rack’s backplane for internal data exchange and supports TDI (Transducer Data Interface) for communication with external systems.

Advantages and Features

• High Reliability for Safety Systems: Designed specifically for critical machinery protection (API 670 standard), offering exceptional reliability for trip and alarm functions.

• Flexible Configuration: Each relay can be independently configured to respond to specific alarms (Danger, Alert, OK) from any monitor channel in the rack, enabling complex logic.

• Voting Logic: Built-in voting logic (e.g., 2oo3) enhances safety system integrity and helps avoid unnecessary trips.

• Status Indication: Clear LED indicators on the front face show the power status, relay state (energized/de-energized), and bypass condition.

• Diagnostics: Includes module self-diagnostics and can relay diagnostic information from other modules in the system.

• Seamless Integration: Works cohesively within the 3500 System ecosystem, sharing configuration and data across all monitoring and relay modules.

Application Cases in Various Fields

• Power Generation (Gas & Steam Turbines): Provides hardwired trip signals to the turbine control system (Turbine Trip Solenoids) based on excessive vibration, eccentricity, or overspeed detected by other 3500 monitors.

• Oil & Gas (Centrifugal Compressors): Used to initiate unit shutdowns or activate auxiliary systems (e.g., blow-down valves) upon detection of dangerous conditions like high radial vibration or axial displacement.

• Petrochemical & Refining: Integrates into safety instrumented systems (SIS) for critical pumps and fans, triggering alarms in the plant DCS or initiating protective sequences.

• Marine & Offshore: Protects main propulsion gas turbines and diesel generators by sending trip signals to the engine governor or ship control system.

• Water & Wastewater: Monitors large pump and blower trains, providing alarm and shutdown signals to the plant PLC to prevent mechanical seizure or bearing failure.

Comparisons with Competing Products

Unlike standard PLC or DCS output cards (e.g., from Siemens or Rockwell), the BENTLY 177230-01-01CN is not a general-purpose output module. Its primary competitor is other dedicated machinery protection system relays like the GE Bently Nevada 3500/42M-01-01-00 or modules from Emerson’s CSI 6500 system. The key differentiator of the BENTLY 177230-01-01CN is its deep, firmware-level integration within the proprietary 3500 monitoring system, offering unmatched reliability, specialized voting logic, and a proven track record in high-criticality safety applications. General-purpose PLC relays lack the dedicated diagnostics, certification focus (API 670), and seamless transducer interface specific to machinery health monitoring.

Selection Suggestions and Precautions

• System Compatibility: This module must be installed in a compatible Bently Nevada 3500 Series rack (e.g., 3500/40M, 3500/42M). It cannot function as a stand-alone device.

• Application Criticality: Select the BENTLY 177230-01-01CN specifically for safety-critical machinery protection (trip functions), not for general process control sequencing.

• Configuration Software: Proper configuration requires Bently Nevada’s 3500 System configuration software and expertise. Relay logic (which alarm drives which relay) must be meticulously planned.

• Relay Load Rating: Verify the relay contact ratings (voltage, current, AC/DC) are suitable for the connected load (solenoids, lamp, PLC input).

• Wiring and Safety: Follow strict safety and wiring guidelines for safety systems. Use shielded cables for inputs and separate conduits for high-voltage relay output wiring.

• Bypass Management: Understand the module’s bypass functionality and implement strict administrative controls to prevent inadvertent bypassing of critical protection during operation.

• Always consult the official Bently Nevada 3500 Series documentation and involve a certified machinery protection specialist for system design and configuration.
