BENTLY 125680-01

Description

Product Description

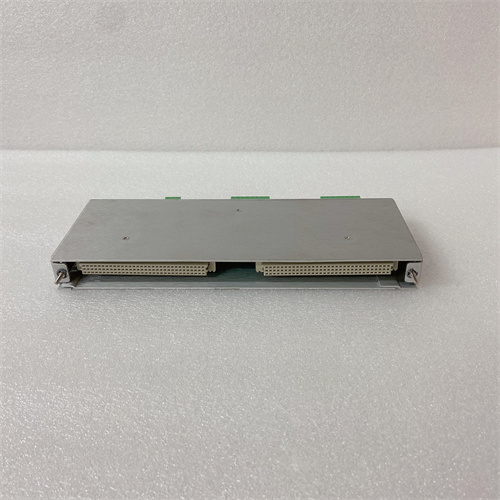

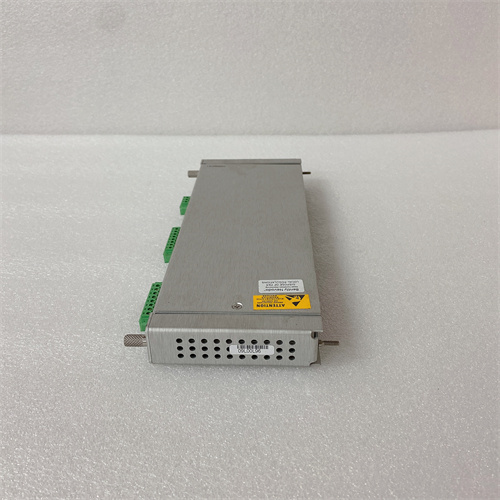

The BENTLY 125680-01 is a specialized monitoring module from Bently Nevada (now part of Baker Hughes), a global leader in machinery condition monitoring and protection systems. This module is a critical component within the 3500/42M series, which is a standard for monitoring vibration and position in rotating machinery. The primary function of the BENTLY 125680-01 is to serve as a Proximitor power supply and signal conditioner for eddy-current displacement probes. It provides the necessary high-frequency excitation current to the probe and conditions the returning analog signal, which represents the distance (gap voltage) between the probe tip and the observed metal surface (e.g., a shaft). The 125680-01 module is engineered to deliver reliable, high-fidelity measurements of rotor position, radial vibration, and axial thrust position, making it an indispensable sensor interface for protecting expensive turbomachinery like turbines, compressors, and pumps from catastrophic mechanical failure.

Technical Parameters and Characteristics

• Manufacturer and Series: Baker Hughes Bently Nevada, 3500 System (specifically a 3500/42M Proximitor/Seismic Monitor or related module).

• Device Type: Proximitor Power Supply and Signal Conditioning Module (often part of a multi-channel monitor).

• Key Function: Powers eddy-current proximity probes and conditions their output signals for monitoring radial vibration, axial position (thrust), and eccentricity.

• Probe Excitation: Supplies a constant high-frequency (typically ~2.0 MHz) AC excitation current to the connected eddy-current probe. This creates an electromagnetic field at the probe tip.

• Signal Conditioning: Converts the probe’s complex impedance change (caused by the gap distance to the target) into two key, scalable DC voltage outputs:

  • Gap Voltage (DC): A negative DC voltage (-2 to -18 Vdc) that is linearly proportional to the average gap between the probe tip and the target. This is used for position monitoring (e.g., thrust position, radial position).

  • Dynamic (AC) Signal: The AC component superimposed on the DC gap voltage, which represents the vibration displacement of the target. This signal is typically filtered, amplified, and calibrated to engineering units (mils or µm peak-to-peak).

• Channel Configuration: The 125680-01 module may be a single-channel or dual-channel card, providing independent conditioning for one or two proximity probes.

• Diagnostics: Includes built-in diagnostics to monitor probe health, such as checking for proper electrical connection (continuity) and detecting short circuits or open cables.

• Compatibility: Designed to work with standard Bently Nevada and compatible eddy-current probes (e.g., 5mm, 8mm, 11mm probes). Requires proper probe extension cables.

• Integration: Installs into a dedicated slot in a Bently Nevada 3500 rack. It communicates measurement values, alarms, and diagnostics to the rack’s main monitoring system and, subsequently, to a plant DCS or monitoring software (like System 1™).

Advantages and Key Features

• High Accuracy and Reliability: The BENTLY 125680-01 is engineered for precision measurement in critical applications, providing stable, low-noise signals essential for accurate vibration and position analysis.

• Robust Industrial Design: Built to withstand the high temperatures, vibrations, and electromagnetic interference present in power generation and industrial environments.

• Comprehensive Diagnostics: Proactive health monitoring of the sensor loop allows for predictive maintenance of the monitoring system itself, preventing false trips and identifying failing probes before they cause a loss of protection.

• Seamless System Integration: As a native component of the industry-standard 3500 system, it integrates flawlessly with other monitoring modules (e.g., for speed, temperature) and provides standardized outputs (4-20 mA, relay contacts) and communication protocols (Modbus, OPC) for plant integration.

• Proven Global Standard: The Bently Nevada 3500 system, and components like the 125680-01, are the de facto choice for machinery protection in critical industries worldwide, backed by extensive global service and support.

Application Cases in Various Fields

• Power Generation (Gas & Steam Turbines): Monitoring radial vibration of turbine shafts and axial thrust position of rotor assemblies to prevent rubbing and bearing failure.

• Oil & Gas (Centrifugal Compressors): Measuring shaft vibration and axial displacement on critical process compressors in refineries and pipelines.

• Petrochemical and Chemical Plants: Protecting large boiler feed pumps, induced draft fans, and reactor charge pumps from mechanical damage.

• Marine Propulsion: Monitoring main engine and reduction gearbox bearings on large vessels.

• Hydroelectric Power: Monitoring vibration and runout on generator shafts and turbine bearings.

Comparisons with Competing Products (e.g., Emerson CSI 9420, SKF Multilog, Meggitt Vibro-Meter)

• In favor of the BENTLY 125680-01 (3500 System): The Bently Nevada 3500 system is the most widely installed and recognized machinery protection system (MPS) for high-criticality applications. It is often specified for its proven track record, comprehensive diagnostics, and robust safety-focused architecture. The 125680-01 module benefits from this extensive ecosystem.

• Points to consider: Competitors offer capable vibration monitoring systems, sometimes at a lower initial cost or with different emphases (e.g., stronger emphasis on online diagnostics vs. pure protection). However, for greenfield projects in industries like power generation or major oil & gas, or for maintaining existing 3500 systems, the BENTLY 125680-01 is typically the specified and preferred choice.

Selection Suggestions and Precautions

1. System and Rack Compatibility: Verify that the BENTLY 125680-01 module is compatible with your specific 3500 rack model (e.g., 3500/42M) and firmware version. Using an incompatible module can cause system errors.

2. Probe and Cable Matching: Ensure the connected proximity probe and its extension cable are genuine Bently Nevada components or are precisely matched to the system’s electrical requirements (e.g., sensitivity, length). Mismatched components will result in inaccurate calibration and measurements.

3. Precise Calibration is Mandatory: The module must be calibrated with the specific probe and cable it will use in the field. This calibration sets the correct scale factor (mV/mil) for the vibration output. Never swap a probe or cable without re-calibrating.

4. Proper Grounding and Shielding: Follow Bently Nevada’s strict guidelines for grounding the probe cable shield at the rack only (not at the probe end). Improper grounding is a leading cause of noisy, unreliable signals.

5. Observe Probe Installation Guidelines: The accuracy of the 125680-01 depends entirely on proper probe installation: correct gap setting, perpendicular mounting, and a clean, machined target area on the shaft.

6. Procurement and Expertise: Source the BENTLY 125680-01 from authorized Baker Hughes Bently Nevada distributors or reputable specialists in industrial monitoring. Due to its critical role, avoid uncertified grey-market parts. Installation, calibration, and troubleshooting should be performed by personnel trained on the 3500 system.
