ALSTOM STO1726KO1

Description

Product Description

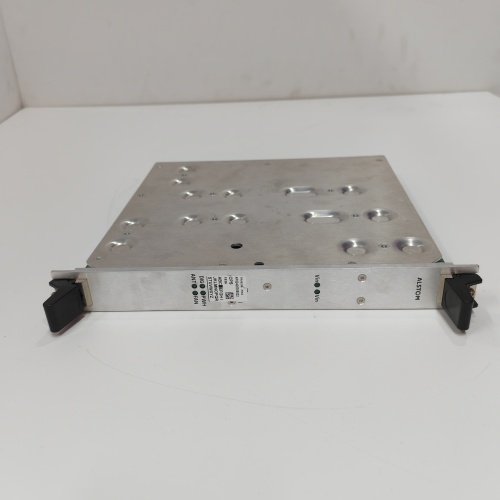

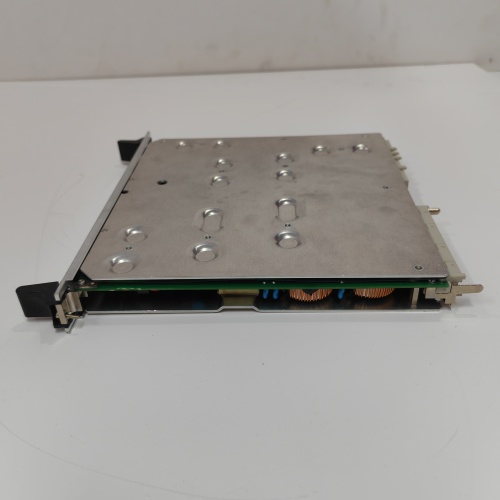

The ALSTOM STO1726KO1 is a high-performance module from Alstom’s (now part of GE Grid Solutions or other successor entities) extensive range of protection and control systems for electrical power networks. This specific module is part of the MICOM P34x series or a similar generation of advanced feeder management relays. The ALSTOM STO1726KO1 functions as a dedicated power supply or auxiliary module for these protection devices, providing the critical interface and conditioning between the station’s auxiliary power and the sensitive internal electronics of the relay. It ensures stable, clean, and reliable DC power delivery to the relay’s processing, input, and output circuits. For engineers maintaining or refurbishing legacy Alstom protection panels, identifying and sourcing the correct ALSTOM STO1726KO1 (Product Link) is crucial for system restoration. The robust design of the ALSTOM STO1726KO1 exemplifies the engineering quality required for critical protection equipment in substations and industrial power systems.

Product Parameters

• Product Type: Power Supply / Auxiliary Module for Protection Relay

• Brand & Series: ALSTOM, MICOM P34x series (e.g., P340, P342, P343) or similar

• Model: ALSTOM STO1726KO1

• Primary Function: Provides isolated and regulated DC power to the main relay board from an external auxiliary supply (e.g., 48/110/125/250V DC or 110/240V AC).

• Input Voltage Range: Wide-range input compatible with standard station auxiliary voltages (specific range to be verified by datasheet).

• Output Voltages: Generates the required stable, low-voltage DC rails (e.g., +5V, ±12V, +24V) for the relay’s digital and analog circuits.

• Isolation: Provides reinforced electrical isolation between the station battery/auxiliary supply and the relay’s internal electronics for safety and noise immunity.

• Protections: Likely includes input fuse protection, overvoltage, and short-circuit protection on its outputs.

• Mounting: Plugs into a dedicated slot or connects via terminals on the main relay chassis.

• Status Indication: May include LED indicators for power status.

Advantages and Features

The ALSTOM STO1726KO1 provides key advantages for protection system reliability. Its core feature is Wide-Range Input Compatibility, allowing the same relay hardware to be deployed in substations with different auxiliary voltage standards without modification. It delivers High-Quality, Stable Power, which is fundamental for the accurate and reliable operation of the relay’s measurement and protection algorithms. The module offers Electrical Isolation and Noise Immunity, protecting sensitive relay circuits from transients and disturbances on the station battery. Its Compact and Integrated Design simplifies the overall relay architecture and improves serviceability, as the power supply can be replaced independently. For maintaining legacy systems, the availability of an authentic ALSTOM STO1726KO1 (Product Link) ensures Direct and Guaranteed Compatibility, avoiding potential issues from using non-OEM substitutes.

Application Cases in Various Fields

This power supply module is used within Alstom MICOM relays installed in electrical power infrastructure.

• Transmission & Distribution Substations: Providing power to feeder protection relays (P34x) on outgoing lines in utility substations.

• Industrial Power Plants (Cogeneration): Used in relays protecting the connection to the grid or internal medium-voltage feeders.

• Railway Electrification: Supplying power to protection relays managing traction power supply sections.

• Large Industrial Facilities (Steel, Chemical): Found in protection relays for main incoming feeders and large transformer circuits within the plant’s high-voltage switchgear.

• Renewable Energy Substations: Part of the protection scheme for connecting solar or wind farms to the transmission network.

Comparison with Competing Products

The ALSTOM STO1726KO1 is a proprietary component for specific Alstom relay families. Its direct competitors are the power supply modules from other protection relay manufacturers of the same era, such as Siemens (for SIPROTEC 4), ABB (for RELx00 series), or Areva (for Px40 series). The competition is at the system level. Compared to a generic DC/DC converter, the ALSTOM STO1726KO1 is engineered to meet the specific voltage, ripple, isolation, and form-factor requirements of the host relay. Its value lies in its guaranteed interoperability and reliability within the Alstom system. Generic replacements may not fit mechanically, may have different pinouts, or may not provide the same level of filtering, potentially leading to relay malfunction or unreliable operation.

Selection Suggestions and Precautions

• Selection Suggestions:

  1. Identify Host Relay: The most critical step is to identify the exact model of the protection relay (e.g., MICOM P342, P343) that this module is part of. The ALSTOM STO1726KO1 is a sub-component.

  2. Verify Auxiliary Voltage: Confirm the station’s auxiliary supply voltage (e.g., 110V DC, 48V DC, 220V AC) to ensure compatibility, even if the module has a wide input range.

  3. Check for Kits or Assemblies: Sometimes this part is sold as part of a service kit that includes other related components (connectors, fuses).

  4. Consult Legacy Documentation: Refer to the relay’s hardware manual or spare parts list for the correct ordering code and compatibility information.

• Precautions:

  1. De-energize Before Service: Always isolate both the primary circuit (open the circuit breaker) and the auxiliary supply voltage to the relay before attempting to remove or install the ALSTOM STO1726KO1.

  2. ESD Handling: Handle the module as a static-sensitive device. Use an anti-static wrist strap and place the module on an anti-static surface.

  3. Inspect Connectors: Before installation, inspect the edge connectors on the module and the corresponding socket on the relay main board for any bent pins or debris.

  4. Observe Orientation: Note the correct orientation of the module before insertion. Forcing it in the wrong way can cause permanent damage.

  5. Source OEM or Certified Parts: Always aim to source the genuine ALSTOM STO1726KO1 (Product Link) from authorized GE Grid Solutions channels or certified legacy parts specialists. Using a non-OEM power supply risks damaging the expensive main relay processor board and can compromise the protection system’s integrity, leading to a failure to operate during a fault.
