Introduction and Product Overview

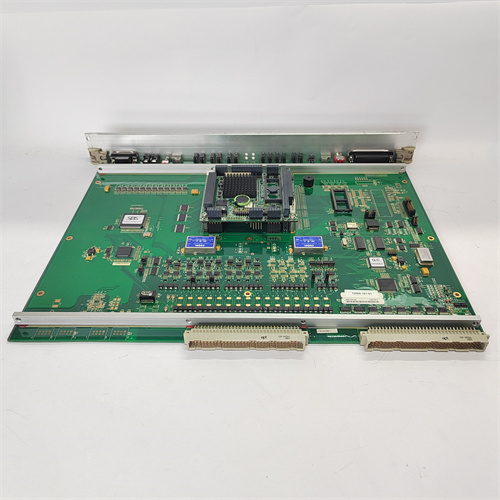

The ALSTOM SDK-C0148 (also referenced as 12003-101-01 and SBS05M09B) is a Controller or Interface Module for Alstom railway signaling and interlocking systems, such as those within the Smartlock or SACEM product families. This is not a standard industrial PLC module but a highly specialized, safety-critical component used in train control and track-side automation. Its primary function is to execute logic related to vital signaling functions—such as controlling track switches (points), reading track circuit occupancy, or managing signal aspects—based on inputs from other safety systems and operators. The module is designed to meet the stringent reliability and fail-safe standards (e.g., CENELEC EN 50126/128/129) required in railway applications. For detailed safety and application logic, the official Alstom system documentation for the SDK-C0148 is essential.
Technical Parameters and Characteristics
Given its safety-critical railway application, the SDK-C0148 module is characterized by redundant architecture and robust design:
-
Function: Vital Controller or Communication Interface Module for Railway Interlocking.
-
System Architecture: Likely employs a 2-out-of-2 (2oo2) or similar redundant processing architecture, where two independent channels execute the same logic and must agree before an output command is issued. This is a cornerstone of railway safety design.
-
Processing: Contains dual microprocessors, independent memory, and logic for continuous self-testing and cross-comparison to detect and react to any internal faults.
-
I/O Interface: Provides interfaces for connecting to vital field elements such as switch machines, track circuits, and signals via relays or solid-state output modules.
-
Communication: Features secure, protocol-specific communication ports (often proprietary or based on standards like FSK or IEC 60870-5) to communicate with adjacent interlockings, control centers, or Automatic Train Protection (ATP) systems.
-
Environmental Rating: Built to withstand extreme environmental conditions typical of rail-side installations, including wide temperature ranges, humidity, vibration, and electromagnetic interference (EMI).
-
Certification: Certified according to relevant CENELEC SIL (Safety Integrity Level) standards, most likely SIL 4, which is the highest level for railway signaling.
Key Advantages and Features
The design of the ALSTOM SDK-C0148 focuses on absolute safety and availability:
-
Ultra-High Safety Integrity (SIL 4): The module’s redundant architecture and continuous self-diagnostics are engineered to achieve the extremely low probability of dangerous failure required for protecting human life, which is the paramount concern in railway signaling.
-
Deterministic and Fail-Safe Operation: Every operation is predictable and time-bound. In the event of any detected fault (hardware, software, or disagreement between channels), the SDK-C0148 is designed to default to a pre-defined safe state (e.g., signaling “stop”), ensuring fail-safe behavior.
-
Robustness for Harsh Environments: Its construction is tailored for the relentless demands of railway infrastructure, ensuring reliable operation over decades with minimal maintenance, despite exposure to the elements and electrical noise from traction power systems.
-
Proven System Integration: As a core component of Alstom’s integrated signaling solutions, the SDK-C0148 is validated to work seamlessly with other system components (trackside equipment, control desks), reducing integration risk and ensuring overall system coherence.
Application Cases in Various Fields
This module is used exclusively in railway signaling and control systems:
-
Mainline Railway Interlockings: Serving as a vital controller within a geographic interlocking, controlling signals and switches for a specific station or track section.
-
Metro and Urban Transit Systems (e.g., SACEM): As part of the Automatic Train Control (ATC) system, managing train movement authority and routing in high-density environments.
-
Tram and Light Rail Control: In vital control systems for at-grade and segregated right-of-way operations.
Comparison with Competing Products
The ALSTOM SDK-C0148 competes with vital control modules from other railway signaling giants:
-
Siemens (SIMIS/Winlock) vital computer systems.
-
Hitachi Rail (ex-Ansaldo STS) vital controllers.
-
Bombardier (now Alstom) CITYFLO and EBI Lock systems.
Competition in this field is less about price and more about system-wide performance, project delivery capability, and long-term support. The SDK-C0148‘s advantage is its position within Alstom’s comprehensive, proven signaling portfolio, which is often selected for large-scale turnkey projects.
Selection Suggestions and Precautions
Working with this class of component is restricted to highly specialized railway signaling engineers and technicians:
-
Safety-Critical System Component: The SDK-C0148 is part of a vital safety system. Its selection, configuration, and maintenance are governed by rigorous national and international safety standards and regulations. It cannot be treated as general automation hardware.
-
OEM-Specific Ecosystem: The module is only usable within its designated Alstom system architecture. It requires specific Alstom engineering tools, software, and documentation for configuration and testing.
-
Strict Configuration Management: Any change to the application logic or parameters running on the SDK-C0148 is subject to a formal, document-heavy change control process, including impact analysis, re-verification, and re-validation.
-
Specialized Testing Requirements: Testing requires specialized vital test equipment and procedures. Testing must prove not only that the module functions correctly but also that it fails in a predictable, safe manner under all fault conditions.
-
Licensed Personnel Only: Installation, testing, and maintenance must be performed by personnel specifically trained and certified on the Alstom system. Unauthorized work voids safety certifications and creates extreme hazard.
