ALSTOM N897093511D N897093051D DIAGNOSTICA N897093400H

Description

Product Description

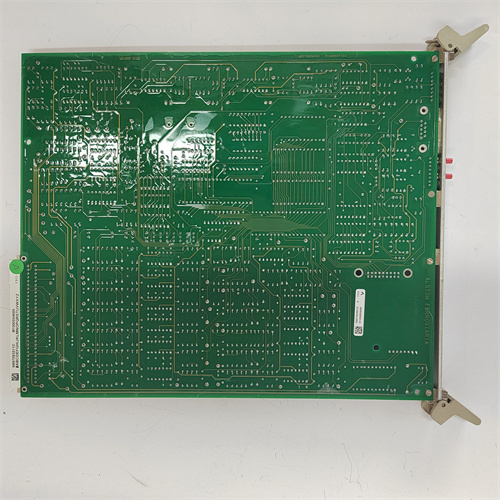

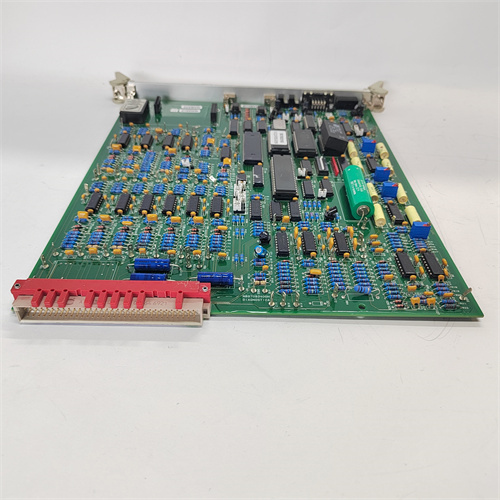

The ALSTOM N897093511D N897093051D DIAGNOSTICA N897093400H is a comprehensive set of part numbers identifying a sophisticated diagnostic subsystem or unit within an Alstom control system, most likely for railway applications. This cluster represents a fully-configured diagnostic module where N897093511D and N897093051D are specific sub-modules (e.g., processor, interface cards), DIAGNOSTICA denotes its primary function, and N897093400H is likely the main chassis or base unit. The primary purpose of the ALSTOM N897093511D N897093051D DIAGNOSTICA N897093400H assembly is to acquire, process, store, and communicate detailed system health and fault data from various vehicle subsystems. Integrating this dedicated diagnostic unit is crucial for implementing advanced maintenance strategies and ensuring high vehicle availability. The complete N897093511D N897093051D DIAGNOSTICA N897093400H package provides a centralized and intelligent solution for condition monitoring.

Product Parameters

• Manufacturer / Brand: Alstom

• Product Type: Diagnostic Unit / Condition Monitoring System

• Component Parts:

  • N897093511D: Likely a high-capacity data storage module or a specific communication gateway card.

  • N897093051D: Probable a signal acquisition or processing card for analog/digital inputs.

  • DIAGNOSTICA: Functional designation for the diagnostic unit.

  • N897093400H: Likely the main enclosure, backplane, or power supply unit for the diagnostic assembly.

• Primary Function: Centralized collection, analysis, and storage of diagnostic data from traction, braking, door, HVAC, and other onboard systems.

• Data Acquisition Interfaces: Connects to various vehicle networks (MVB, CAN) and possibly has direct analog/digital inputs for specific sensors.

• Data Storage: Incorporates substantial non-volatile memory (e.g., solid-state storage) for long-term fault logging, event sequences, and trend data.

• Communication Ports: Features ports for external data download (e.g., Ethernet, USB) and for communication with the central train control unit and ground-based systems.

• Processing Power: Includes a dedicated processor to run diagnostic algorithms, perform data compression, and generate health reports.

• Environmental Specification: Built to railway standards (EN 50155) for vibration, temperature, and EMC.

Advantages and Features

• Centralized Diagnostic Hub: The ALSTOM N897093511D N897093051D DIAGNOSTICA N897093400H consolidates fault data from across the vehicle, providing a single point of access for maintenance crews.

• Advanced Condition Monitoring: Enables predictive maintenance by tracking performance trends and identifying degradation before a functional failure occurs.

• High-Resolution Data Logging: Capable of recording detailed event sequences and waveform data (oscillography) for complex fault analysis.

• Offline Analysis Support: Large internal storage allows for data to be collected over long periods and downloaded in the depot for in-depth engineering analysis.

• Improved Maintenance Efficiency: Dramatically reduces troubleshooting time by pinpointing the faulty subsystem and often the specific component, guiding repair actions.

• Fleet Management Enabler: Collected data can be used for fleet-wide analysis to identify common issues and optimize maintenance schedules.

Application Cases in Key Fields

• Modern Rail Vehicle Maintenance: Installed on metros, trams, and mainline trains as the core of the onboard diagnostic system, interfacing with all major subsystems.

• Fleet Health Management: Data from the DIAGNOSTICA unit is downloaded in depots and fed into fleet management software to plan workshops visits and component replacements proactively.

• Warranty and Reliability Analysis: Provides irrefutable data for root cause analysis of failures, supporting discussions between operators and manufacturers.

• Test and Commissioning: Used during the commissioning of new vehicles to verify system performance and log any initial teething problems.

Comparison with Competing Products

Competing products are diagnostic units from other rolling stock OEMs like Siemens (SIBAS® Diagnostic System) or Bombardier. The ALSTOM N897093511D N897093051D DIAGNOSTICA N897093400H is deeply integrated into the Alstom vehicle architecture, with predefined data points and parsing for Alstom-specific subsystems. Competing generic data loggers or condition monitoring systems from companies like National Instruments or Dewesoft offer greater flexibility but require significant engineering to interface with proprietary vehicle networks and interpret the data. The Alstom solution’s key advantage is its out-of-the-box functionality and native understanding of the vehicle’s “language,” providing actionable insights immediately.

Selection Suggestions and Precautions

• Treat as a Complete System: These components are a matched set. The N897093511D and N897093051D modules are designed to work specifically with the N897093400H base unit. They must be procured and replaced as an assembly.

• Software and Configuration are Key: The hardware is a platform. Its value is derived from the diagnostic application software and the specific configuration database for the vehicle type. Ensure access to this software and the correct configuration files.

• Verify Vehicle Network Compatibility: Confirm that the diagnostic unit’s communication interfaces (MVB, CAN channels) match the network topology and protocols used on the specific vehicle.

• Data Management Strategy: Have a plan for the volume of data generated. This includes procedures for regular data download, storage, archiving, and analysis.

• Cybersecurity Considerations: As a system connected to critical control networks, ensure its configuration follows cybersecurity guidelines to prevent unauthorized access.

• Source from Authorized Service Partners: Given its complexity and integration depth, procurement and technical support should be sought through Alstom’s official service network to ensure version compatibility and system integrity.
