ALSTOM LC105A-1

Description

Product Description

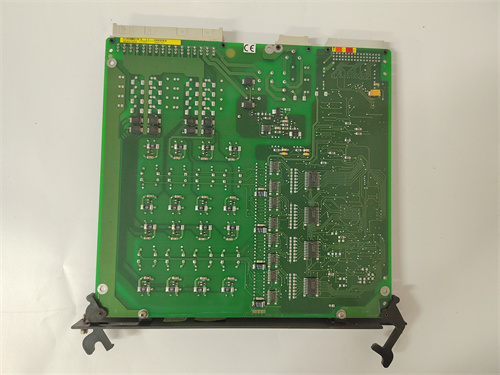

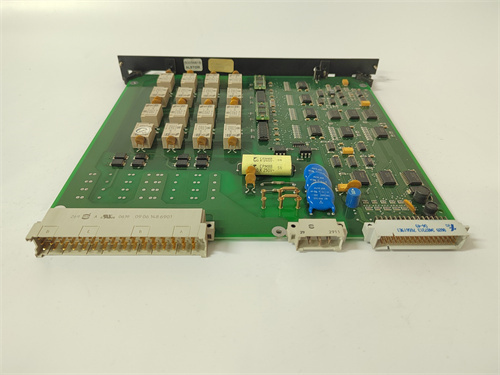

The ALSTOM LC105A-1 is a robust and reliable logic control module from Alstom’s (now part of GE Vernova) industrial automation component range. Functioning as a Logic Controller (LC) or dedicated interlock unit, this module is designed to execute hardwired safety and sequencing logic independently from a central programmable controller. The primary role of the ALSTOM LC105A-1 is to process discrete input signals from devices such as limit switches, pressure transmitters, and pushbuttons, and based on a fixed internal logic (e.g., AND, OR, timing functions), control output relays that command contactors, solenoid valves, or alarm devices.

Product Parameters

• Model: ALSTOM LC105A-1.

• Function: Hardwired Logic Controller / Interlock Module.

• Input Channels: Typically features multiple isolated DC input channels (e.g., 4, 8, or 12) for 24V DC or 110V DC signals.

• Output Channels: Equipped with a corresponding number of relay contact outputs, often with changeover (SPDT) contacts rated for industrial loads (e.g., 5-10A at 250V AC).

• Logic Configuration: Implements fixed logic functions. Configuration is achieved through physical wiring of inputs and outputs according to a provided logic diagram, not via software.

• Timing Functions: May include built-in on-delay or off-delay timer functions adjustable via potentiometers or DIP switches.

• Power Supply: Operates on a standard control voltage, commonly 24V DC, 48V DC, or 110V DC.

• Response Time: Provides extremely fast, millisecond-level response, independent of any network or processor scan cycle.

• Fail-Safe State: Designed to de-energize all outputs upon loss of control power, driving the connected process to a safe state.

• Mounting: Standard DIN-rail mounting design.

Advantages and Features

• Ultra-High Reliability and Determinism: As a hardware-based device, the ALSTOM LC105A-1 offers completely predictable and fail-safe operation, immune to software corruption, network issues, or PLC program changes.

• Inherent Safety Design: The de-energize-to-trip philosophy ensures that any failure within the module or loss of power results in a safe shutdown of the controlled equipment.

• Excellent Noise Immunity: The robust design provides high immunity to electromagnetic interference (EMI) and voltage spikes, preventing nuisance trips in electrically noisy industrial environments.

• Ease of Understanding and Verification: The logic is transparent and visible in the wiring, making it easy for electricians and safety auditors to understand, verify, and troubleshoot without specialized programming software.

• Independent Safety Layer: Provides a physically and logically separate control path from the primary PLC, which is a fundamental requirement for many safety-related functions and can simplify safety certification.

Application Cases in Relevant Fields

• Machine Safety Guarding: The ALSTOM LC105A-1 is a core component in safety relay systems, implementing logic for emergency stop (E-stop) circuits and safety gate monitoring, ensuring machinery cannot operate when guards are open.

• Turbine and Compressor Permissive Sequencing: Used to create hardwired permissive logic for large rotating equipment, such as ensuring auxiliary systems (lube oil, cooling water) are proven operational before allowing a master start command to pass through.

• Burner Management System (BMS) Safety Shutdown: Implements critical flame safety and valve sequencing logic for industrial burners, providing a reliable hardware-based layer that meets stringent safety standards.

• Critical Pump and Motor Interlocks: Provides reliable interlocking between related pieces of equipment, such as preventing a main pump from starting if its associated auxiliary pump has failed.

Comparisons with Competing Products

When compared to safety PLCs or programmable safety relays (e.g., Pilz PNOZ, Siemens SIMATIC Safety), the ALSTOM LC105A-1 represents a more basic, hardware-focused approach.

• Simplicity vs. Flexibility: The ALSTOM LC105A-1 is simpler, often more cost-effective, and easier to validate for a fixed, well-defined function. However, it lacks the programmability, diagnostic depth, and complex function blocks of a modern safety PLC.

• Verification and Compliance: Its fixed logic can be easier to document and validate for specific applications. In contrast, safety PLCs offer advanced, certified function blocks but require more rigorous software validation.

• Application Scope: It is ideal for straightforward interlocking, permissive, and trip functions. For complex safety functions with multiple zones, muting, or intricate sequences, a programmable safety system is more appropriate. For a simple, robust, and verifiable hardware interlock, the ALSTOM LC105A-1 is a proven choice.

Selection Suggestions and Precautions

1. Define the Logic Function Precisely: Before installation, create a clear logic diagram (e.g., using ladder logic or Boolean equations) that defines exactly how the ALSTOM LC105A-1 should behave based on all possible input states.

2. Verify Voltage Ratings and Contact Capacity: Match the input voltage rating with your sensor signals and ensure the output relay contacts are rated for the voltage and inrush current of the load (contactor coil, solenoid) they will control.

3. Study the Manufacturer’s Wiring Diagram: Obtain and meticulously follow the specific wiring diagram for the ALSTOM LC105A-1. Incorrect wiring of the internal logic links will cause malfunction.

4. Source from Authorized Safety Component Suppliers: Purchase from GE Vernova authorized distributors or certified suppliers of industrial safety equipment. The integrity of a safety circuit is paramount.

5. Implement Proper Testing and Documentation: After wiring, rigorously test all possible input conditions (including fault simulations like wire break) to verify correct output response. Document this testing as part of the safety validation.

6. Consider Redundancy for Higher Safety Integrity: For applications requiring a higher Safety Integrity Level (SIL), a single ALSTOM LC105A-1 may not be sufficient. The architecture may need redundant modules or diverse components as per relevant standards (e.g., IEC 61508, IEC 62061).
