ALSTOM DSI1817 TRVC062335000 CP00003934

Description

Product Description

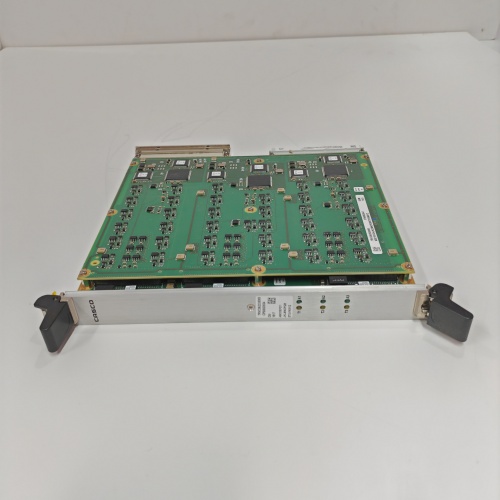

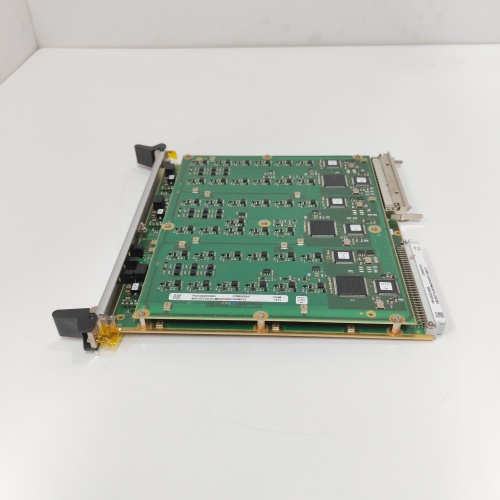

The ALSTOM DSI1817 TRVC062335000 CP00003934 is a complex and highly specialized spare part assembly from Alstom’s (now Hitachi Energy) portfolio, specifically related to their DSI (Digital Speed Input) systems used in critical steam or gas turbine control and protection. This assembly, with core model DSI1817, is a sophisticated electronic module that processes digital pulse signals from magnetic pickups or speed probes mounted on a turbine shaft. Its primary function is to accurately calculate and monitor the rotational speed of the turbine, providing vital data for overspeed protection, synchronization, and control logic. The complete ordering code, including TRVC062335000 and CP00003934, defines the exact configuration, revision, and manufacturing details of this specific unit. For precise technical documentation and safety instructions, please visit the official resource page for the ALSTOM DSI1817 TRVC062335000 CP00003934. The reliability and precision of the ALSTOM DSI1817 system are paramount for the safe and efficient operation of large rotating machinery.

Product Parameters

• Product Family: Digital Speed Input (DSI) Module for Turbine Control.

• Core Model: DSI1817.

• Full Assembly Code: TRVC062335000 CP00003934 (defines hardware revision, software version, and specific assembly characteristics).

• Input Signals: Accepts digital pulse signals from two or three independent magnetic speed sensors (proximity probes) for redundancy.

• Function: Processes raw pulse trains to compute precise rotational speed (RPM), acceleration, and phase angle. Provides overspeed detection and voting logic between multiple sensor channels.

• Outputs: Provides processed speed signals (e.g., as analog 4-20mA, digital pulses, or via a communication bus) to the turbine control system (e.g., Alspa, Micrexx) and emergency trip system.

• Communication: Likely includes interfaces to integrate with the overall turbine control and protection network.

• Power Supply: Requires a specific DC supply voltage as per its design specifications.

• Mounting: Designed as a rack-mounted module or a standalone unit within a turbine control cabinet.

Advantages and Features

The ALSTOM DSI1817 TRVC062335000 CP00003934 offers critical advantages for turbine safety and control. Its primary feature is high-accuracy, redundant speed measurement, which is the fundamental input for overspeed protection—the most critical safety function on a turbine. The module employs sophisticated signal conditioning and voting logic to ensure reliability even if one sensor fails. It is engineered for extreme reliability and immunity to electrical noise in the harsh environment of a power plant. The ALSTOM DSI1817 system is a fully integrated and validated component of Alstom/Hitachi Energy’s turbine control solutions, ensuring seamless operation and maintaining the original equipment manufacturer’s (OEM) performance and safety certifications. Its design prioritizes fail-safe operation to protect multi-million dollar assets.

Application Cases in Various Fields

• Power Generation (Fossil & Nuclear): Serving as the core digital speed input module within the control and protection system of large steam turbines or gas turbines in utility power plants.

• Industrial Turbomachinery: Used in turbine control systems for compressors or mechanical drive turbines in oil & gas refineries, petrochemical plants, and pipeline stations.

• Marine Propulsion: Providing critical speed monitoring and protection for main propulsion turbines on large naval or commercial vessels.

• System Overhaul and Maintenance: The ALSTOM DSI1817 TRVC062335000 CP00003934 is almost exclusively sourced as a replacement unit during scheduled maintenance, system upgrades, or to replace a faulty module in an existing, operational turbine control system.

Comparison with Competing Products

As an OEM-specific subsystem for turbine control, the ALSTOM DSI1817 does not have direct interchangeable third-party equivalents. The relevant comparisons are:

1. OEM Genuine vs. Third-Party Rebuild: A genuine DSI1817 assembly ensures perfect compatibility, calibrated performance, and adherence to the original safety case. Third-party rebuilt units may not have the same level of testing or certification, posing a potential risk to turbine safety and availability.

2. Module-Level vs. System Upgrade: Replacing this specific module maintains the existing architecture. The alternative is a wholesale upgrade of the entire turbine control system to a modern platform from Alstom/Hitachi Energy or a competitor like Woodward or GE, which is a major capital project.

3. Technology Generations: Compared to older analog tachometer systems, the DSI1817 represents advanced digital processing, offering higher accuracy, better diagnostics, and integration capabilities.

Selection Suggestions and Precautions

1. OEM-Specific Replacement: This part is exclusively for replacing an identical module in an existing Alstom/Hitachi Energy turbine control system. The ordering code must match exactly with the unit being replaced.

2. Critical Safety Function: Recognize that this module is part of a Safety Instrumented System (SIS). Any work on it must follow the plant’s strict safety and management of change (MOC) procedures.

3. Expertise Mandatory: Installation, configuration, and testing must be performed by or under the direct supervision of specialized turbine control engineers, often from the OEM’s field service team.

4. Sensor Compatibility: Ensure the existing speed probes and cabling are compatible and in good condition. The performance of the DSI1817 depends on proper input signal quality.

5. Calibration and Testing: After replacement, the entire speed measurement and protection chain (sensor, cable, DSI1817 module, trip relays) must be rigorously tested and calibrated according to OEM procedures before the turbine is returned to service.
