Product Description

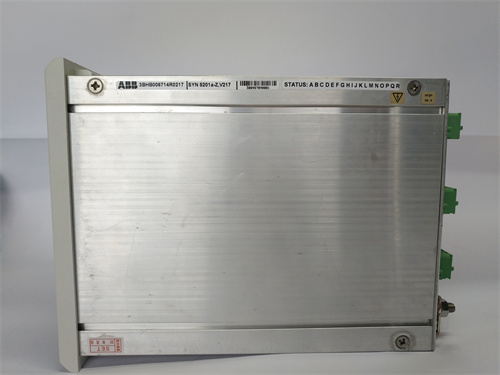

ABB SYN5201 is a high-performance industrial PLC synchronization and timing module, developed as a core component of ABB’s advanced automation ecosystem, tailored to meet the rigorous precision timing demands of large-scale, multi-device industrial control systems. Engineered with cutting-edge clock synchronization technology and rugged industrial-grade hardware, ABB SYN5201 specializes in delivering precise, synchronized timing signals to distributed PLCs, sensors, and actuators, ensuring seamless coordination of complex sequential processes across entire production lines. What sets ABB SYN5201 apart from standard timing modules is its ultra-high synchronization accuracy and broad protocol support, enabling stable operation in harsh industrial environments with extreme temperatures, electromagnetic interference, and mechanical vibration. Whether integrated into new large-scale automation setups or used for upgrading legacy systems, ABB SYN5201 offers plug-and-play compatibility with existing ABB control infrastructure (including ABB AC 800M and Compact Control Builder), reducing deployment time and operational disruptions. The superior synchronization precision, reliability, and long-term durability of ABB SYN5201 make it a trusted choice for industries where process coordination directly impacts production efficiency and product quality, delivering tangible value by minimizing synchronization errors and maximizing operational consistency.
Product Parameters
| Parameter Category | Specific Specifications |
|---|---|
| Brand & Model | ABB SYN5201 |
| Compatible System | ABB AC 800M, ABB Compact Control Builder, ABB Industrial IT Systems |
| Operating Voltage | 24VDC ±10% |
| Operating Temperature Range | -25°C to 70°C |
| Synchronization Accuracy | ≤1µs (per IEEE 1588 PTPv2) |
| Timing Protocols Supported | IEEE 1588 PTPv2, NTP, SNTP, IRIG-B |
| Communication Interfaces | 2 x Gigabit Ethernet Ports (RJ45), 1 x RS-485 Serial Port |
| Power Consumption | ≤7W (Typical Load); ≤10W (Max Load) |
| Physical Dimensions | 98mm × 78mm × 59mm (L×W×H) |
| Protection Level | IP20 (Panel-Mounted) |
| Mean Time Between Failures (MTBF) | ≥160,000 Hours |
| Certifications | CE, UL 508, IEC 61131-2, ISO 9001 |
| Terminal Type | Spring-Clamp Terminals (0.5-2.5mm² Wire Gauge) |
| Fault Protection | Built-in overvoltage, short-circuit, and signal loss detection |
Advantages and Features
- Ultra-High Synchronization Precision: ABB SYN5201 achieves synchronization accuracy of ≤1µs via IEEE 1588 PTPv2, ensuring millisecond-level coordination of distributed devices—critical for high-precision processes such as automotive assembly, semiconductor manufacturing, and continuous production lines.
- Multi-Protocol Timing Support: The module supports four mainstream timing protocols (IEEE 1588 PTPv2, NTP, SNTP, IRIG-B), enabling seamless integration with diverse industrial systems and legacy equipment, eliminating the need for additional protocol conversion modules.
- Rugged Industrial Design: Built with reinforced industrial-grade components, ABB SYN5201 withstands extreme temperatures, electromagnetic interference, and mechanical vibration, maintaining stable timing performance in harsh environments like steel mills, petrochemical plants, and offshore facilities.
- Dual Gigabit Ethernet Interfaces: Equipped with two Gigabit Ethernet ports, the module enables redundant network connections, ensuring uninterrupted timing signal transmission and enhancing the reliability of critical control systems.
- Seamless ABB Ecosystem Integration: Customized for ABB’s core control platforms, the module integrates flawlessly with other ABB PLC components, software, and accessories, reducing system commissioning time and eliminating compatibility issues.
Application Cases in Application Fields
- Automotive Smart Production Lines: A leading European automaker deployed ABB SYN5201 across its EV chassis assembly lines. The module synchronized robotic arms, welding machines, and quality inspection devices, reducing assembly errors by 18% and improving production line throughput by 12%.
- Semiconductor Manufacturing: A global semiconductor company integrated ABB SYN5201 into its wafer fabrication facilities. The module’s ≤1µs synchronization accuracy ensured precise coordination of lithography and etching equipment, reducing wafer defect rates by 20% and complying with strict semiconductor quality standards.
- Petrochemical Pipeline Networks: A Middle Eastern oil company used ABB SYN5201 to synchronize its cross-border pipeline monitoring system. The module’s multi-protocol support and stable timing signals enabled real-time data alignment across remote pumping stations, reducing pipeline maintenance costs by 15%.
- Smart Grid Energy Distribution: A North American power utility adopted ABB SYN5201 in its regional smart grid system. The module synchronized power meters, protection relays, and grid controllers, improving grid stability and reducing power outage duration by 22%.
Comparisons with Competing Products
| Comparison Dimension | ABB SYN5201 | Competitor Product BR (Similar Synchronization Module) | Competitor Product BS (Similar Synchronization Module) |
|---|---|---|---|
| Synchronization Accuracy | ≤1µs (IEEE 1588 PTPv2) | ≤5µs (IEEE 1588 PTPv2) | ≤3µs (IEEE 1588 PTPv2) |
| Supported Timing Protocols | 4 (IEEE 1588 PTPv2, NTP, SNTP, IRIG-B) | 2 (NTP, SNTP) | 3 (IEEE 1588 PTPv2, NTP, SNTP) |
| Ethernet Interface | 2 x Gigabit Ports | 1 x Fast Ethernet Port | 1 x Gigabit Port |
| MTBF Rating | ≥160,000 Hours | 100,000 Hours | 115,000 Hours |
| Power Consumption (Typical) | 7W | 11W | 9W |
| Fault Protection | Overvoltage, short-circuit, signal loss detection | Basic short-circuit protection | Overvoltage protection only |
Selection Suggestions and Precautions
- Selection Suggestions:
- Prioritize ABB SYN5201 if your automation system is based on ABB AC 800M or Compact Control Builder, as it guarantees seamless integration and optimal synchronization performance without additional adapters.
- Choose this module for high-precision coordination scenarios (e.g., semiconductor manufacturing, automotive smart lines) due to its ≤1µs synchronization accuracy and multi-protocol support.
- Opt for ABB SYN5201 for redundant network setups, thanks to its dual Gigabit Ethernet interfaces that ensure uninterrupted timing signal transmission.
- Precautions:
- Ensure the input voltage strictly adheres to the 24VDC ±10% range to prevent damage to the module’s internal timing circuits and fault protection components.
- During installation, configure the appropriate timing protocol (e.g., IEEE 1588 PTPv2 for high precision) via ABB’s official software to match your system’s requirements.
- Use only genuine ABB Ethernet cables and connectors when connecting ABB SYN5201 to maintain signal integrity and synchronization accuracy.
- Regularly update the module’s firmware via ABB’s official software platform to access the latest timing algorithm upgrades, security patches, and protocol enhancements.
- Maintain a minimum 5cm clearance around the module for heat dissipation, especially in high-temperature working environments, to avoid overheating and degradation of timing performance.
