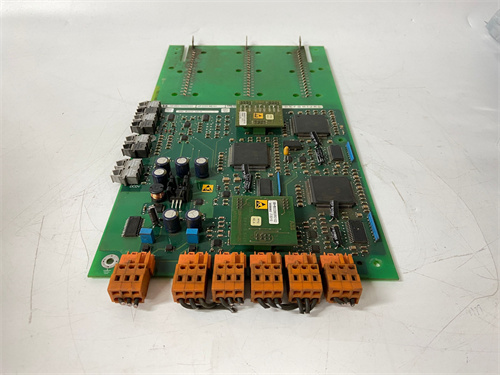

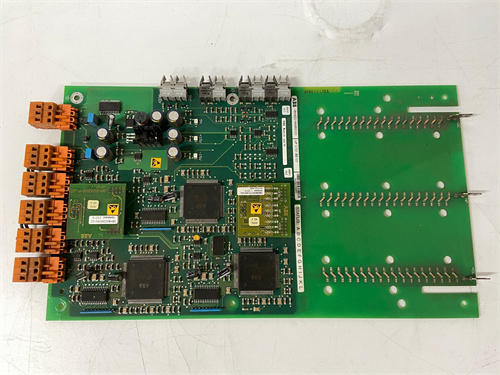

ABB UFC721BE101 3BHE021889R0101

Description

Product Overview

The ABB UFC721BE101 3BHE021889R0101 is a highly advanced and fully configurable field controller and process interface module, serving as a key component within the ABB Freelance distributed control system (DCS). This powerful device combines the functions of a process controller, I/O subsystem manager, and communication gateway in a single, compact unit. The ABB UFC721BE101 3BHE021889R0101 is designed to execute control loops, logic sequences, and operator faceplates locally, providing a robust and scalable solution for mid-range process automation applications. As a core element of the AC 700F controller series, it bridges the gap between compact PLCs and large-scale DCS, offering an integrated engineering environment. The reliability and versatility of the ABB UFC721BE101 3BHE021889R0101 make it a cornerstone for building efficient control strategies in industries ranging from water treatment to chemical processing and building automation.

Product Parameters and Specifications

• Manufacturer: ABB

• Product System: Freelance DCS, AC 700F Controller Series.

• Module Type: Field Controller with Integrated I/O and Communication.

• Processor: Features a dedicated microprocessor for deterministic control execution.

• Integrated I/O: Contains a fixed number of onboard digital and analog input/output channels (specific counts defined by the ‘BE101’ suffix). These typically include:

  • Digital Inputs (DI)

  • Digital Outputs (DO)

  • Analog Inputs (AI)

  • Analog Outputs (AO)

• Expandability: Supports connection of additional, modular I/O units via a local fieldbus (e.g., PROFIBUS DP) to create a distributed I/O system.

• Communication Interfaces: Equipped with multiple ports for system integration:

  • Ethernet port for engineering and integration into the plant network.

  • PROFIBUS DP master/slave interface for connecting remote I/O or drives.

  • Serial interface (RS-485) for MODBUS RTU slave/master communication.

• Programming/Configuration: Fully programmed and configured using ABB’s Freelance Engineering (or later, Control Builder Freelance) software, which supports all IEC 61131-3 programming languages and continuous function chart (CFC).

• Power Supply: Operates on 24V DC.

• Ordering Code: 3BHE021889R0101 is the specific article number for this hardware configuration.

Advantages and Key Features

1. All-in-One Integrated Solution: The ABB UFC721BE101 3BHE021889R0101 integrates the controller, power supply, communication, and a base set of I/O into one compact device, significantly simplifying cabinet design, reducing wiring, and lowering overall system cost.

2. Deterministic and Reliable Performance: As a dedicated process controller, it guarantees fast and predictable scan times for control loops and logic, which is essential for consistent product quality and process safety in continuous or batch operations.

3. Seamless Freelance DCS Integration: It is a native component of the Freelance system, offering a unified engineering and operator interface environment. This includes integrated configuration, debugging, diagnostics, and the automatic generation of process graphics (faceplates) from the control logic.

4. Flexible Connectivity: Its built-in PROFIBUS DP and MODBUS capabilities allow for easy integration of a wide array of field devices, remote I/O stations, variable speed drives, and third-party PLCs, making the ABB UFC721BE101 3BHE021889R0101 a versatile hub for plant floor communication.

5. Robust Design for Industrial Environments: Built to withstand typical industrial conditions with a wide operating temperature range and high immunity to electrical noise, ensuring reliable operation in demanding settings.

Application Case Studies

• Wastewater Treatment Plant: The ABB UFC721BE101 3BHE021889R0101 is used as the main controller for a sequencing batch reactor (SBR). It executes the timed sequence for fill, aerate, settle, and decant phases, controlling pumps, blowers, and valves via its onboard and expanded I/O, while communicating MODBUS data to the central SCADA.

• HVAC and Building Automation for a Large Facility: In a university campus, these controllers manage individual building heating and cooling plants. They run PID loops for temperature control, manage pump sequences, and provide alarm monitoring, all while being networked over Ethernet for centralized supervision.

• Small to Medium Batch Chemical Process: In a specialty chemicals unit, the controller manages a multi-step recipe-driven batch process. It handles analog control of reactor temperature and pressure, discrete sequencing of feed valves, and integrates safety interlocks, all within a single, cohesive programming environment.

Comparison with Competing Products

Selection Suggestions and Important Notes

• Selection Suggestion:

  • Choose the ABB UFC721BE101 3BHE021889R0101 when you need a self-contained control solution for a process skid, subsystem, or small plant that benefits from the integrated engineering and operator tools of a DCS without the complexity and cost of a large system like 800xA.

  • It is an excellent choice for modernizing older loop controllers or small PLC systems where improved integration, diagnostics, and a unified operator interface are desired.

  • Select this controller when the application has a mix of analog and digital I/O that aligns well with its onboard capabilities, minimizing the need for immediate expansion.

• Important Notes:

  • I/O Capacity Planning: Carefully assess the onboard I/O of the BE101 variant against your application needs. Ensure there are sufficient channels of the correct type (e.g., analog inputs vs. outputs) before committing.

  • Expansion Planning: If expansion is needed, plan the PROFIBUS DP network topology, select compatible remote I/O (e.g., ABB’s S800 I/O with appropriate PROFIBUS adapter), and ensure the controller is configured as a DP master.

  • Software Licensing: The Freelance Engineering software requires appropriate licenses for configuration, simulation, and runtime. Ensure these are procured and correctly installed.

  • Firmware Updates: Always check for and install the recommended firmware for the UFC721BE101 to ensure stability and access to the latest features. The firmware must be compatible with your engineering software version.

  • Heat Dissipation: While robust, ensure adequate ventilation in the control panel, especially if the controller is installed in a high ambient temperature environment or alongside other heat-producing devices.
