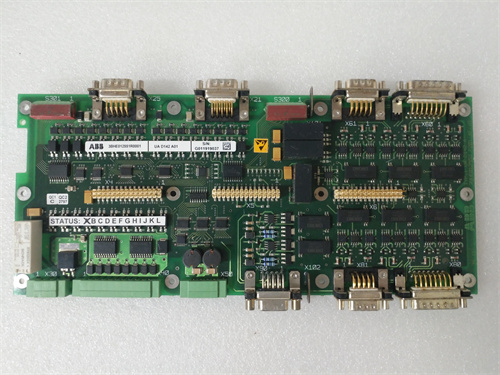

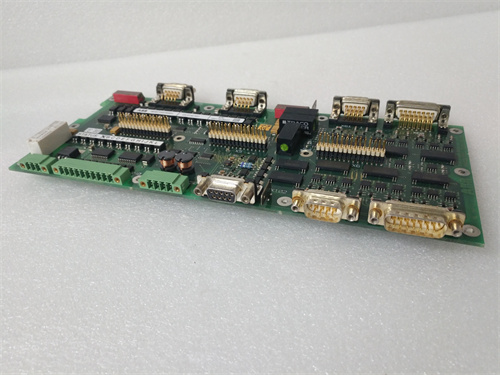

ABB UAD142A01 3BHE012551R0001

Description

Product Description

The ABB UAD142A01 3BHE012551R0001 is a specialized analog input/output module designed for use in ABB’s industrial automation and drive systems, particularly within the AC 800M controller family and the extended 800xA distributed control system. This module provides a versatile interface for both receiving analog signals from field sensors and transmitting analog control signals to final control elements. The UAD142A01 is engineered for demanding industrial applications requiring high accuracy and reliability in analog signal processing. The dual part numbering system—UAD142A01 (functional designation) and 3BHE012551R0001 (ABB ordering code)—identifies this component as an original ABB product, guaranteeing full compatibility and high quality.

Product Parameters and Specifications

The ABB UAD142A01 3BHE012551R0001 is characterized by its dual-function capability and high-precision signal processing. Below are the typical specifications for this model:

• Device Type: Analog input/output module for ABB automation systems.

• Input Channels: Multiple analog input channels (typically 4-20 mA or voltage signals).

• Output Channels: Multiple analog output channels (typically 4-20 mA).

• Resolution: High-resolution conversion for precise measurement and control.

• Accuracy: High accuracy for reliable process data and control signals.

• Isolation: Galvanic isolation between field circuits and backplane logic for noise immunity.

• Diagnostics: Comprehensive self-diagnostics with status reporting to the controller.

• Indication: Status LEDs for module health and channel activity.

• Mounting: Plugs into AC 800M I/O rack or compatible termination units.

Advantages and Features

Integrating the ABB UAD142A01 3BHE012551R0001 into your control system provides significant operational advantages. Its primary feature is the combination of both input and output functionality on a single module, reducing rack space requirements and simplifying system architecture. The module incorporates advanced signal conditioning and filtering to ensure accurate signal conversion even in electrically noisy industrial environments. Each channel on the ABB UAD142A01 is individually configurable, allowing flexibility for various field device types. Comprehensive diagnostic capabilities, including open-circuit detection and out-of-range alarming, continuously monitor signal integrity and report anomalies to the control system for proactive maintenance. The module’s robust design ensures reliable operation in demanding industrial conditions.

Application Fields and Use Cases

The ABB UAD142A01 3BHE012551R0001 is deployed across process and hybrid industries requiring both analog input monitoring and analog output control. Common application fields include:

• Chemical and Petrochemical: Monitoring pressure and temperature transmitters while controlling valve positions in reactors and distillation columns.

• Oil and Gas: Acquiring signals from flow and level sensors and sending output signals to control valves in production facilities.

• Power Generation: Monitoring boiler parameters while controlling feedwater and fuel valves.

• Water Treatment: Reading process measurements and controlling chemical dosing pumps.

In these environments, the UAD142A01 serves as a compact and efficient interface between the control system and field instrumentation.

Comparison with Competiting Products

When compared to analog I/O modules from other automation manufacturers, the ABB UAD142A01 3BHE012551R0001 distinguishes itself through its deep integration with the ABB 800xA ecosystem and its compact combination of input and output functions. While competing products may require separate modules for input and output functions, the UAD142A01 provides both in a single slot, saving rack space and reducing system cost. The module’s comprehensive diagnostic capabilities are seamlessly integrated with ABB’s Control Builder software, providing detailed visibility into signal health. Its robust design and high accuracy ensure reliable performance in demanding applications.

Selection Suggestions and Precautions

When selecting the ABB UAD142A01 3BHE012551R0001 for your project, first verify that the number and type of input/output channels match your specific application requirements. Confirm that the UAD142A01 firmware revision is compatible with your AC 800M controller and Control Builder software version. Before installation, inspect the module for any physical damage to connectors or components. When handling the module, follow proper ESD precautions. Ensure the module is properly seated in the correct slot in the I/O rack. For the ABB UAD142A01 3BHE012551R0001, proper wiring practices are essential; use shielded twisted-pair cables for analog signals and maintain segregation from high-power AC lines. Configure input ranges and output parameters according to your field device specifications. Always source genuine ABB UAD142A01 modules from authorized distributors to guarantee authenticity and warranty coverage. Consider stocking spare modules for critical loops to minimize potential downtime.
