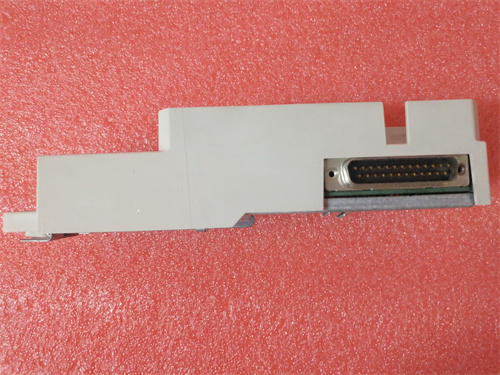

ABB TP854 3BSE025349R1

Description

Product Description

The ABB TP854 3BSE025349R1 is a sophisticated Fieldbus Communication Interface module designed specifically for the ABB S800 I/O system, a cornerstone of the company’s Distributed Control System (DCS) architecture. As the gateway between the I/O rack and higher-level control networks, this module is essential for seamless data exchange in modern industrial automation. The core function of the ABB TP854 3BSE025349R1 is to connect S800 I/O stations to PROFIBUS DP networks, acting as a slave device that enables remote I/O capabilities for ABB’s AC 800M controllers and third-party PROFIBUS masters. Engineered for high reliability, the ABB TP854 3BSE025349R1 features redundant communication capabilities in many configurations, ensuring uninterrupted data flow even in the event of network disruptions.

Product Parameters

• Model Number: ABB TP854 3BSE025349R1

• Type: PROFIBUS DP Slave Communication Interface Module

• System Compatibility: ABB S800 I/O (Standard and Extended Line)

• Communication Protocol: PROFIBUS DP-V0/DP-V1

• Transmission Speed: 9.6 kbit/s to 12 Mbit/s (Auto-detecting)

• Station Addressing: Rotary switches for address configuration (0-99)

• Backplane Current Consumption: 130 mA @ 5 VDC (Typical)

• Power Dissipation: 2.5 W (Maximum)

• Mounting: Directly on S800 I/O DIN-rail mounting base (TU8xx series)

• Isolation: 500 VAC between fieldbus and internal electronics

• Indicators: Status LEDs for Power, Network Communication, Module Status, and Diagnostic Alerts

• Connectors: 9-pin D-sub female for PROFIBUS DP interface

• Certification: CE, UL, CSA, ATEX (for installation in hazardous areas when properly housed)

Advantages and Features

The primary advantage of the ABB TP854 3BSE025349R1 lies in its seamless integration with ABB’s control ecosystem while maintaining openness to third-party systems. By utilizing the ABB TP854 3BSE025349R1, engineers can distribute I/O modules across a plant floor, reducing wiring costs and centralizing control logic in a single controller. The module supports hot-swapping of I/O modules without disturbing the fieldbus communication, a critical feature for maintaining uptime in continuous process industries. Advanced diagnostic capabilities built into the ABB TP854 3BSE025349R1 provide detailed status information about the network and individual I/O channels, accessible through ABB’s engineering tools or directly via the fieldbus master. The rugged mechanical design of the ABB TP854 3BSE025349R1 ensures reliable operation in industrial environments with vibration, temperature extremes, and electrical noise.

Application Cases in Application Fields

The communication capabilities of the ABB TP854 3BSE025349R1 make it essential across various process and hybrid industries.

• Chemical Processing: In a batch chemical plant, the ABB TP854 3BSE025349R1 connects remote I/O racks located near reactor vessels to a central AC 800M controller, enabling precise monitoring of temperatures and pressures while reducing the need for long analog cable runs.

• Water and Wastewater Treatment: For a large municipal water treatment facility spread across a wide area, the ABB TP854 3BSE025349R1 allows the central SCADA system to communicate with remote pump stations via PROFIBUS DP, consolidating control and monitoring functions.

• Pharmaceutical Manufacturing: In a validated pharmaceutical facility, the ABB TP854 3BSE025349R1 ensures deterministic communication between the control system and critical process I/O, supporting the data integrity requirements of regulatory compliance.

• Mining and Minerals Processing: On a conveyor system spanning kilometers, the ABB TP854 3BSE025349R1 enables distributed I/O for emergency stops, pull cords, and belt monitoring devices, communicating back to the main control room with minimal wiring infrastructure.

Comparison with Competing Products

When compared to similar fieldbus interface modules such as the Siemens ET 200M IM153-2 or the Rockwell Automation 1794-ACN15, the ABB TP854 3BSE025349R1 offers distinct advantages for users already invested in ABB’s System 800xA ecosystem. While Siemens modules excel in SIMATIC environments, the ABB TP854 3BSE025349R1 provides tighter integration with ABB’s engineering tools and asset management software. Compared to generic PROFIBUS DP slave devices, the ABB TP854 3BSE025349R1 offers superior diagnostic capabilities and seamless configuration through ABB’s CBM (Control Builder M) software. Its ability to mix standard and intrinsically safe I/O modules on the same communication network gives the ABB TP854 3BSE025349R1 a flexibility advantage in facilities with both general-purpose and hazardous area instrumentation.

Selection Suggestions and Precautions

When selecting the ABB TP854 3BSE025349R1 for your project, first verify compatibility with your specific S800 I/O mounting bases (TU8xx series) and your PROFIBUS master class. Ensure that the firmware version of the ABB TP854 3BSE025349R1 matches the requirements of your control system, as older firmware may not support newer I/O modules or advanced diagnostic functions. Proper termination of the PROFIBUS network is critical when installing the ABB TP854 3BSE025349R1; ensure that the module is correctly addressed using the rotary switches and that bus terminators are enabled at the physical ends of the network segment. When configuring the ABB TP854 3BSE025349R1 in your engineering software, pay careful attention to the PROFIBUS baud rate settings and the GSD file compatibility. Finally, always observe proper grounding and shielding practices for the ABB TP854 3BSE025349R1 to prevent communication errors caused by electromagnetic interference in industrial environments.
