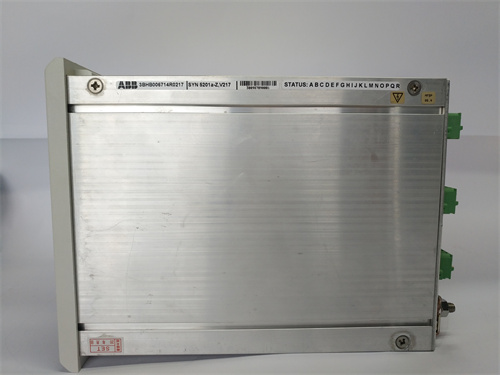

ABB SYN5201A-Z V217 3BHB006714R0217

Description

Product Description

The ABB SYN5201A-Z V217 3BHB006714R0217 is a high-precision synchronization module designed for the ABB AC 800M controller family within the System 800xA distributed control system (DCS). This specialized module, often referred to as a synchronization or Synchrocheck module, is engineered for critical applications in power generation, distribution, and heavy industrial processes requiring precise phase and frequency matching. The primary function of the ABB SYN5201A-Z is to monitor the voltage, frequency, and phase angle of two separate AC sources (typically a generator and the grid, or two grid sections) and provide permission or execute automatic control for their safe connection (synchronization). By ensuring that the voltage, frequency, and phase difference are within strict tolerances before closing a circuit breaker, the SYN5201A-Z V217 prevents damaging electrical transients, equipment stress, and system instability, thereby playing a vital role in automatic generator control (AGC) systems and bus transfer schemes.

Technical Parameters and Characteristics

• Manufacturer and Platform: ABB, System 800xA / AC 800M.

• Device Type: Synchronization (Synchrocheck) Module.

• Key Function: Measurement, comparison, and control logic for synchronizing two AC power sources.

• Input Signals: Accepts voltage transformer (VT) inputs from two independent three-phase AC sources (Source 1 and Source 2). Typically handles standard secondary voltages like 110V or 120V AC.

• Measured Parameters:

  • Voltage (RMS) of each source.

  • Frequency of each source.

  • Phase Angle difference between the two sources.

  • Slip Frequency (difference in frequency).

• Setpoints and Logic: User-configurable setpoints for permissible limits:

  • Voltage Difference (dV)

  • Frequency Difference (dF)

  • Phase Angle Difference (dPhi)

  • Slip Frequency

  • Advanced Logic: Includes algorithms for calculating the precise closing instant (advance time) to achieve zero phase angle at the moment the breaker contacts close.

• Outputs: Provides both relay outputs (for direct breaker close commands) and software flags within the controller logic to permit synchronization.

• Accuracy: Features high measurement accuracy for voltage, frequency, and phase angle, which is essential for reliable and safe operation.

• Integration: Installs directly into the AC 800M controller rack. It is configured and programmed using ABB’s Control Builder M engineering software, where its function blocks (e.g., SYNC_CTRL) are integrated into the application logic.

• Firmware Version: The V217 suffix indicates a specific firmware/software version for the module.

Advantages and Key Features

• High Precision and Reliability: The ABB SYN5201A-Z is designed for mission-critical synchronization tasks, offering the high accuracy and deterministic performance required to protect expensive generators and electrical infrastructure.

• Seamless System 800xA Integration: As a native module, it is fully integrated into the DCS engineering, operation, and diagnostic environment. All parameters, real-time values, and alarms are accessible within the unified System 800xA workspace.

• Advanced Control Algorithms: It incorporates sophisticated algorithms for calculating breaker closing advance time, ensuring a smooth and stress-free connection between two power systems.

• Flexible Configuration: The wide range of configurable setpoints and operating modes allows it to be tailored for various synchronization scenarios, from simple check to full automatic synchronization.

• Enhanced Safety: By automating the synchronization process and enforcing strict electrical limits, it eliminates human error and provides a consistent, safe method for connecting power sources.

Application Cases in Various Fields

• Power Generation (Thermal, Hydro, Nuclear): Automatic synchronization of generators to the grid during start-up. The ABB SYN5201A-Z V217 is a core component of the turbine governor and automatic voltage regulator (AVR) control loop.

• Industrial Cogeneration Plants: Synchronizing on-site generators (gas turbines, engines) with the utility grid for peak shaving or island mode operation.

• Marine and Offshore: Synchronizing multiple generator sets on ships or offshore platforms to share load efficiently.

• Utility Substations: Used in bus transfer schemes to safely transfer loads from one feeder to another without interruption.

• Large Data Centers: For critical power transfer between utility feeds and backup generation during switchover events.

Comparisons with Competing Products (e.g., Siemens SIPROTEC Sync-Check Relay, GE Multilin Sync Check Module, SEL Relay with Synchrocheck)

• In favor of the ABB SYN5201A-Z: Its principal advantage is deep, native integration within the ABB AC 800M DCS. It is not a standalone relay but an intelligent function tightly coupled with the process controller, allowing for complex logic integration and seamless data flow to HMI and historians. It is part of a comprehensive control strategy.

• Points to consider: Dedicated protection relays from Siemens, GE, or SEL offer similar synchrocheck functionality, often with certified protection ratings. They are typically used in electrical switchgear and are connected via hardwired I/O or communication to a PLC/DCS. For a greenfield System 800xA project where control and protection are highly integrated, the SYN5201A-Z is the optimal choice. For retrofit or projects using best-of-breed protection relays, a standalone device may be preferred.

Selection Suggestions and Precautions

1. System Design Specification: The use of a SYN5201A-Z must be defined in the electrical and control system design. Verify it is compatible with your specific AC 800M processor and rack type.

2. Precise Voltage Input Matching: Ensure the VT ratios and secondary voltages are correctly scaled and wired to the module’s input terminals. Incorrect scaling will lead to faulty measurements and unsafe operation.

3. Meticulous Configuration and Testing: Configuration in Control Builder M is critical. Every setpoint (dV, dF, dPhi, advance time) must be calculated and set according to electrical system studies. Rigorous simulation and testing using a secondary injection test set are mandatory before live use.

4. Integration with Protection Systems: The synchronization function must be properly interlocked with other protection systems (e.g., generator protection, breaker failure protection). These interlocks should be implemented in the controller logic.

5. Regular Functional Testing: Schedule periodic tests of the synchronization function during planned outages to verify its accuracy and correct operation, as it is a safety-critical but seldom-used function.

6. Procurement and Firmware: Source the ABB SYN5201A-Z V217 3BHB006714R0217 from authorized ABB channels. Confirm that the firmware version (V217) is compatible with your system’s overall software release. Using an incorrect version can cause integration issues or unexpected behavior.
