Product Description

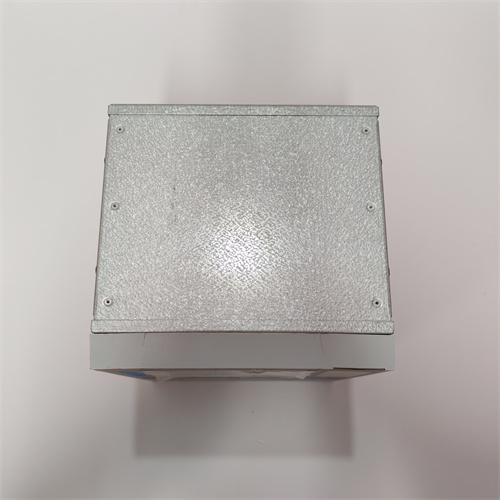

The ABB REC650 1MRK008514-CB is a sophisticated bay control and protection IED (Intelligent Electronic Device) belonging to ABB’s Relion 650 series. This terminal is specifically designed for control, protection, monitoring, and supervision of power system bays in utility substations and industrial power networks. The REC650 integrates comprehensive protection functions with advanced bay control capabilities, including interlocking, synchronization, and switching authority management. The complete order code 1MRK008514-CB specifies a fully configured unit with precise hardware options, communication protocols, and protection functions tailored for specific application requirements. As an original ABB product, this IED guarantees high reliability, full compliance with IEC 61850 standards, and seamless integration with ABB’s protection and control systems.
Product Parameters and Specifications
The ABB REC650 1MRK008514-CB is characterized by its comprehensive protection suite and advanced bay control capabilities. Below are the typical specifications for this model:
-
Device Type: Bay control and protection IED for Relion 650 series.
-
Protection Functions: Overcurrent, earth fault, voltage protection, frequency protection, breaker failure protection.
-
Control Functions: Bay interlocking, synchrocheck, switching authority management, circuit breaker control.
-
Communication Protocols: Full IEC 61850 (GOOSE, MMS) support, plus Modbus, DNP3 (depending on configuration).
-
Binary Inputs/Outputs: Configurable I/O count based on ordering code options.
-
Measurement Accuracy: High accuracy for current, voltage, power, and frequency measurements.
-
Disturbance Recording: Comprehensive fault and disturbance recording with COMTRADE format export.
-
Display: Large graphical LCD with user-friendly menu navigation and single-line diagram support.
-
Mounting: Flush or semi-flush mounting in switchgear panels or 19-inch racks.
-
Power Supply: Universal power supply (80-265V AC/DC typical).
Advantages and Features
Integrating the ABB REC650 1MRK008514-CB into your substation automation system provides significant operational advantages. Its primary feature is the integration of comprehensive bay control functions with protection in a single device, eliminating the need for separate control and protection IEDs. The REC650 provides native support for IEC 61850 communication protocol, enabling seamless integration into modern substation automation systems with GOOSE messaging for high-speed peer-to-peer communication between bays. The interlocking functionality, configurable via graphical logic, ensures safe operation of switchgear by preventing unsafe switching sequences. The synchrocheck function enables safe synchronization of lines, transformers, and generators. Each ABB REC650 features an intuitive human-machine interface with customizable single-line diagram display, allowing operators to visualize bay status and perform control actions without referring to separate documentation.
Application Fields and Use Cases
The ABB REC650 1MRK008514-CB is extensively deployed across utility substations and industrial power systems requiring integrated bay control and protection. Common application fields include:
-
Utility Substations: Control and protection of feeder, transformer, and busbar bays in transmission and distribution substations.
-
Industrial Power Distribution: Bay control and protection for incoming feeders, bus-tie breakers, and outgoing feeders in industrial facilities.
-
Power Plants: Control and protection of auxiliary power system bays in thermal, hydro, and wind power plants.
-
Railway Electrification: Bay control and protection for traction substation switchgear.
In these applications, the REC650 serves as the primary bay controller, providing both protection and control functions in a single, integrated package.
Comparison with Competiting Products
When compared to bay control IEDs from other major manufacturers (e.g., Siemens SIPROTEC 5, GE UR), the ABB REC650 1MRK008514-CB distinguishes itself through its exceptional integration of protection and control functions and its user-centric design. While competing products may offer similar protection suites, the REC650 provides a more intuitive bay control interface with graphical single-line diagram display and customizable interlocking logic. The ABB REC650 offers extensive GOOSE-based interlocking capabilities, enabling sophisticated bay-to-bay communication for advanced automation schemes. Furthermore, the REC650 provides comprehensive disturbance recording with detailed analysis tools that simplify post-fault analysis. The integration with ABB’s PCM600 engineering tool ensures efficient configuration, commissioning, and lifecycle management.
Selection Suggestions and Precautions
When selecting the ABB REC650 1MRK008514-CB for your application, carefully decode the complete ordering code to ensure all specified options match your requirements. The “1MRK008514-CB” designation specifies critical parameters including hardware configuration, I/O count, communication protocol options, and special functions. Verify that the REC650 firmware version supports all required protection and control functions for your specific bay application. Before installation, carefully study the technical manual and connection diagrams. Installation and configuration should be performed by qualified personnel experienced with ABB protection IEDs. For the ABB REC650, proper CT and VT connections with correct polarity are essential for correct protection operation. Configure interlocking logic based on your switchgear configuration and safety requirements. Always source genuine ABB REC650 units from authorized distributors to guarantee authenticity and technical support availability. Finally, perform comprehensive secondary injection testing during commissioning to verify all protection and control functions operate as configured before placing the bay into service.
