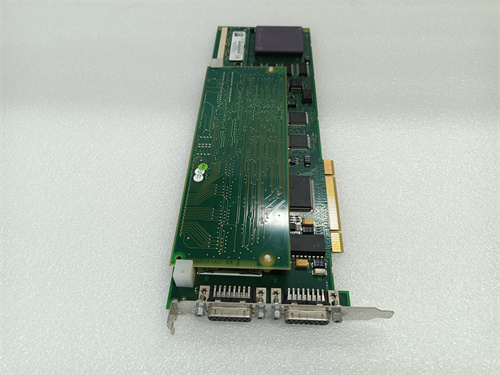

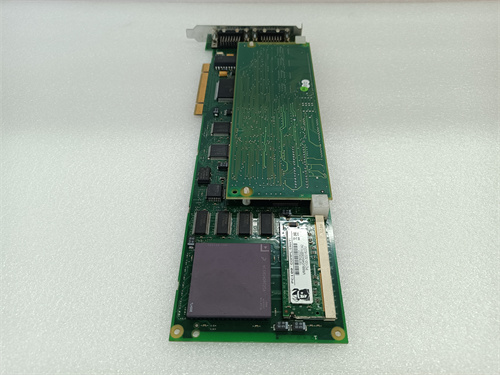

ABB PU515A 3BSE032401R1

Product Overview: ABB PU515A 3BSE032401R1

The ABB PU515A 3BSE032401R1 is a high-performance Processor Unit (CPU) designed specifically for the ABB Ability™ System 800xA distributed control system (DCS) and the AC 800M series of programmable logic controllers. As the central processing core of the High Integrity controller architecture, this unit is engineered to handle complex automation tasks that require deterministic performance and high availability. The ABB PU515A 3BSE032401R1 serves as the brain for safety-critical and process-critical operations, bridging the gap between standard process control and SIL (Safety Integrity Level) rated applications.

Technical Parameters

• Model Number: ABB PU515A 3BSE032401R1

• Type: High Integrity Processor Unit

• Processor Speed: 133 MHz (Motorola MPC860 based)

• Memory: 64 MB RAM, 64 MB Flash

• Voltage Rating: 24 V DC

• Power Dissipation: Typically 8.5 W

• Communication Ports: 2 x RJ45 Ethernet ports (CN1, CN2) for control network redundancy; 1 x RS-232 port for service/engineering access.

• Redundancy: Supports CPU redundancy (Primary/Standby) and media redundancy for communication modules.

• Safety Rating: Suitable for use in safety loops up to SIL 2 (IEC 61508) when used in a High Integrity configuration.

• Operating Temperature: 0 °C to +55 °C (+32 °F to +131 °F).

Advantages and Features

The ABB PU515A 3BSE032401R1 stands out due to its unique placement within the ABB portfolio. Unlike standard controllers, this unit is built for High Integrity. Its primary advantage lies in its ability to execute both standard process control logic and safety-related logic on the same hardware platform without requiring a separate, dedicated safety PLC for SIL 2 applications.

Key features include:

• High Integrity Architecture: The ABB PU515A 3BSE032401R1 supports advanced diagnostics and self-monitoring (OSM—Online Self-Monitoring) to detect internal faults, ensuring safe states are achieved in critical failures.

• Deterministic Performance: It handles complex PID loops and sequential control with strict cycle times, making it ideal for industries where timing is critical.

• Integrated Redundancy: It natively supports redundant configurations without complex external switching hardware, ensuring maximum uptime for continuous manufacturing processes.

• Environmental Robustness: Coated circuit boards provide resistance against humidity and corrosion, typical in harsh industrial environments.

Application Cases

The ABB PU515A 3BSE032401R1 is predominantly deployed in industries where downtime is measured in millions of dollars per minute or where safety is paramount:

• Oil & Gas (Upstream and Midstream): Used in pipeline leak detection systems and emergency shutdown (ESD) panels. The processor ensures that safety logic (like high-pressure shut-offs) executes independently of standard control logic.

• Chemical Processing: Ideal for reactor control where temperature and pressure loops require SIL 2 integrity. The ABB PU515A 3BSE032401R1 manages the batch automation while simultaneously monitoring the safety interlocks.

• Power Generation: Employed in turbine control and auxiliary systems where redundant CPU configurations prevent false trips while maintaining grid stability.

• Pharmaceuticals: Utilized in critical utilities (WFI—Water for Injection, HVAC) where strict environmental compliance requires both precise regulation and documented safety integrity.

Comparison with Competitors

When compared to similar high-availability controllers from competitors, the ABB PU515A 3BSE032401R1 occupies a specific niche that blends DCS capabilities with PLC-like ruggedness.

• Vs. Siemens S7-400F/FH: While the Siemens S7-400F series offers a similar safety rating, the ABB PU515A 3BSE032401R1 integrates more natively with the 800xA system architecture. ABB’s solution tends to offer a more seamless engineering environment (with the same software handling both process and safety) compared to Siemens’ TIA Portal where safety and standard configurations often require separate views or licenses.

• Vs. Rockwell ControlLogix L7x: Rockwell provides a robust safety controller (L7xS), but ABB’s ABB PU515A 3BSE032401R1 excels in process automation contexts. ABB offers superior native loop tuning capabilities and batch management features out-of-the-box compared to Rockwell, which often relies on additional software layers.

• Vs. Emerson DeltaV: Emerson offers tight integration in their S-series controllers, but the ABB PU515A 3BSE032401R1 provides a more flexible communication backbone (standard Ethernet/IP and Profibus support) compared to DeltaV’s more proprietary network topology.

Selection Suggestions

When selecting the ABB PU515A 3BSE032401R1 for a project, consider the following:

1. I/O Compatibility: Ensure you pair the ABB PU515A 3BSE032401R1 with the correct I/O modules. It is compatible with S800 I/O, S900 I/O (for extreme environments), and remote I/O racks.

2. Safety Classification: Confirm the required SIL level. The ABB PU515A 3BSE032401R1 supports SIL 2 as a single controller or SIL 3 when paired in a redundant 1oo2 (1 out of 2) architecture with the proper I/O configuration.

3. Firmware Version: Verify the firmware revision. The 3BSE032401R1 part number refers to the hardware; older units may require a firmware upgrade to support the latest System 800xA versions (6.1 and above).

4. Redundancy Cabling: If using redundancy, do not forget to order the specific fiber optic or copper redundancy cables required to link the two ABB PU515A 3BSE032401R1 units together for synchronization.

Precautions

• Electrostatic Discharge (ESD): The ABB PU515A 3BSE032401R1 is a sensitive electronic component. Always use a grounded wrist strap when handling the unit. Do not touch the backplane connectors or exposed circuitry.

• Power Supply Sizing: The ABB PU515A 3BSE032401R1 has a specific inrush current. Ensure the power supply unit (PSU) in the rack (such as the SD831 or SD832) has enough reserve capacity to handle the initial startup current draw, especially if multiple modules are in the same chassis.

• Configuration Backup: Before performing any firmware updates or network changes, always take a full backup of the application using the 800xA Engineering Workplace. Failure to do so can result in total loss of configuration if a mismatch occurs.

• Obsolescence Management: Verify the lifecycle status of the ABB PU515A 3BSE032401R1 with ABB. As newer generations (such as the PM8xx series) evolve, ensure that spare parts and service agreements are in place to support the lifecycle of your facility.
