Description

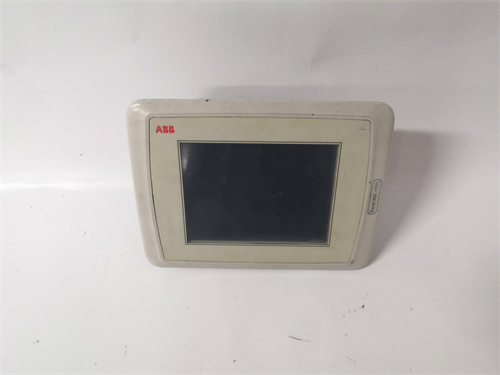

ABB PP825 3BSE042240R1 Panel 800 5.7″ Display Unit
The ABB PP825 3BSE042240R1 is a robust operator panel from ABB’s Panel 800 family, specifically designed for industrial automation environments. This model features a 5.7-inch STN color display with a QVGA resolution of 320 x 240 pixels, providing clear and reliable visualization for machine-level and process applications. As a key component of the Extended Operator Panel series, the ABB PP825 is engineered to withstand harsh industrial conditions with an IP65 protection rating on the front, making it resistant to dust and water jets. It serves as the primary human-machine interface (HMI) for local control, monitoring, and data entry, seamlessly integrating into both new and existing ABB automation systems.
Product Parameters
Understanding the technical specifications of the 3BSE042240R1 is crucial for proper system integration. The unit is powered by a 24 V DC (typically 24 V DC, -15%/+20%) supply and consumes a maximum of 10 W. It comes equipped with an Ethernet interface (10/100Base-T) for high-speed communication with controllers like the AC500 PLCs or other supervisory systems. Additionally, it features a built-in USB port for easy project transfer and data logging. The operating temperature range is 0 to 55 °C, and it is designed for panel mounting with a depth of approximately 45 mm behind the panel. The ABB PP825 supports multiple languages and offers a long-lasting LED backlight with a typical lifetime of 50,000 hours.
Advantages and Features
The ABB PP825 stands out due to its combination of reliability and advanced visualization capabilities. A primary advantage is its native compatibility with ABB’s Automation Builder and Panel Builder software, which streamlines the engineering process. This allows engineers to create intuitive graphical interfaces with vector-based symbols and easy navigation. Furthermore, the PP825 supports OPC UA and Web Server functionality, enabling remote access and IIoT readiness without additional hardware. Its sturdy construction ensures long service life even in environments with vibrations and extreme temperatures, significantly reducing total cost of ownership compared to consumer-grade displays.
Application Cases
The versatility of the 3BSE042240R1 makes it suitable for a wide range of industrial sectors. In machine building, it is commonly used for controlling packaging lines, plastic injection molding machines, and textile machinery, providing operators with real-time production data and diagnostic messages. In the material handling industry, the ABB PP825 is often deployed on conveyor systems and sorting lines, allowing for local override and status monitoring. Another typical application is in HVAC and building automation for large facilities, where it controls and visualizes air handling units and chiller plants. Its compact size and robust IP65 front also make it ideal for food and beverage processing applications where washdowns are frequent.
Comparison with Competing Products
When comparing the ABB PP825 to similar offerings from competitors like the Siemens SIMATIC HMI series or the Schneider Electric Harmony GTU, several points emerge. The ABB PP825 often provides a more cost-effective solution for mid-range applications without sacrificing essential features like Ethernet connectivity and web-based monitoring. While competitors may offer slightly higher resolution screens at this size point, the PP825 excels in seamless integration with ABB’s AC500 PLC platform, offering a unified engineering environment. Its built-in OPC UA server is a significant differentiator, as this feature is often a paid option on other brands. For end-users heavily invested in the ABB ecosystem, the ABB PP825 offers the path of least resistance and highest compatibility.
Selection Suggestions and Precautions
When selecting the ABB PP825 3BSE042240R1 for your project, ensure that your power supply meets the 24 V DC requirements with sufficient capacity. It is important to verify the communication protocol; while the unit natively talks to ABB controllers, ensure your existing third-party controller supports standard protocols like Modbus TCP if integration is required. A key precaution is to avoid installing the panel in direct sunlight for prolonged periods, as this can degrade the STN display’s contrast over time. Additionally, always use the latest version of Panel Builder software to configure the ABB PP825 to benefit from the newest features and security updates. Ensure that the panel cut-out dimensions are precisely followed to maintain the IP65 seal integrity.
