Description
Product Description

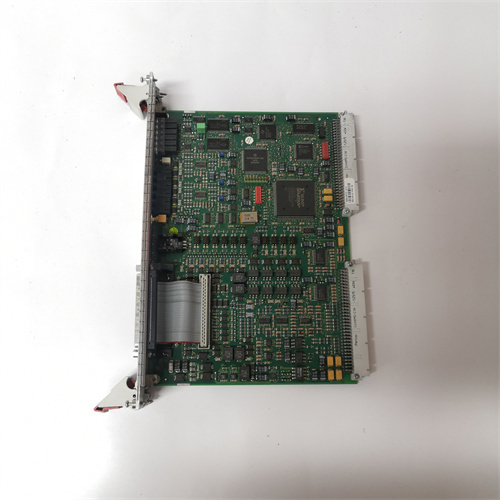

The core products to be introduced are ABB PFVO102, ABB PFVO142, and ABB 3BSE023732R1 (Product links: [Insert link for PFVO102], [Insert link for PFVO142], [Insert link for 3BSE023732R1]). These are high-performance servo drive modules developed by ABB, a global leader in industrial automation and power technologies, specifically designed for integration with ABB’s ACSM1 and ACS850 servo systems. Widely applied in robotics, CNC machine tools, automated assembly lines, and precision material handling equipment, ABB PFVO102, ABB PFVO142, and ABB 3BSE023732R1 serve as the core control units for servo motors, enabling high-precision speed, torque, and position regulation.
ABB PFVO102 is a compact servo drive module optimized for low-to-medium power servo motors (up to 1.5 kW), while ABB PFVO142 caters to medium-to-high power applications (up to 5.5 kW), and ABB 3BSE023732R1 functions as a compatible control interface module that enhances communication and diagnostic capabilities between the drive modules and upper-level controllers. Together, these modules deliver exceptional dynamic response and stability, even in harsh industrial environments characterized by high vibrations, temperature fluctuations, and electromagnetic interference.
Their seamless compatibility with ABB’s servo motors (such as the BSD series) and support for industry-standard communication protocols (EnDat 2.2, BiSS-C) make ABB PFVO102, ABB PFVO142, and ABB 3BSE023732R1 ideal for both new automation projects and upgrades of legacy systems. Particularly valuable is their integration with ABB’s Drive composer software, which allows for intuitive parameter configuration and real-time monitoring, ensuring optimal performance in precision-critical applications like robotic welding, CNC milling, and electronic component assembly.
Technical Parameters
| Parameter | ABB PFVO102 | ABB PFVO142 | ABB 3BSE023732R1 |
|---|---|---|---|
| Power Range | 0.1–1.5 kW | 1.0–5.5 kW | N/A (Interface module, no power output) |
| Rated Input Voltage | 230 V AC (single-phase) / 380–480 V AC (three-phase) | 380–480 V AC (three-phase) | 24 V DC (from servo system backplane) |
| Rated Output Current | Up to 8 A (continuous) / 24 A (peak, 3s) | Up to 15 A (continuous) / 45 A (peak, 3s) | N/A |
| Control Modes | Position, Speed, Torque, Homing | Position, Speed, Torque, Homing | Communication & diagnostic interface |
| Feedback Interfaces | EnDat 2.2, BiSS-C, Sin/Cos (1 Vpp) | EnDat 2.2, BiSS-C, Sin/Cos (1 Vpp) | Supports Profibus DP, Modbus RTU |
| Dynamic Response Time | ≤ 1 ms (current loop) | ≤ 1 ms (current loop) | ≤ 5 ms (data transmission latency) |
| Protection Features | Overcurrent, overvoltage, overtemperature, short-circuit, motor stall protection | Overcurrent, overvoltage, overtemperature, short-circuit, motor stall protection | Overload protection, communication error detection |
| Mechanical Dimensions | 140 mm × 80 mm × 30 mm | 180 mm × 100 mm × 35 mm | 120 mm × 60 mm × 25 mm |
| Weight | ≈ 0.8 kg | ≈ 1.2 kg | ≈ 0.3 kg |
| Operating Environment | Temperature: -10°C to +55°C; Humidity: 5–95% (no condensation); Vibration: 10 g (5–500 Hz) | Temperature: -10°C to +55°C; Humidity: 5–95% (no condensation); Vibration: 10 g (5–500 Hz) | Temperature: 0°C to +60°C; Humidity: 5–90% (no condensation) |
| Certifications | CE, UL, IEC 61800-5-1, ISO 9001 | CE, UL, IEC 61800-5-1, ISO 9001 | CE, UL, IEC 61131-2 |
Advantages and Features
- High-Precision Control and Dynamic Performance: ABB PFVO102 and ABB PFVO142 adopt advanced vector control algorithms and 24-bit high-resolution encoder feedback, achieving position control accuracy of ±0.01 mm and speed regulation accuracy of ±0.1% of the rated speed. In CNC milling applications, this precision ensures consistent machining quality of complex parts. ABB 3BSE023732R1 enhances control stability by enabling real-time data transmission between the drive modules and the PLC, reducing latency in command execution.
- Seamless Integration with ABB Ecosystem: All three modules are fully compatible with ABB’s servo motors, controllers (e.g., AC 800M), and Drive composer software. ABB PFVO102 and ABB PFVO142 can be automatically identified by the software, allowing for one-click parameter configuration and calibration. ABB 3BSE023732R1 extends compatibility to third-party controllers via Profibus DP, making it versatile for hybrid automation systems.
- Robustness for Harsh Environments: With IP20 protection (suitable for cabinet mounting), wide temperature range (-10°C to +55°C), and resistance to electromagnetic interference (compliant with IEC 61000-4), ABB PFVO102, ABB PFVO142, and ABB 3BSE023732R1 perform reliably in automotive manufacturing workshops (high vibrations) and electronic production facilities (electromagnetic noise). Their rugged design ensures an MTBF (Mean Time Between Failures) of over 100,000 hours.
- Comprehensive Protection and Diagnostics: Built-in protection features (overcurrent, overtemperature, short-circuit) prevent module and motor damage. ABB 3BSE023732R1 adds advanced diagnostic capabilities, such as real-time fault logging (up to 100 events) and remote condition monitoring, enabling maintenance teams to quickly identify issues (e.g., motor winding overheating, encoder signal loss) and minimize downtime.
- Scalability and Flexibility: ABB PFVO102 (low-power) and ABB PFVO142 (medium-to-high power) cover a wide range of applications, from small robotic arms (0.5 kW) to large CNC lathes (5.5 kW). ABB 3BSE023732R1 supports daisy-chaining of multiple drive modules, facilitating system expansion without compromising performance.
Application Cases in Industries
- Robotics (Automotive Welding): In an automotive assembly line, ABB PFVO142 drives the servo motors of ABB IRB 1410 welding robots, providing precise control of the robot arm’s position and speed (±0.02 mm accuracy). ABB 3BSE023732R1 enables communication between the drive module and the PLC, synchronizing welding operations with the conveyor belt speed to ensure consistent weld quality.
- CNC Machine Tools (Milling): A CNC milling machine uses ABB PFVO102 to control the X/Y/Z axis servo motors, achieving high-speed positioning (up to 5 m/s) and tight tolerance machining (±0.01 mm) of aluminum alloy parts. The module’s fast dynamic response reduces tool vibration, improving surface finish quality.
- Electronic Assembly (Component Placement): ABB PFVO102 and ABB 3BSE023732R1 are integrated into a pick-and-place machine for electronic components. The drive module controls the servo motor of the placement head, ensuring accurate positioning of 0.1 mm-sized components, while the interface module transmits real-time status data to the upper controller, reducing placement errors by 30%.
- Material Handling (Precision Conveyors): In a semiconductor factory, ABB PFVO142 regulates the speed of a precision conveyor belt (±0.5% accuracy) to transport silicon wafers. ABB 3BSE023732R1 monitors the drive module’s temperature and current, triggering alarms for abnormal conditions to prevent wafer damage.
Comparison with Competitors
| Parameter | ABB PFVO102/PFVO142/3BSE023732R1 | Siemens Sinamics S120 (6SL3210-1PE21-8UL0) | Yaskawa Sigma-7 (SGD7S-5R5A00A) |
|---|---|---|---|
| Power Range | 0.1–5.5 kW (covered by two modules) | 0.3–7.5 kW | 0.1–7.0 kW |
| Control Accuracy | ±0.01 mm (position) | ±0.02 mm (position) | ±0.01 mm (position) |
| Communication Protocols | EnDat 2.2, BiSS-C, Profibus DP (via 3BSE023732R1) | Profinet, EnDat 2.2 | MECHATROLINK-III, EnDat 2.2 |
| Compatibility | ABB servo motors + third-party controllers (via 3BSE023732R1) | Siemens servo motors only | Yaskawa servo motors only |
| Diagnostic Capabilities | Advanced (fault logging, remote monitoring via 3BSE023732R1) | Basic (local fault indicators) | Intermediate (software-based diagnostics) |
| Price (Estimated) | Medium-High | High | Medium-High |
Key Differences: The ABB module suite stands out for its scalability (covering low-to-high power ranges) and cross-compatibility with third-party controllers (enabled by ABB 3BSE023732R1). Siemens Sinamics S120 offers similar power range but lacks flexibility in motor compatibility, while Yaskawa Sigma-7 matches ABB’s control accuracy but has limited communication protocol support. For projects requiring integration with ABB servo systems or hybrid automation setups, ABB PFVO102, ABB PFVO142, and ABB 3BSE023732R1 are the optimal choice.
Selection Suggestions
- Match Power Requirements: Choose ABB PFVO102 for low-power applications (0.1–1.5 kW, e.g., small robots) and ABB PFVO142 for medium-to-high power needs (1.0–5.5 kW, e.g., CNC machines). Include ABB 3BSE023732R1 if communication with third-party controllers (e.g., Siemens PLC) or advanced diagnostics are required.
- Verify Compatibility: Ensure compatibility with servo motors (preferably ABB BSD series for optimal performance) and upper-level controllers. ABB 3BSE023732R1 is mandatory for Profibus DP communication; use ABB’s Drive composer software to confirm protocol support.
- Assess Environmental Conditions: All modules operate reliably in -10°C to +55°C. For extreme temperatures (>55°C) or high humidity (>95%), install additional cooling or waterproofing measures in the control cabinet.
- Prioritize Diagnostic Needs: If remote monitoring and predictive maintenance are critical (e.g., 24/7 production lines), include ABB 3BSE023732R1 to leverage its advanced diagnostic features and fault logging capabilities.
Precautions
- Follow Wiring Standards: Ensure correct wiring of power, encoder, and communication cables (use shielded cables for encoder signals to reduce interference). Refer to ABB’s technical manual to avoid polarity errors, which may damage ABB PFVO102, ABB PFVO142, or the servo motor.
- Power Off During Maintenance: Disconnect the power supply before replacing modules, adjusting parameters, or inspecting wiring to prevent electric shock or short circuits. Wait 5 minutes after power-off to allow capacitors to discharge.
- Configure Parameters Carefully: Use only ABB Drive composer software for parameter configuration. Avoid modifying critical settings (e.g., current limits, encoder resolution) without technical expertise, as incorrect values may cause motor stalls or module failures.
- Regularly Monitor Performance: Check module status via LED indicators (green = normal, red = fault) and Drive composer software. Conduct monthly diagnostics to review fault logs and ensure ABB 3BSE023732R1 is transmitting data correctly.
- Use Genuine ABB Accessories: Replace damaged cables, connectors, or fuses with genuine ABB parts. Non-genuine accessories may compromise performance, reduce lifespan, or void the warranty.
