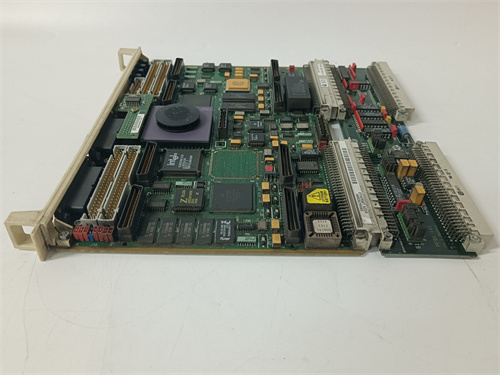

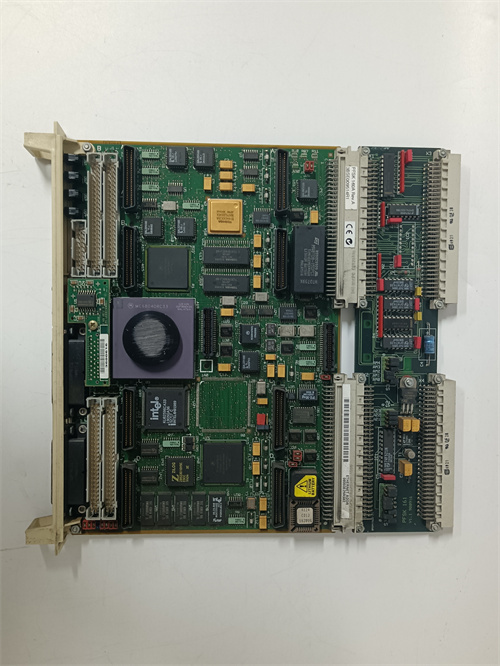

ABB PFSK160A 3BSE009514R1

Description

Product Description

The ABB PFSK160A 3BSE009514R1 is a high-performance, high-density digital (discrete) input module belonging to the ABB S800 I/O family, which is a cornerstone of the ABB System 800xA and Advant OCS control systems. This module is engineered for extreme reliability in reading the status of a large number of field devices such as limit switches, pressure switches, push buttons, and relay contacts. The ABB PFSK160A 3BSE009514R1 is designed for 24V DC positive or negative logic inputs, providing flexibility for different sensor wiring schemes (sourcing or sinking). Its 16-channel design offers excellent point density, saving valuable space in the I/O rack. Built to withstand harsh industrial environments, the ABB PFSK160A 3BSE009514R1 features electrical isolation and advanced filtering to ensure signal integrity even in the presence of electrical noise. For engineers designing robust process control or safety systems, the ABB PFSK160A 3BSE009514R1 (Product Link) delivers the reliability and diagnostic capabilities required for critical monitoring. The proven design and seamless integration of the ABB PFSK160A 3BSE009514R1 make it a trusted choice for demanding automation applications worldwide.

Product Parameters

• Product Type: Digital Input Module (24V DC, High-Density)

• Brand & Series: ABB, S800 I/O, System 800xA / Advant OCS

• Model: ABB PFSK160A 3BSE009514R1

• Number of Channels: 16 channels.

• Input Type: 24V DC, group isolated. Configurable for positive (sourcing) or negative (sinking) logic.

• Input Voltage Range: Typically operates from a nominal 24V DC with a specified operational range (e.g., 19.2 – 30V DC).

• Logic Levels: Recognizes a signal as ON (1) within a specified voltage band (e.g., 15-30V) and OFF (0) below another (e.g., 0-5V).

• Isolation: Provides isolation between field channels and the internal system bus.

• Diagnostics: Includes per-channel LED status indication and internal module diagnostics for fault reporting to the controller.

• Connection: Terminates via a front-mounted, removable terminal block for easy wiring and maintenance.

• Mounting: Plugs into an S800 I/O unit baseplate (e.g., a TUxxx series).

• Hot Swap: Supports hot swap functionality in redundant system configurations.

• Certifications: Complies with relevant industrial standards (IEC, UL, etc.).

Advantages and Features

The ABB PFSK160A 3BSE009514R1 provides significant system-level advantages. Its primary feature is High Channel Density, which maximizes I/O point count per module, reducing hardware footprint and cost. The module offers Wiring Flexibility with its configurable positive/negative logic, accommodating global sensor and wiring standards without needing different hardware versions. Excellent Noise Immunity is achieved through advanced filtering and isolation, ensuring stable operation in electromagnetically noisy plant environments. Comprehensive Diagnostics are provided via bright LED indicators for each channel and detailed fault codes accessible through the control system, enabling rapid troubleshooting. The module supports Hot Swap Capability, allowing for replacement without a process shutdown in properly configured systems, maximizing plant availability. Furthermore, the ABB PFSK160A 3BSE009514R1 benefits from Seamless System Integration within ABB’s engineering environment (Control Builder), allowing for straightforward configuration and commissioning. Selecting the ABB PFSK160A 3BSE009514R1 (Product Link) ensures a reliable and flexible foundation for digital input acquisition.

Application Cases in Various Fields

This module is ubiquitous in industries requiring reliable monitoring of discrete field signals.

• Oil & Gas: Monitoring tank level high/low switches, valve limit switch positions (open/close), and pump running status across upstream and midstream facilities.

• Chemical & Pharmaceutical: Reading the status of safety interlock switches, batch sequence step confirmations, and agitator running feedback.

• Power Generation: Acquiring status from breaker auxiliary contacts, turbine lube oil pressure switches, and burner flame detectors.

• Water & Wastewater: Monitoring pump discharge pressure switches, filter clogging indicators, and chlorine leak detection sensors.

• Manufacturing & Assembly: Reading signals from machine guarding safety gates, part presence sensors, and robotic end-of-stroke sensors on production lines.

Comparison with Competing Products

Compared to standard PLC digital input modules, the ABB PFSK160A 3BSE009514R1 is designed for high-availability process DCS applications. Its direct competitors are high-density DI modules from other major DCS vendors like Emerson (DeltaV), Honeywell, or Siemens (PCS 7/ET 200M). The ABB PFSK160A 3BSE009514R1 often stands out for its particularly robust mechanical construction and its flexible field wiring logic (sourcing/sinking) on a single module, which some competitors require separate modules to achieve. While generic industrial Ethernet I/O modules may offer similar point counts, the ABB module is distinguished by its deterministic performance on the S800 I/O bus, its advanced hot-swap features in redundant setups, and its deep integration with ABB’s system-wide diagnostics and engineering tools.

Selection Suggestions and Precautions

• Selection Suggestions:

  1. System Compatibility: Ensure this module is compatible with your specific S800 I/O unit (e.g., TU843, TU844) and the overall system (800xA, Advant).

  2. Voltage & Logic: Confirm your field devices (sensors, switches) operate at 24V DC and determine whether your system uses positive (sourcing) or negative (sinking) logic to configure the module correctly.

  3. Point Count Planning: Utilize the 16-channel density of the ABB PFSK160A 3BSE009514R1 efficiently to minimize the number of modules required.

  4. Consider Redundancy: If high availability is critical, plan for module redundancy and ensure your baseplate and system configuration support the hot-swap feature.

• Precautions:

  1. Correct Wiring: Adhere strictly to the wiring diagram for your chosen logic configuration (sourcing vs. sinking). Incorrect wiring can damage the module or connected sensors.

  2. Fuse Protection: Protect each input channel or group of channels with appropriately rated fuses as per local electrical codes and system design to prevent damage from field-side shorts.

  3. Grounding: Follow proper cabinet grounding practices and use shielded cables for long runs in noisy environments, connecting the shield at the cabinet end only.

  4. Hot Swap Procedure: If performing a hot swap, meticulously follow the documented procedure for your system to avoid disrupting the communication bus.

  5. Use Genuine Parts: Always source the authentic ABB PFSK160A 3BSE009514R1 (Product Link) from authorized ABB distributors. Counterfeit modules may lack proper isolation, filtering, and diagnostics, posing a serious risk to system reliability and safety.
