ABB DO630

Description

Product Introduction

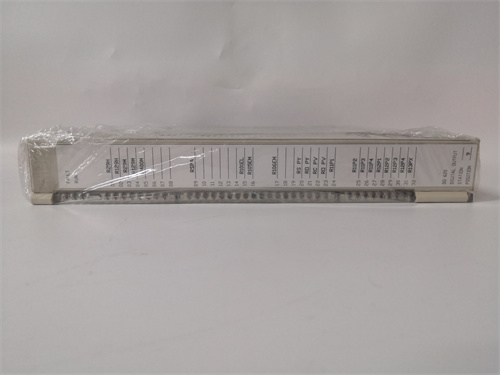

The ABB DO630 is a digital output module belonging to the cutting-edge ABB Ability™ System 800xA, specifically designed for the S800 I/O family. This module serves as a critical interface, translating commands from the central controller into discrete on/off signals to actuate field devices like solenoid valves, motor starters, indicator lamps, and relays. Engineered for high-density and reliable performance, the ABB DO630 exemplifies the modularity and robustness required for complex process and industrial automation. For detailed technical data and sourcing information, please refer to the dedicated product page for the ABB DO630. Its design focuses on providing precise control and diagnostic capabilities, making the ABB DO630 a fundamental component for ensuring operational efficiency and safety in automated systems. The integration of the ABB DO630 into an 800xA network underscores a commitment to seamless data flow and system-wide interoperability.

Product Parameters and Specifications

The ABB DO630 module is defined by its electrical characteristics and system integration features:

• Manufacturer / Brand: ABB.

• Series/Platform: System 800xA, S800 I/O Family.

• Module Type: Digital Output Module.

• Output Type: Typically 24 VDC, transistor outputs (sourcing or sinking, model specific).

• Number of Channels: High-density configuration, commonly 16 or 32 channels per module.

• Output Current per Channel: Typically 0.5A to 2.0A, with a defined total module current limit.

• Switching Frequency: Designed for standard industrial switching duties.

• Protection Features: Includes short-circuit protection, overload protection, and diagnostics for open-circuit/wire-break detection on each channel.

• Isolation: Channel-to-channel and channel-to-backplane isolation for safety and noise immunity.

• Communication: Interfaces via the S800 I/O bus to a communication interface (e.g., CI871) which connects to the 800xA controller.

• Diagnostic LEDs: Per-channel status indicators (OK, Error) and module status LEDs.

Key Advantages and Features

The ABB DO630 digital output module provides several significant benefits for system design and maintenance:

• High Density and Space Efficiency: Packing a large number of outputs into a single module reduces cabinet footprint, wiring complexity, and overall hardware costs.

• Advanced Diagnostic Capabilities: Comprehensive per-channel diagnostics allow for rapid fault localization, enabling predictive maintenance and minimizing downtime—a core strength of the S800 I/O system that includes the ABB DO630.

• Hot Swappability: Modules can be replaced without powering down the entire S800 I/O station, a critical feature for maintaining high system availability in continuous process plants.

• Seamless 800xA Integration: Configuration and parameterization are managed entirely within the ABB System 800xA engineering environment, ensuring data consistency from field signal to operator screen.

• Rugged and Reliable Design: Built to meet stringent industrial standards for temperature, humidity, vibration, and electromagnetic compatibility (EMC), guaranteeing long-term reliability.

• Flexible Configuration: Output behavior on fault (e.g., hold last state, go to predefined safe state) can often be configured per channel or per module.

Application Cases in Industry

This module is deployed across a wide spectrum of industries requiring precise discrete control:

• Chemical & Pharmaceutical Processing: Controlling motorized valves for batch processes, activating pumps, and managing sequence control for reactors and mixers.

• Oil & Gas Production and Refining: Operating shutdown valves, fire & gas system actuators, and turbine auxiliary controls.

• Power Generation: Managing actuator positions for fuel and feedwater systems, and controlling auxiliary motors for fans and pumps.

• Water & Wastewater Treatment: Automating sluice gates, pump control, and valve sequencing for filtration and distribution systems.

• Pulp & Paper Manufacturing: Controlling drives, clutches, and actuators on paper machines and material handling lines.

Comparison with Competing Products

When evaluated against other PLC digital output modules, the ABB DO630 is distinguished by its ecosystem integration:

• Vs. Standard PLC Rack Modules (e.g., Siemens SM322, Rockwell 1756-OB16): These are designed for general-purpose automation. The ABB DO630 is optimized for the high-availability, process-focused System 800xA architecture. It offers deeper diagnostic integration and hot-swap features that are often optional or unavailable in standard PLC modules.

• Vs. Other Distributed I/O Modules (e.g., Emerson DeltaV DIO, Yokogawa FIO): Competes directly in the process automation DCS I/O market. The ABB DO630’s advantage lies in the extensive functionality and scalability of the overarching 800xA system, including its superior asset management and information integration capabilities.

• Value Proposition: Its value is not as a standalone component but as an integral, fully certified part of the ABB Ability™ System 800xA, delivering unmatched diagnostic depth, engineering efficiency, and operational availability for large-scale, critical processes.

Selection Suggestions and Precautions

Selecting and implementing the ABB DO630 requires careful system planning:

1. Confirm Exact Variant: Verify the specific suffix or article number, as the “DO630” base number may have variants for different voltage levels (e.g., 24VDC, 120VAC) and output types (sourcing vs. sinking). The product page for the ABB DO630 should specify this.

2. Calculate Load Currents: Ensure the total current draw of all connected devices does not exceed the per-channel and total module current limits. Consider inrush currents for inductive loads like solenoid coils.

3. Proper External Protection: While the module has internal protection, external fusing or circuit breakers for each channel or group of channels are often required by electrical standards and for enhanced safety.

4. Use Correct S800 Base Unit and Communication Interface: The DO630 module must be installed in the correct S800 I/O base unit (e.g., TB840) which is connected to a communication interface module (e.g., CI871) compatible with the controller network.

5. Configuration in 800xA: The module must be properly configured within the Control Builder M or 800xA Engineering workplace. This includes assigning the correct process tags, defining diagnostic alarm behaviors, and setting fault states.
