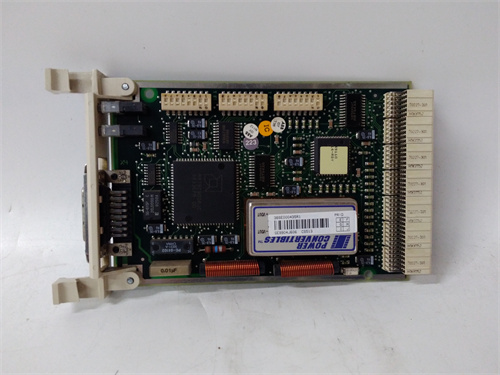

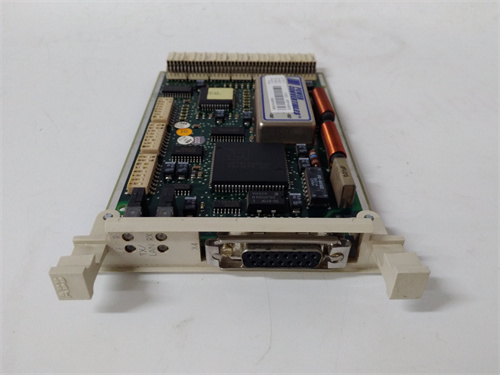

ABB CS513 3BSE000435R1

Description

Introduction to the ABB CS513 3BSE000435R1

Product Description

The ABB CS513 3BSE000435R1 is a robust and intelligent I/O module from ABB’s AC 800M high-performance controller family, which is a core component of the System 800xA or Compact Product Suite. This module is specifically the Controller Sync & I/O Link Master, playing a dual role in the system architecture. First, it manages the high-speed, deterministic I/O communication link (S800 I/O Bus) to a cluster of remote S800 I/O units, ensuring reliable and fast data exchange. Second, it enables controller-to-controller synchronization and peer-to-peer communication in multi-CPU configurations, which is essential for large, distributed, or redundant control systems. The ABB CS513 is a critical piece for building scalable and high-availability automation solutions.

Product Parameters

• Product Series: ABB AC 800M High Performance Controller (System 800xA)

• Model: CS513

• Article Number: 3BSE000435R1

• Device Type: Controller Synchronization & I/O Link Master Module

• Primary Function 1: Master module for the S800 I/O Bus, connecting to and managing a cluster of S800 I/O units.

• Primary Function 2: Provides peer-to-peer communication (Publish/Subscribe) and synchronization between multiple AC 800M controllers.

• Communication Ports: Features multiple, redundant communication interfaces, typically including ports for the I/O link and for inter-controller synchronization (e.g., CEX-bus).

• I/O Capacity: Supports a defined maximum number of S800 I/O units on its link.

• Redundancy Support: Integral to building redundant controller and I/O system configurations.

• Mounting: Plugs into a dedicated slot in the AC 800M controller unit or its expansion base.

Advantages and Features

The primary advantage of the ABB CS513 3BSE000435R1 is its ability to create a powerful, distributed, and fault-tolerant I/O architecture. It provides deterministic, high-speed communication with remote I/O, reducing wiring costs and allowing I/O to be placed close to field devices. Its peer-to-peer communication enables efficient data sharing between controllers without burdening the main control network, facilitating complex multi-controller applications. The module is designed for high reliability and is a foundational component for implementing controller redundancy (hot standby), which maximizes system availability. Its deep integration within the AC 800M and System 800xA environment ensures seamless configuration and diagnostics through ABB’s engineering tools.

Application Cases in Industry

This module is deployed in large, complex, or mission-critical process control applications. In oil and gas facilities, it enables the distributed control of offshore platforms or large refineries with multiple controller sections. Within chemical and petrochemical plants, the ABB CS513 is used to build redundant control systems for continuous reactors and large distillation units. In power generation, it supports multi-controller setups for managing boiler control, turbine control, and balance-of-plant systems as a cohesive unit. It is also essential in pulp and paper mills and water management networks where system scalability and high availability are required.

Comparison with Competing Products

Competing products include communication and I/O master modules from other DCS vendors like Emerson (DeltaV CHARM I/O Card), Honeywell (Experion C300 with FIO), and Siemens (SIMATIC PCS 7 ET 200M interface). The ABB CS513 3BSE000435R1 distinguishes itself through its specific architecture that tightly couples remote I/O management with advanced inter-controller communication in a single module. Compared to simple remote I/O adapters, it offers the additional layer of controller synchronization, which is a higher-level function for system scalability. Its value is most pronounced within the ABB ecosystem, where it provides a proven and optimized method for building large, high-performance, and redundant control systems.

Selection Suggestions and Precautions

Selecting the ABB CS513 3BSE000435R1 is dictated by the system architecture design. It is required when using S800 remote I/O with an AC 800M controller and is mandatory for creating a redundant controller pair or for multi-controller peer-to-peer communication. The system design must account for the maximum number of I/O units and cable length supported by the module’s I/O link. The module must be compatible with the specific AC 800M CPU model and base unit.

Precautions:

• System design, including network topology and redundancy configuration, must be carefully planned by a system engineer familiar with AC 800M architecture.

• The module must be installed in the correct slot as defined by the controller’s hardware configuration.

• Cabling for the I/O link and synchronization bus must follow ABB’s specifications regarding cable type, termination, and maximum length to ensure communication integrity.

• Firmware versions of the CS513, the controller CPU, and the connected S800 I/O units must be compatible.

• Configuration, especially for peer-to-peer communication and redundancy, is complex and must be performed correctly using Control Builder M.
