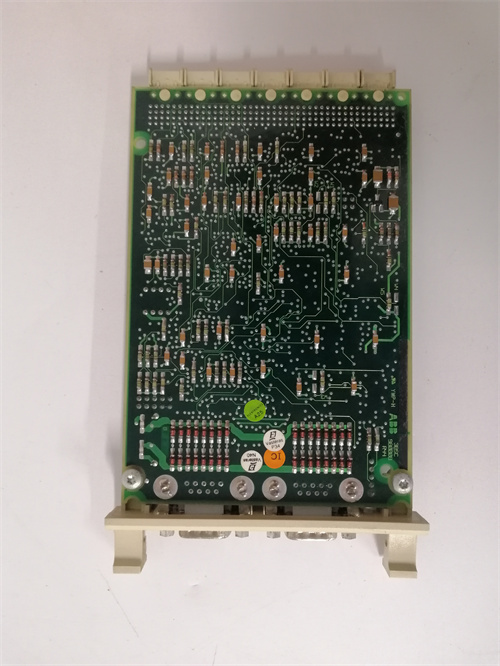

ABB CI534V02 3BSE010700R1

Description

Product Description

The ABB CI534V02 3BSE010700R1 is a high-performance communication interface module designed as a key component for ABB’s industrial automation systems, specifically for the AC 800M controller family and S800 I/O systems within ABB’s System 800xA DCS architecture. The “CI” designation stands for Communication Interface, indicating its primary function in enabling data exchange between control system components. The core function of the ABB CI534V02 is to provide connectivity between ABB controllers and fieldbus networks, particularly Profibus DP. It serves as a master or slave device on Profibus networks, allowing the AC 800M controller to communicate with distributed I/O stations, drives, intelligent sensors, and other field devices. The “V02” designation represents a specific version or revision of the base CI534 module. Engineered for demanding industrial environments, the ABB CI534V02 features robust construction, comprehensive diagnostic capabilities, and reliable performance over a wide operating temperature range.

Product Parameters

• Model Number: ABB CI534V02 3BSE010700R1

• Type: Communication Interface Module (Profibus DP)

• Series: ABB AC 800M / S800 I/O (System 800xA)

• Function: Profibus DP communication between controller and field devices

• Protocol Support: Profibus DP-V0, DP-V1

• Transmission Speed: 9.6 kbit/s to 12 Mbit/s (auto-detecting)

• Operation Modes: Master or Slave (configurable)

• Station Addressing: Configurable via software or switches

• Isolation: Galvanic isolation between fieldbus and internal electronics

• Diagnostics: Comprehensive self-diagnostics with LED status indicators

• Indicators: Front-panel LEDs for power, communication activity, module status, and bus fault

• Power Supply: +5 VDC from backplane

• Mounting: In S800 I/O mounting base (TU8xx series) on DIN rail

• Connectors: 9-pin D-sub female for Profibus DP interface

• Operating Temperature: 0°C to 60°C

• Certification: CE, UL, CSA, ATEX (for hazardous area installation when properly housed)

Advantages and Features

The primary advantage of the ABB CI534V02 lies in its seamless integration with ABB’s System 800xA ecosystem while providing open connectivity to Profibus DP networks. Using the ABB CI534V02, engineers can connect ABB AC 800M controllers to a wide variety of field devices from different manufacturers, making the system open and flexible. The module supports both master and slave modes, allowing it to be used in various network architectures. The “V02” version of the ABB CI534V02 offers specific enhancements and features compared to earlier versions. Comprehensive diagnostic features provide detailed information about network health and communication status, accessible through ABB’s engineering tools. The module’s robust design ensures reliable operation in industrial environments with vibration, temperature extremes, and electrical noise. Hot-swapping capability allows replacement without disturbing fieldbus communication in properly configured systems.

Application Cases in Application Fields

The ABB CI534V02 finds essential application across various process and hybrid industries requiring reliable Profibus DP connectivity.

• Chemical Processing: In a continuous chemical plant, the ABB CI534V02 connects remote I/O racks located near reactor vessels to a central AC 800M controller via Profibus DP, enabling precise monitoring of temperatures and pressures while reducing long analog cable runs.

• Oil and Gas Production: On an offshore platform, the ABB CI534V02 enables communication to wellhead I/O, ensuring critical process data is transmitted reliably to the main control system.

• Water and Wastewater Treatment: For a large municipal water treatment facility, the ABB CI534V02 allows the central SCADA system to communicate with remote pump stations via Profibus DP.

• Pharmaceutical Manufacturing: In a validated pharmaceutical facility, the ABB CI534V02 ensures deterministic communication between the control system and critical process I/O.

• Mining and Minerals Processing: On conveyor systems spanning kilometers, the ABB CI534V02 enables distributed I/O for emergency stops and belt monitoring devices.

Comparison with Competing Products

When compared to similar Profibus DP interface modules such as the Siemens ET 200M IM153-2 or the Rockwell Automation 1794-ACN15, the ABB CI534V02 offers distinct advantages for users invested in ABB’s System 800xA ecosystem. While Siemens modules excel in SIMATIC environments, the ABB CI534V02 provides tighter integration with ABB’s engineering tools and asset management software. Compared to generic Profibus DP slave devices, the ABB CI534V02 offers superior diagnostic capabilities and seamless configuration through ABB’s Control Builder software. Its ability to work with both standard and intrinsically safe I/O modules gives the ABB CI534V02 flexibility in facilities with mixed hazardous area requirements.

Selection Suggestions and Precautions

When selecting the ABB CI534V02 for your project, first verify compatibility with your specific S800 I/O mounting bases (TU8xx series) and your Profibus master class. Ensure that the firmware version of the ABB CI534V02 matches your control system requirements. Proper termination of the Profibus network is critical when installing the ABB CI534V02; ensure correct station addressing and that bus terminators are enabled at physical ends of network segments. When configuring the ABB CI534V02 in your engineering software, pay careful attention to Profibus baud rate settings and GSD file compatibility. Always observe proper grounding and shielding practices to prevent communication errors caused by electromagnetic interference. Before commissioning, perform complete communication testing to verify correct data exchange between the ABB CI534V02 and the Profibus master. Finally, maintain current documentation of the ABB CI534V02 configuration to support troubleshooting and future expansion.
