Description
Parameters & Specifications:
Brand: ABB.
Model Number: 5SHY35L4520.
Peak Off-State Voltage (V DRM): 4500V.
Rated Current (I TGM): 4000A.
Permanent DC Voltage for 100 FIT Failure Rate (V DC): 2800V.
Dimensions & Weight:
Product Size: 36mm x 58mm x 74mm (length x width x height).
Product Weight: Approximately 1.85kg.
Features:
High Power Density: Designed for high-power applications, providing efficient energy conversion.
High Voltage Capability: Supports high-voltage circuits commonly used in power electronic equipment and high-voltage inverters.
High Reliability: Features advanced packaging and cooling design for stable and reliable performance.
Low Losses: Offers low conduction and turn-off losses, enhancing system efficiency and reducing energy consumption.
High-Frequency Characteristics: Possesses a high switching frequency, suitable for high-frequency applications.
Simplified Drive: Integrated drive circuit simplifies the design and control of external drive circuits.
Protection Functions: Incorporates various protection features like over-current, over-temperature, and over-voltage protection for safe and secure operation.
Applications & Functions:

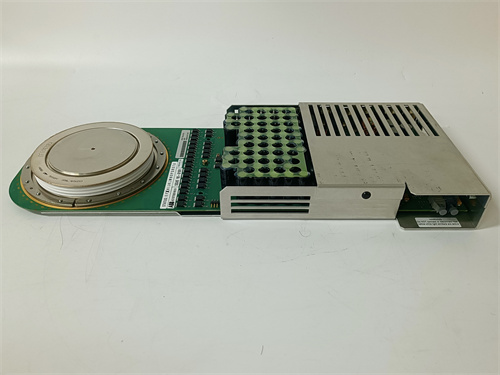

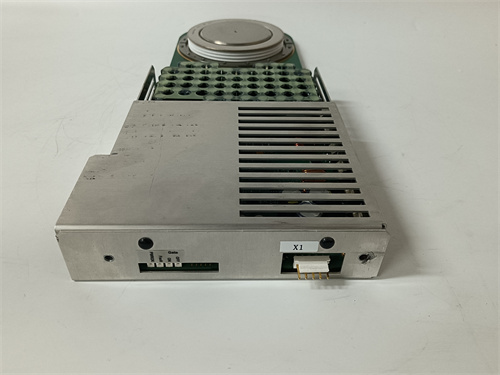

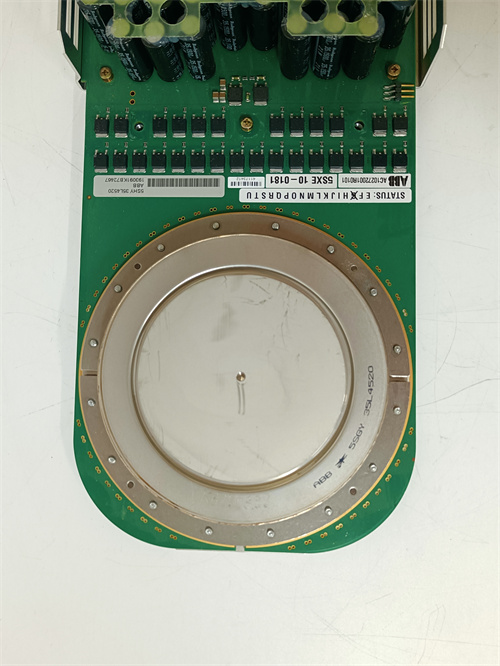

The 5SHY35L4520 IGCT module is widely used in high-power power supplies, motor control, and inverter systems.
It is suitable for medium to high-voltage applications where precise and reliable control of electric power is essential.
The module is a key component in industrial automation systems, enabling efficient energy conversion and control in various processes and equipment.
