ABB 5SHX2645L0004 3BHL000389P0104 3BHB003154R0101 5SXE04-0150/GVC707AE01

Description

Product Description

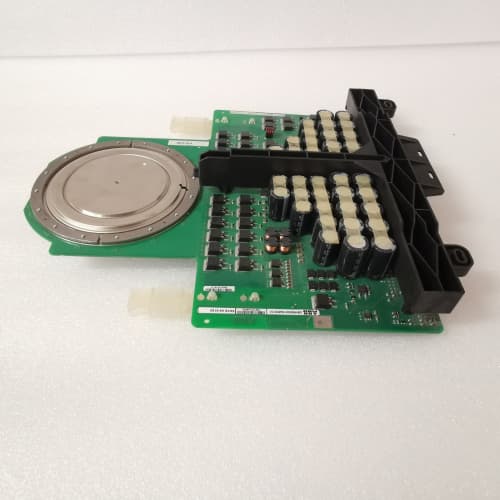

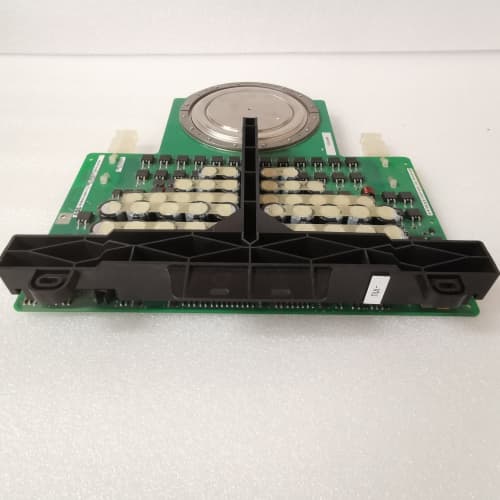

This listing refers to a critical high-power semiconductor component assembly within an ABB ACS 6000 or similar medium-voltage drive system. Specifically, the ABB 5SHX2645L0004 is an Integrated Gate-Commutated Thyristor (IGCT) power stack, which forms the heart of the inverter or converter section. The accompanying part numbers (3BHL000389P0104, 3BHB003154R0101, 5SXE04-0150, GVC707AE01) likely represent the complete functional assembly, including the IGCT device itself, its associated gate drive unit (GDU), heatsink, and possibly snubber or clamping circuits. The 5SHX2645L0004.is not a PLC spare part but a mega-watt scale power electronics module essential for converting DC link voltage to variable frequency AC to control large motors (e.g., compressors, fans, pumps) in the multi-megawatt range. Its failure or maintenance requires a complete, trained replacement of this entire high-voltage, high-current assembly

Technical Parameters and Specifications

• Component Type: IGCT (Integrated Gate-Commutated Thyristor) Power Stack / Phase Leg Assembly.

• Part of System: ABB ACS 6000 Series, ACS 5000, or other IGCT-based Medium Voltage Drives.

• Voltage Class: Designed for medium voltage applications, typically corresponding to a specific DC link or line voltage (e.g., 3300V, 4160V, 6600V class).

• Current Rating: Rated for continuous and surge current in the range of hundreds to thousands of Amperes.

• Assembly Includes: The core IGCT semiconductor, its proprietary Gate Drive Unit (GDU), voltage and current sensors, heatsink interface, and auxiliary power and fiber-optic signal connections.

• Cooling: Requires forced air or liquid cooling as per the drive cabinet design. The assembly is mounted onto a cooling manifold.

• Communication/Control: The GDU (GVC707AE01 is a typical GDU part number) communicates with the drive’s controller via fiber-optic cables for precise, isolated firing commands and receives status feedback.

• Protection: The assembly includes integrated protection for over-current, over-voltage, and di/dt or dv/dt stress.

Advantages and Key Features

• Extreme Power Density and Reliability: The ABB 5SHX2645L0004 IGCT technology offers very high power handling in a relatively compact package, with robust short-circuit capability and high reliability, which is paramount for critical process drives.

• Low Switching Losses: Compared to older GTO thyristors, IGCTs have significantly lower switching losses, improving the overall efficiency of the high-power drive, especially at higher switching frequencies.

• Integrated Gate Drive: The GVC707AE01 Gate Drive Unit is matched and hard-wired to the IGCT, ensuring optimal switching characteristics, protection, and diagnostics. This integration is a key feature of the 5SHX2645L0004 assembly.

• Simplified Replacement: While complex, the entire assembly is designed as a replaceable unit. Swapping the complete 5SHX2645L0004 stack (including GDU) minimizes on-site troubleshooting of individual semiconductor or driver components.

• Comprehensive Diagnostics: The GDU provides detailed diagnostic feedback to the drive’s main control system (e.g., an ABB AC 800M controller), enabling predictive maintenance by monitoring device temperature, gate unit health, and switch counts.

Application Cases in Various Fields

• Oil & Gas (Gas Compression): Used in the main drive for a centrifugal compressor on an offshore platform or pipeline, where the ABB 5SHX2645L0004 inverter section controls the compressor speed for optimal gas flow. Reliability is non-negotiable.

• Mining (Grinding Mills & Conveyors): Powering the large synchronous or induction motor of a semi-autogenous (SAG) grinding mill. The high torque and power capability of the drive using this IGCT assembly are essential.

• Chemical Processing (Large Reactor Feed Pumps): Driving multi-megawatt pumps that feed reactors at high pressure. The variable speed control enabled by this assembly improves process efficiency and control.

• Metals (Hot Strip Mill Drives): Used in the main roll drives of a steel mill, where high dynamic performance and power are required to roll red-hot steel slabs.

Comparison with Competing Products

This assembly competes with other high-power semiconductor technologies in large drives:

• Vs. IGBT Stacks (e.g., Siemens, GE): IGBTs are common in lower MV drives. The 5SHX2645L0004 IGCT typically offers lower conduction losses at very high currents and higher inherent short-circuit ruggedness, making it favored for the highest power and most demanding applications. IGBTs may have simpler gate drives.

• Vs. Other IGCT/GTO Vendors: Mitsubishi and Hitachi also produced GTO/IGCT devices. The ABB 5SHX2645L0004 is part of ABB’s proprietary and vertically integrated drive system. Competing assemblies are not interchangeable.

• Architectural Difference: The tight integration of the IGCT and its GVC707AE01 GDU is a specific ABB design philosophy. Competitors’ power stacks may separate the semiconductor and gate driver more distinctly.

• Service and Support: A key differentiator is ABB’s global service network for these specialized components, offering repair/exchange programs for the 5SHX2645L0004 assembly, which is critical given its high value and application criticality.

Selection Suggestions and Precautions

EXTREME CAUTION: This component operates at lethal medium voltage. Only qualified high-voltage technicians should handle it.

1. Exact Replacement Verification: This is not a generic part. The 5SHX2645L0004 assembly must match the drive’s model, voltage, current rating, and physical configuration exactly. Use the drive’s serial number and existing part markings to order. Substitution can cause catastrophic failure.

2. De-energize and Discharge Completely: Before any work, the drive MUST be isolated from all power sources (AC and DC), and the DC link capacitors must be fully discharged using verified procedures. Stored energy can be lethal.

3. Procedure-Driven Replacement: Follow the ABB field service manual for the specific drive model to the letter. This includes precise torque sequences for power connections, handling of fiber-optic cables, and application of thermal paste.

4. Gate Drive Unit (GDU) Handling: The GVC707AE01 GDU is sensitive to electrostatic discharge (ESD). Use proper ESD precautions. Never disconnect the GDU from the IGCT unless specified, as they are a matched pair.

5. Cooling System Integrity: Upon reinstallation, ensure the cooling path (airflow or liquid) to the assembly’s heatsink is completely clean and reconnected. Overheating will destroy the new 5SHX2645L0004 assembly rapidly.

6. Commissioning and Testing: After replacement, the drive must undergo a controlled commissioning sequence, including diagnostic tests of the new power stack, before applying full power to the motor. Do not bypass these steps. Consider a professional ABB service contract for this task.
