Description

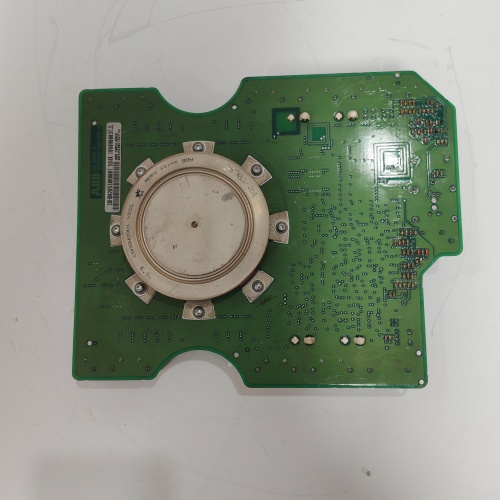

The ABB 5SGY3545L0017 is a high-performance gate drive unit designed for controlling high-power IGBT modules in medium-voltage industrial applications. As a critical control interface component from ABB, this unit provides the essential isolation, amplification, and protection functions required to safely and efficiently operate IGBT power semiconductors. The ABB 5SGY3545L0017 is engineered to meet the demanding requirements of industrial drives and power conversion systems, offering reliable, high-speed switching with comprehensive fault protection.
Product Parameters
The ABB 5SGY3545L0017 is manufactured to precise specifications for high-power IGBT gate drive applications. It features galvanic isolation between the low-voltage control electronics and the high-voltage IGBT gate, typically utilizing fiber optic or pulse transformer isolation to withstand high voltage differentials. The unit provides adjustable gate drive voltage and current capability optimized for the specific IGBT module it controls, ensuring fast, clean switching transitions. The ABB 5SGY3545L0017 incorporates multiple protection features, including desaturation detection for short-circuit protection, active clamping for overvoltage limitation, and under-voltage lockout to prevent IGBT operation with insufficient gate drive. It includes status monitoring and fault feedback capabilities, communicating with the main controller via dedicated signal paths. The unit is housed in a rugged, encapsulated enclosure designed for reliable operation in industrial environments, with high immunity to electromagnetic interference.
Advantages and Features
The primary advantage of the ABB 5SGY3545L0017 lies in its comprehensive protection features and reliable switching performance. It provides precise, temperature-compensated gate voltage control, ensuring optimal IGBT switching characteristics across the full operating temperature range. The unit’s advanced desaturation detection circuit rapidly identifies short-circuit conditions and initiates a controlled, safe shutdown to protect the IGBT from destruction. The ABB 5SGY3545L0017 includes active clamping circuitry that limits collector-emitter voltage during turn-off of overcurrent conditions, preventing IGBT failure due to overvoltage. Its fiber optic interface provides complete electrical isolation and excellent noise immunity, enabling reliable communication even in electrically noisy drive cabinets. The unit’s compact, self-contained design simplifies integration into power stacks, while its diagnostic outputs enable continuous monitoring of gate drive health for predictive maintenance.
Application Cases in Application Fields
The ABB 5SGY3545L0017 is extensively deployed in medium-voltage industrial drive systems requiring reliable IGBT switching. In mining applications, it controls IGBT modules in hoist drives and crusher motors, providing the precise switching required for smooth, efficient operation of high-power equipment. The ABB 5SGY3545L0017 is widely used in cement industry applications, driving IGBTs in mill and kiln variable frequency drives for reliable, continuous operation in dusty environments. In metals processing, this unit enables precise control of IGBTs in rolling mill main drives and ancillary equipment. Marine propulsion systems utilize the ABB 5SGY3545L0017 for reliable gate drive in thruster and main propulsion drives, where failure could compromise vessel maneuverability. Power generation applications, including pumped storage and wind power, rely on the module for IGBT control in grid interconnection systems.
Comparisons with Competitor Products
When compared to gate drive units from other power semiconductor manufacturers, the ABB 5SGY3545L0017 offers specific advantages in integration and protection features. Against Concept’s IGBT gate drivers, the ABB unit typically provides more comprehensive protection algorithms specifically optimized for ABB’s IGBT modules. Compared to Infineon’s EiceDRIVER products, the ABB 5SGY3545L0017 features more robust mechanical construction and better environmental sealing for harsh industrial applications. The unit’s tight integration with ABB’s IGBT modules ensures optimized switching performance that may not be achievable with general-purpose gate drives. While competitive products may offer similar basic functionality, the ABB 5SGY3545L0017 provides the assurance of validated compatibility and comprehensive system integration essential for maintaining ABB drive reliability.
Selection Suggestions and Precautions
When selecting the ABB 5SGY3545L0017 for your application, careful consideration must be given to your specific IGBT module and system requirements. Verify that the gate drive unit is compatible with your specific IGBT module type, including voltage rating, current rating, and gate charge characteristics. Confirm that the isolation voltage rating exceeds the requirements of your application with adequate safety margin. The ABB 5SGY3545L0017 should be selected based on your system’s switching frequency requirements, ensuring that the drive unit’s capabilities match your operating frequency. Consider the mechanical mounting requirements, including proper heatsinking if required, and ensure adequate clearance for high-voltage isolation. The interface compatibility with your main controller must be verified, including signal levels, timing requirements, and fault handling protocols. It is essential to source from authorized distributors like the link provided to guarantee authentic ABB components with proper factory configuration and warranty coverage. During installation, follow strict ESD precautions and ABB’s guidelines for mechanical mounting, electrical connections, and high-voltage safety to ensure reliable, safe operation of your ABB 5SGY3545L0017 gate drive unit.
