ABB 3HAB3700-1

Description

Product Description

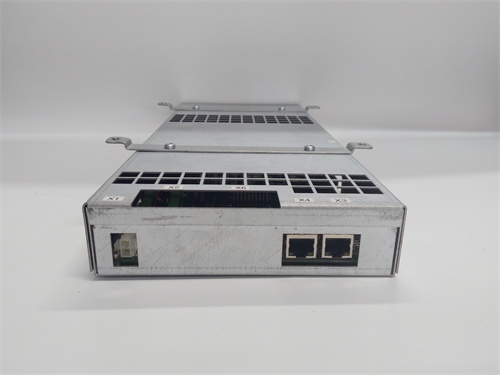

The ABB 3HAB3700-1 is a specialized input/output module designed for use in ABB’s industrial robot control systems, particularly within the S4 and S4C controller families. This module serves as a critical interface between the robot controller and external devices, enabling communication with sensors, actuators, and other peripheral equipment. The 3HAB3700-1 provides both digital and analog I/O capabilities, allowing the robot system to interact with its environment for tasks such as part presence detection, gripper control, and process monitoring. As an original ABB product, this module guarantees high reliability and full compatibility with ABB’s robot controllers, ensuring precise and dependable robot operation.

Product Parameters and Specifications

The ABB 3HAB3700-1 is characterized by its versatile I/O configuration and robust industrial design. Below are the typical specifications for this model:

• Device Type: I/O module for ABB S4/S4C robot controllers.

• Digital Inputs: Multiple channels for 24V DC discrete signals from sensors, pushbuttons, and limit switches.

• Digital Outputs: Multiple channels for 24V DC discrete outputs to control relays, solenoids, and indicator lights.

• Analog Inputs: Select channels for analog signals (typically 0-10V or 4-20mA) from process sensors.

• Isolation: Optical isolation between field circuits and controller logic for noise immunity.

• Diagnostics: Status LEDs for power and I/O channel indication.

• Mounting: Plugs directly into the robot controller cabinet, connects via backplane or ribbon cable.

Advantages and Features

Integrating the ABB 3HAB3700-1 into your robot system provides significant operational advantages. Its primary feature is the direct compatibility with ABB’s S4/S4C robot controllers, ensuring seamless integration without complex configuration. The module provides a combination of digital and analog I/O in a single unit, simplifying wiring and reducing the need for multiple separate modules. The 3HAB3700-1 is designed to withstand the rigors of industrial robot applications, including vibration, electrical noise, and temperature variations. Its plug-in design allows for quick replacement in case of failure, minimizing robot downtime. Using original ABB I/O modules ensures that all signals are correctly interpreted by the robot control software, maintaining precise robot operation.

Application Fields and Use Cases

The ABB 3HAB3700-1 is extensively deployed in manufacturing facilities operating ABB industrial robots with S4 or S4C controllers. Common application fields include:

• Automotive Manufacturing: Connecting part presence sensors, controlling grippers, and monitoring weld gun operation in body shop and assembly applications.

• Material Handling: Interfacing with conveyor systems, palletizers, and end-of-arm tooling sensors.

• Packaging: Controlling pick-and-place operations, monitoring product flow, and synchronizing with packaging machinery.

• Machine Tending: Communicating with CNC machines, lathes, and other production equipment for automated loading/unloading.

In these environments, the 3HAB3700-1 serves as the robot’s sensory and control interface to the surrounding automation system.

Comparison with Competing Products

When compared to general-purpose industrial I/O modules that might be adapted for robot control, the ABB 3HAB3700-1 distinguishes itself through its specific design for ABB’s robot controller architecture. While universal I/O modules could potentially interface with a robot via fieldbus, the 3HAB3700-1 connects directly to the controller’s internal bus, providing faster response times and simpler integration. The module is specifically mapped into the robot’s I/O addressing scheme, making programming straightforward in ABB’s RAPID language. For facilities with ABB robots, using original 3HAB3700-1 modules ensures that all diagnostic functions and safety features work as intended.

Selection Suggestions and Precautions

When selecting the ABB 3HAB3700-1 for your robot system, first verify that it matches your specific S4/S4C controller version and the required I/O count for your application. Confirm that the module’s input/output types (voltage levels, current ratings) are compatible with your field devices. Before installation, inspect the module for any physical damage to connectors or components. When handling the 3HAB3700-1, follow proper ESD precautions. Ensure the robot controller is powered down before installing or removing the module. For the ABB 3HAB3700-1, proper wiring practices are essential; use shielded cables for analog signals and maintain segregation from power cables. Configure the I/O mapping in the robot’s software according to your application requirements. Always source genuine ABB 3HAB3700-1 modules from authorized distributors or reputable automation suppliers to guarantee authenticity. Given the critical role of I/O in robot applications, stocking a spare module for essential production cells is a prudent measure to minimize downtime.
